Specifications
Brand Name :
PR
Model Number :
PR 9202B
Certification :
CO
Place of Origin :
Denmark
MOQ :
1
Price :
150-300usd
Payment Terms :
T/T
Supply Ability :
99pcs 4-6 weeks
Delivery Time :
5-7 work days
Connectiontype :
1/4 inch NPT, G1/2
Powersupply :
24 V DC
Material :
Stainless Steel
Accuracy :
±0.5% FS
Protectionrating :
IP65
Displaytype :
LCD Digital Display
Calibration :
Factory Calibrated
Application :
Industrial Process Control, HVAC, Hydraulic Systems
Responsetime :
≤ 1 second
Operatingtemperature :
-20°C to 80°C
Measurementrange :
0 to 1000 psi
Mountingtype :
Panel Mount, Wall Mount
Pressuretype :
Gauge, Absolute, Differential
Productname :
Pressure Measurement Instruments
Outputsignal :
4-20 mA, 0-10 V, Digital
Description

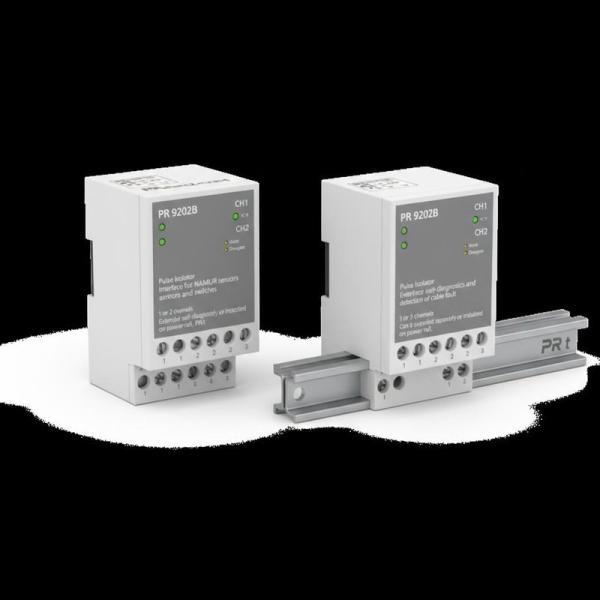

Pulse Isolator PR 9202B
Advanced interface for NAMUR sensors and switches with extended self-diagnostics and cable fault detection. Available in 1 or 2 channel configurations. Can be supplied separately or installed on power rail PR.
Environmental Conditions
Operating temperature -20°C to +60°C
Storage temperature -20°C to +85°C
Calibration temperature 20...28°C
Relative humidity < 95% RH (non-condensing)
Protection degree IP20
Installation in Pollution degree 2 & measurement / overvoltage category II
Mechanical Specifications
Dimensions (HxWxD) 109 x 23.5 x 104 mm
Dimensions (HxWxD) with PR 4500 109 x 23.5 x 131 mm
Weight approx. 170 g
DIN rail type DIN EN 60715/35 mm
Wire size 0.13...2.08 mm² AWG 26...14 stranded wire
Screw terminal torque 0.5 Nm
Vibration IEC 60068-2-6
2...13.2 Hz: ±1 mm
13.2...100 Hz: ±0.7 g
Electrical Specifications
Supply
Supply voltage 19.2...31.2 VDC
Fuse 400 mA SB / 250 VAC
Max. required power ≤ 1.1 W...≤ 1.3 W / ≤ 1.5 W...≤ 1.9 W (1 / 2 channel)
Max. power dissipation, 1 / 2 channel ≤ 1.2 W / ≤ 1.6...1.8 W
Isolation Voltage
Test/working: Input to any 2.6 kVAC / 300 VAC reinforced isolation
Analog output to supply 2.6 kVAC / 300 VAC reinforced isolation
Output 1 to output 2 1.5 kVAC / 150 VAC reinforced isolation
Status relay to supply 1.5 kVAC / 150 VAC reinforced isolation
Auxiliary Supplies
NAMUR supply 8 VDC / 8 mA
Programming PR 4500 communication interfaces
Response time for cable fault < 200 ms
Input Specifications
Sensor types NAMUR according to EN 60947-5-6 / mechanical contact
Frequency range 0...5 kHz
Min. pulse length > 0.1 ms
Input resistance Nom. 1 kΩ
Trigger level, signal < 1.2 mA, > 2.1 mA
Trigger level, cable fault < 0.1 mA, > 6.5 mA
Output Specifications
Relay Output
Max. switching frequency 20 Hz
Max. voltage 250 VAC / 30 VDC
Max. current 2 AAC / 2 ADC
Max. AC power 500 VA / 60 W
Status Relay
Max. voltage 125 VAC / 110 VDC
Max. current 0.5 AAC / 0.3 ADC
Max. AC power 62.5 VA / 32 W
NPN Output
Max. switching frequency 5 kHz
Min. pulse length > 0.1 ms
Max. load, current / voltage 80 mA / 30 VDC
Max. voltage drop at 80 mA 2.5 VDC
Compliance & Certifications
Authority Requirements
LVD 2014/35/EU & UK SI 2016/1101
EMC 2014/30/EU & UK SI 2016/1091
ATEX 2014/34/EU & UK SI 2016/1107
RoHS 2011/65/EU & UK SI 2012/3032
EAC TR-CU 020/2011
EAC Ex TR-CU 012/2011
EAC LVD TR-CU 004/2011
Approvals
ATEX KEMA 07ATEX0146 X
IECEx KEM 06.0039X
UKEX DEKRA 21UKEX0179X DEKRA 23UKEX0105X
FM US FM19US0055X / FM19CA0028X
INMETRO DEKRA 23.0007X
UL US, UL 61010-1 E314307
UL US, UL 913 E233311 (only 9202xxx-U9)
CCC 2020322309003424
KCs 21_AV4BO_0179X / 21_AV4BO_0180X (only 9202Bxx-KCs)
EAC Ex EAEU KZ 7500361.01.01.08756
DNV Marine TAA00000JD
ClassNK TA24034M
SIL SIL 2 certified & fully assessed according to IEC 61508
