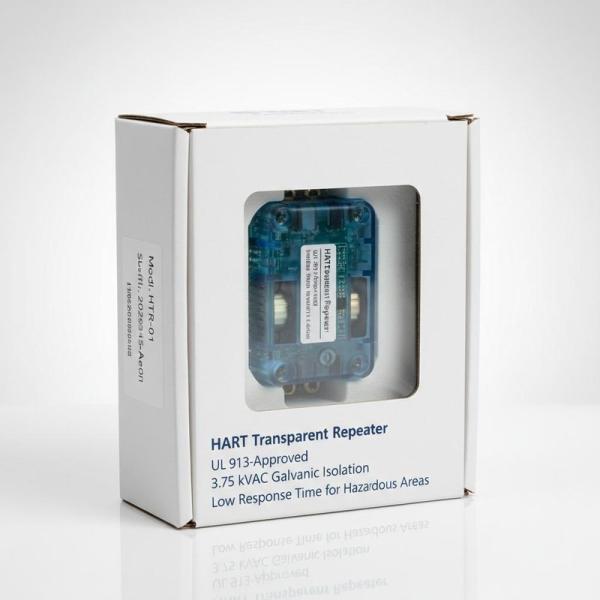

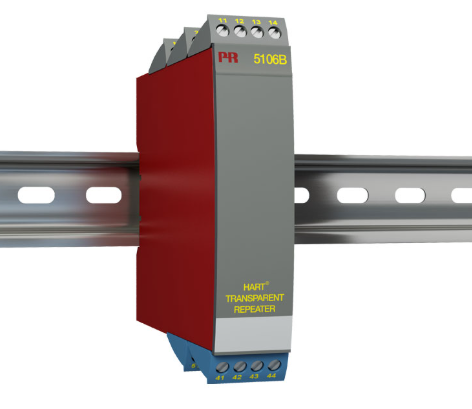

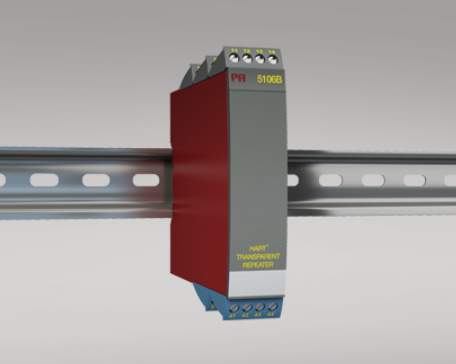

PR 5106B-U9HART Transparent Repeater 3.75 KVAC Galvanic Isolation Low Response Time
PR 5106B-U9HART Transparent Repeater 3.75 KVAC Galvanic Isolation Low Response Time
PR 5106B-U9HART Transparent Repeater 3.75 KVAC Galvanic Isolation Low Response Time
PR 5106B-U9HART Transparent Repeater 3.75 KVAC Galvanic Isolation Low Response Time
PR 5106B-U9HART Transparent Repeater 3.75 KVAC Galvanic Isolation Low Response Time
PR 5106B-U9HART Transparent Repeater 3.75 KVAC Galvanic Isolation Low Response Time
PR 5106B-U9HART Transparent Repeater 3.75 KVAC Galvanic Isolation Low Response Time
PR 5106B-U9HART Transparent Repeater 3.75 KVAC Galvanic Isolation Low Response Time
Specifications
Brand Name :
PR
Model Number :
PR 5106B-U9
Certification :
CO
Place of Origin :
Denmark
MOQ :
1
Price :
200-400usd
Payment Terms :
T/T
Supply Ability :
99pcs 4-6 weeks
Delivery Time :
5-7 work days
Productname :
Intrinsic Safety Barriers
Mountingtype :
DIN Rail
Dimensions :
100mm x 22.5mm x 110mm
Operatingtemperaturerange :
-40°C to +70°C
Connectiontype :
Screw Terminal
Outputcurrent :
Max 100mA
Application :
Hazardous Area Signal Isolation and Protection
Powerdissipation :
0.5W to 1W
Responsetime :
Less than 1ms
Isolationvoltage :
2500V RMS
Housingmaterial :
Flameproof Plastic
Weight :
150g
Approvals :
IEC 60079-11
Inputvoltagerange :
12V to 250V AC/DC
Description
HART Transparent Repeater PR 5106B-U9
UL 913-approved version for US market only. Available in 3-port and 5-port configurations with 3.75 kVAC galvanic isolation.
Key Features
  • 3.75 kVAC galvanic isolation
  • Low response time (< 25 ms)
  • 2-wire supply > 17 V in I.S. area
  • 1- or 2-channel versions available
  • UL 913 approved for hazardous locations
Environmental Conditions
Operating temperature -20°C to +60°C
Calibration temperature 20...28°C
Relative humidity < 95% RH (non-condensing)
Protection degree IP20
Mechanical Specifications
Dimensions (HxWxD) 109 x 23.5 x 130 mm
Weight approx. 245 g
DIN rail type DIN EN 60715/35 mm
Wire size 0.13...2.08 mm² AWG 26...14 stranded wire
Screw terminal torque 0.5 Nm
Electrical Specifications
Power Supply
Supply voltage, universal 21.6...253 VAC, 50...60 Hz or 19.2...300 VDC
Fuse 400 mA SB / 250 VAC
Max. required power ≤ 3 W (2 channels)
Internal power dissipation ≤ 2 W (2 channels)
Isolation
Isolation voltage, test / working 3.75 kVAC / 250 VAC
PELV/SELV IEC 61140
Performance
Response time (0...90%, 100...10%) < 25 ms
Signal / noise ratio Min. 60 dB (0...100 kHz)
Accuracy Better than 0.1% of selected range
Effect of supply voltage change < ±10 μA
EMC immunity influence < ±0.5% of span
Extended EMC immunity: NAMUR NE21, A criterion, burst < ±1% of span
Auxiliary Supplies
2-wire supply (pin 44...42 and 54...52) 25...17 VDC / 0...20 mA
Input Specifications
Current Input
Measurement range 4...20 mA
Min. measurement range (span) 16 mA
Input resistance: Supplied unit Nom. 10 Ω
Input resistance: Non-supplied unit Rshunt = ∞, Vdrop < 4 V
Output Specifications
Current Output
Signal range 4…20 mA
Min. signal range 16 mA
Load (@ current output) ≤ 600 Ω
Load stability ≤ 0.01% of span / 100 Ω
Current limit ≤ 28 mA
Passive 2-wire mA Output
Signal range 4...20 mA
Max. external 2-wire supply 29 VDC
Effect of external 2-wire supply voltage variation < 0.005% of span / V
Output ripple < 3 mVRMS on HART communication
Compliance & Approvals
EMC 2014/30/EU
LVD 2014/35/EU
c UL us, UL 508 05122003-E233311
c UL us, UL 913 05122003-E233311
