AC / DC Power Supply Intrinsically Safe Barrier PR 5202B Pulse Isolator 2 Channels
AC / DC Power Supply Intrinsically Safe Barrier PR 5202B Pulse Isolator 2 Channels
AC / DC Power Supply Intrinsically Safe Barrier PR 5202B Pulse Isolator 2 Channels
AC / DC Power Supply Intrinsically Safe Barrier PR 5202B Pulse Isolator 2 Channels
AC / DC Power Supply Intrinsically Safe Barrier PR 5202B Pulse Isolator 2 Channels
AC / DC Power Supply Intrinsically Safe Barrier PR 5202B Pulse Isolator 2 Channels
AC / DC Power Supply Intrinsically Safe Barrier PR 5202B Pulse Isolator 2 Channels
AC / DC Power Supply Intrinsically Safe Barrier PR 5202B Pulse Isolator 2 Channels
Specifications
Brand Name :
PR
Model Number :
PR 5202B
Certification :
CO
Place of Origin :
Denmark
MOQ :
1
Price :
150-250usd
Payment Terms :
T/T
Supply Ability :
99pcs 4-6 weeks
Delivery Time :
5-7 work days
Inputvoltagerange :
12V to 30V DC
Productname :
Intrinsic Safety Barriers
Mountingtype :
DIN Rail Mount
Powerdissipation :
Less than 1W
Operatingtemperaturerange :
-40°C to +70°C
Outputvoltage :
Maximum 30V DC
Safetystandardscompliance :
IEC 60079-11
Weight :
Approximately 150 grams
Responsetime :
Less than 1ms
Dimensions :
100mm x 22.5mm x 110mm
Isolation :
Galvanic Isolation between input and output
Outputcurrent :
Maximum 100mA
Ingressprotectionrating :
IP20
Housingmaterial :
Flameproof Aluminum
Description

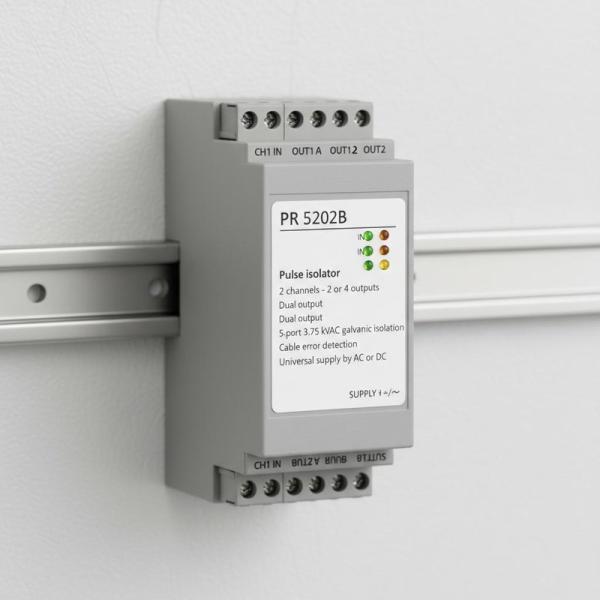

Pulse Isolator PR 5202B

2-channel pulse isolator with 2 or 4 outputs featuring dual output capability, 5-port 3.75 kVAC galvanic isolation, and cable error detection. Universal AC or DC power supply.

Key Features
  • 2 channels with 2 or 4 output configuration
  • Dual output capability
  • 5-port 3.75 kVAC galvanic isolation
  • Cable error detection system
  • Universal AC or DC power supply
Environmental Conditions
Operating temperature-20°C to +60°C
Calibration temperature20...28°C
Relative humidity< 95% RH (non-condensing)
Protection degreeIP20
Mechanical Specifications
Dimensions (HxWxD)109 x 23.5 x 130 mm
Weight approx.230 g
DIN rail typeDIN EN 60715/35 mm
Wire size0.13...2.08 mm² AWG 26...14 stranded wire
Screw terminal torque0.5 Nm
Electrical Specifications
Power Supply
Supply voltage, universal21.6...253 VAC, 50...60 Hz or 19.2...300 VDC
Supply voltage, Ex variant 5202B1, -B2, -B4 (Um)253 V
Fuse400 mA SB / 250 VAC
Max. required power≤ 1.5 W (2 channels), 5202B1 and 5202B2 ≤ 2.0 W (2 channels), 5202B4
Internal power dissipation≤ 1.5 W (2 channels), 5202B1 and 5202B2 ≤ 2.0 W (2 channels), 5202B4
Isolation
Isolation voltage, test / working3.75 kVAC / 250 VAC
PELV/SELVIEC 61140
Auxiliary Supplies
NAMUR supply8 VDC / 8 mA
ProgrammingJumpers
EMC immunity influence< ±0.5%
Extended EMC immunity: NAMUR NE21, A criterion, burst< ±1%
Input Specifications
Sensor typesNAMUR according to EN 60947-5-6 / mechanical contact
Frequency range0...5 kHz
Pulse length> 0.1 ms
Input resistance1 kΩ
Trig level, signal< 1.2 mA, > 2.1 mA
Trig level, cable fault< 0.1 mA, > 6.5 mA
Output Specifications
Relay Output
Max. switching frequency20 Hz
Max. voltage250 VRMS
Max. current2 AAC
Max. AC power100 VA
Max. load at 24 VDC1 A
NPN Output
Max. switching frequency5 kHz
Min. pulse length> 0.1 ms
Max. load, current / voltage80 mA / 30 VDC
Voltage drop at 25 mA / 80 mA< 0.75 VDC / < 2.5 VDC
Compliance & Standards
EMC2014/30/EU
LVD2014/35/EU
EACTR-CU 020/2011
EAC ExTR-CU 012/2011
Approvals & Certifications
ATEXDEKRA 20ATEX0018X
IECExDEK 24.0013X
c UL us, UL 508UL-US-L231911-11-81903002-0
c UL us, UL 913UL-US-2422982-1
EAC ExEAEU KZ 7500361.01.01.10203
CCC2026322310007185
