Compact Slip Ring for Combined Signal and Power Transmission with 48VDC and 300rpm
Compact Slip Ring for Combined Signal and Power Transmission with 48VDC and 300rpm
Compact Slip Ring for Combined Signal and Power Transmission with 48VDC and 300rpm
Compact Slip Ring for Combined Signal and Power Transmission with 48VDC and 300rpm
Specifications
Brand Name :
Panlink
Model Number :
PSR-C6-2P
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
40 Million a Year
Delivery Time :
4 Weeks
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Circuits :
2
Voltage Rating :
48VDC
Current Rating :
4A
Protection Degrre :
IP51
Housing Material :
ABS-777D
Rotating Speed :
300rpm
Description

Compact Slip Ring for Combined Signal and Power Transmission

PSR-C6-2P

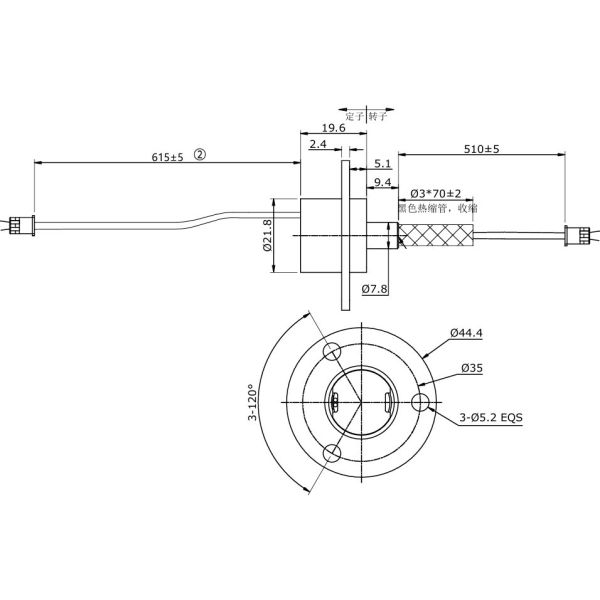

Dimensions in millimeters

Compact Slip Ring for Combined Signal and Power Transmission with 48VDC and 300rpm

Specifications

Circuits 2 for Power Transmission
Electrical Specifications
Voltage Rating 48VDC
Current Rating 4A
Insulation Resistance Max 20MΩ @ 200VDC
Dielectric Noise 200VAC @ 50Hz, 60s
Electric Noise Max 20mΩ
Lead Cable AWG20 Teflon Silver Plated
Mechanical Specifications
Working Life 5 million revolutions
Rotating Speed 300rpm
Operating Temperature -4℉ to +176℉ (-20℃ to +80℃)
Operating Humidity 0~90%RH
Contact Material Precious Metal
Housing Material ABS-777D
Protection Degree IP51(higher or lower on request)
Shock GB/T 2423.5 (IEC 60068-2-27)
Vibration GB/T 2423.10 (IEC 60068-2-6)
