4 Circuits Super Miniature Slip Ring , Low Noise Slip Ring For Lab Equipment
4 Circuits Super Miniature Slip Ring , Low Noise Slip Ring For Lab Equipment
4 Circuits Super Miniature Slip Ring , Low Noise Slip Ring For Lab Equipment
4 Circuits Super Miniature Slip Ring , Low Noise Slip Ring For Lab Equipment
Specifications
Brand Name :
Panlink
Model Number :
PSR-M4
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)

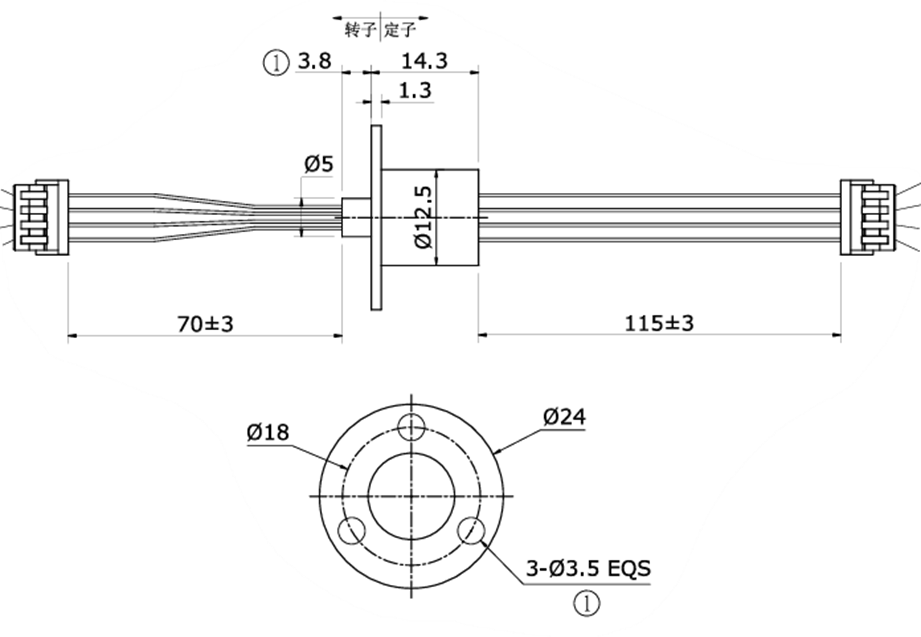

OD x L :
0.49″ x 0.56″(12.5mm x 14.3mm)
Rings :
4
Voltagr :
240VAC
Speed :
300rpm
Name :
Low Noise Slip Ring
Price :
Negotiable
Delivery Time :
4 Weeks
Supply Ability :
40 Million a Year
Description

4 circuits Super Miniature Slip Ring Transmitting Power and Signal

FeaturesApplications

• Compact for ease of incorporation in small mechanisms

• Gimbaled systems

• 4 rings with excellent signal handling properties

• UAV camera systems

• No interruption or data package loss in a very long-time

• Positioning tables

• Low electrical noise

• Laboratory equipment


4 Circuits Super Miniature Slip Ring , Low Noise Slip Ring For Lab Equipment

ModelCircuitsVoltage

Length

inch(mm)

OD

inch(mm)

Speed

(rpm)

PSR-M44 x 2A240VAC0.56″(14.3)0.49″(12.5)300
Specifications
Insulation Resistance 50MΩ@500VDC
Dielectric Strength 500VAC@50Hz
Electrical Noise 100mΩ, max
Rotating Speed 300rpm
Lifetime 5 million revolutions
Working Temperature -40℉ to +176℉(-40℃ to +80℃)
Storage Temperature -40℉ to +185℉(-40℃ to +85℃)
Contact Material Precious Metal
Housing Material ABS
Lead wire 26#AWG Teflon
