Compact Customized Capsule Slip Rings For Robotics / Mechanical

Specifications

Brand Name :

Panlink

Model Number :

PSR-C/M/K series

Place of Origin :

China

MOQ :

Price :

Negotiable

Certification :

ISO 9001: 2015, CE

Payment Terms :

T/T

Packaging Details :

Carton Box, EPE Foam, Wooden Box(For Large Goods)

OD :

8.4mm-25.4mm

Voltage Rating :

120VAC( 240VAC Optional)

Housing Material :

ABS Plastic or Aluminum Alloy

Contact Material :

Gold-gold

Name :

Capsule Slip Ring

Delivery Time :

4 Weeks

Supply Ability :

40 Million a Year

Description

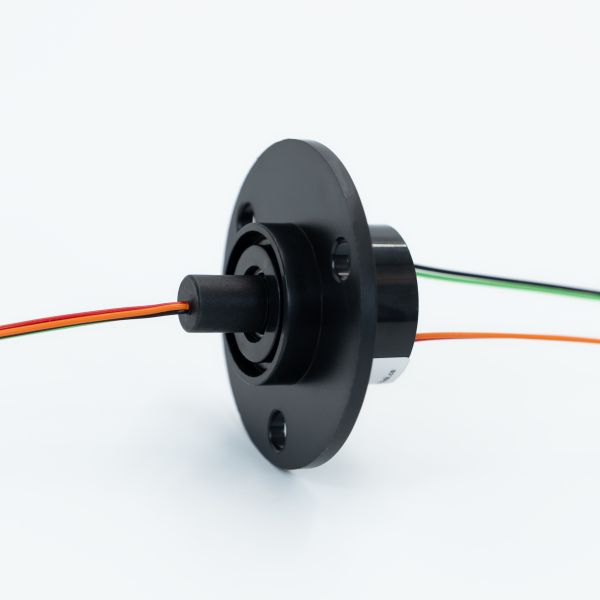

Compact and Customizable Capsule Slip Rings for Robotics and Mechanical

Capsule slip rings are designed to provide free signal / data and power transmission for any electromechanical system that requires unrestrained, continuous rotation while transferring signal/ data and power from a stationary platform to a rotating platform.

Panlink M/K/C series capsule slip ring are standard, on-the-shelf and no through bore products, that use gold-gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections. They are superior of handling all kinds of signals and data, and can incorporate up to 200 circuits, which each are rate at 2A, with the option to combine circuits for higher currents of 5A or 10A. They are ideal for use where mounting space is limited and critical, without sacrifice current handling capability. They can be provided with waterproof package which can directly operate underwater with IP68 protection. We offer standardized & modularized design and fully customizable products according to the special requirements of customers in different applications.

Main Application	Feature

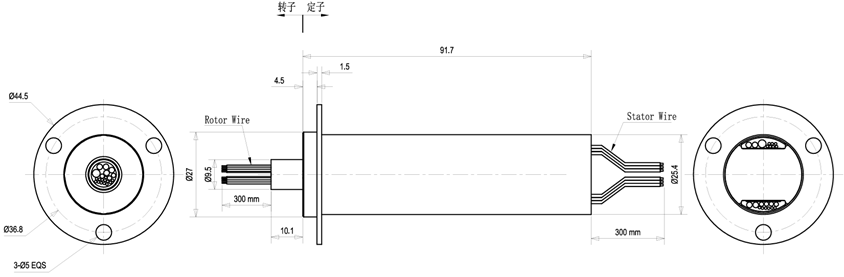

• CCTV pan/ tilt camera	• Standard 8mm, 12.7mm, 22mm, 25.4mm diameter units available
• Motion control systems	• Standard 6 circuits, 12 circuits, 24 circuits, 36 circuits and 60
• Eddy current inspection equipment	circuits configurations available
• Cleaning robotics	• Gold on gold contact
• Indexing and rotary tables	• Superior signal / data handling performance
• Packaging equipment	• Compatible with data bus protocols
• Medical Equipment	• Support USB, 100M Ethernet, Gigabit Ethernet and coaxial signal

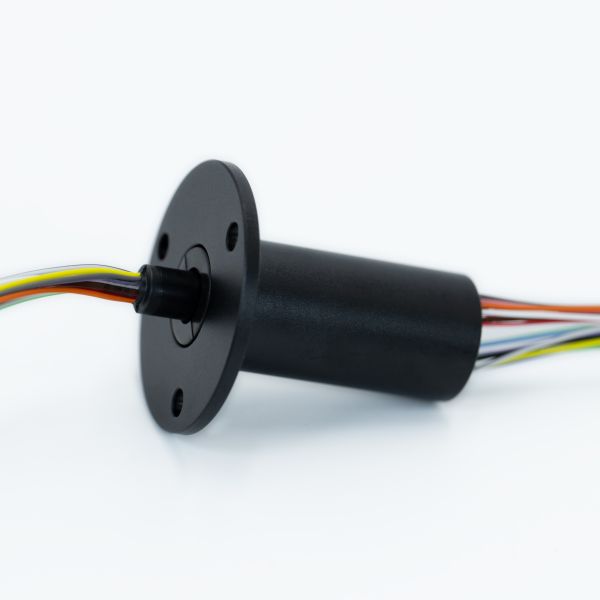

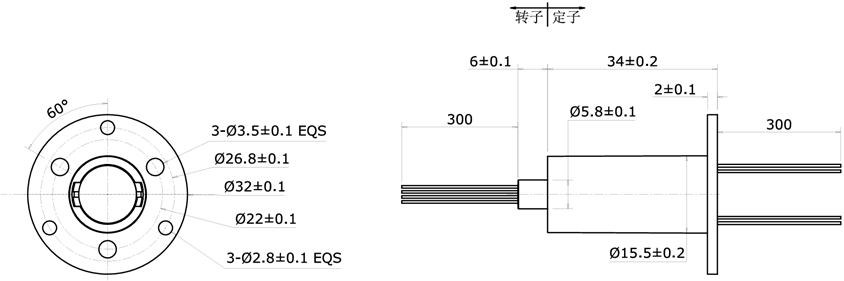

M Series Capsule Slip Ring

Model	Circuits	Current Rating	Voltage Rating (VDC)	Size (mm)		Speed (rpm)
Model	Circuits	2A	Voltage Rating (VDC)	OD	L	Speed (rpm)
PSR-SM-10P	10	10	240	8.4	13.5	300

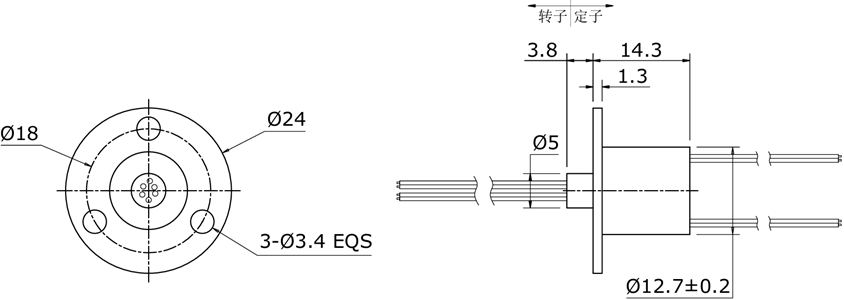

PSR-M6S	6	6	240	12.7	14.3	300

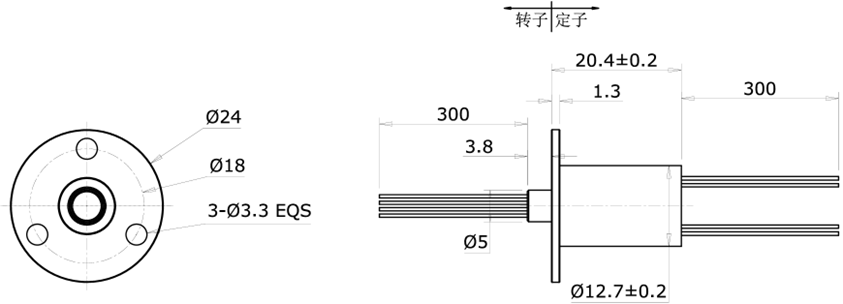

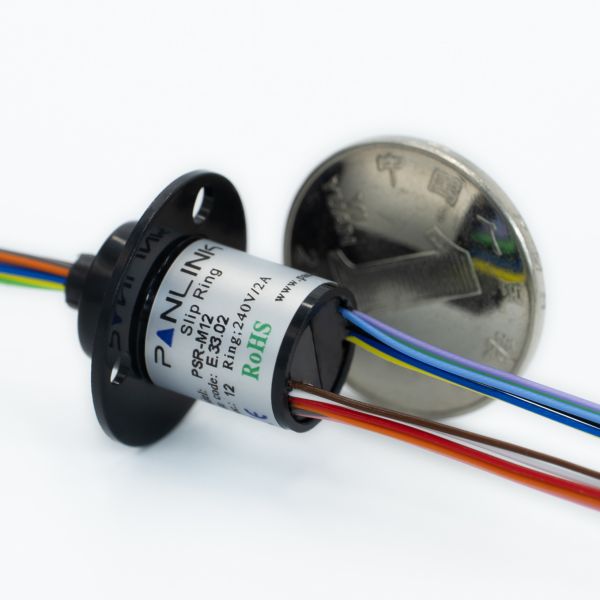

PSR-M12S	12	12	240	12.5	19.7	300

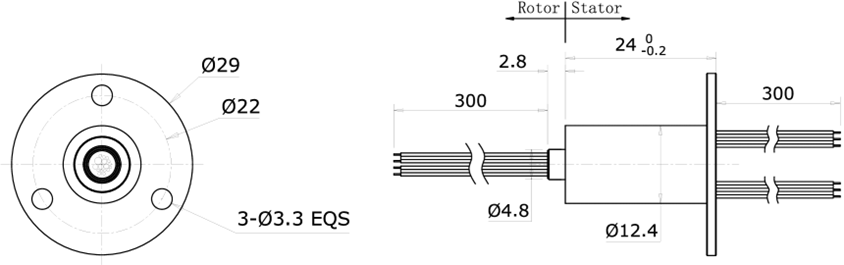

PSR-M18	18	18	240	12.4	24	300

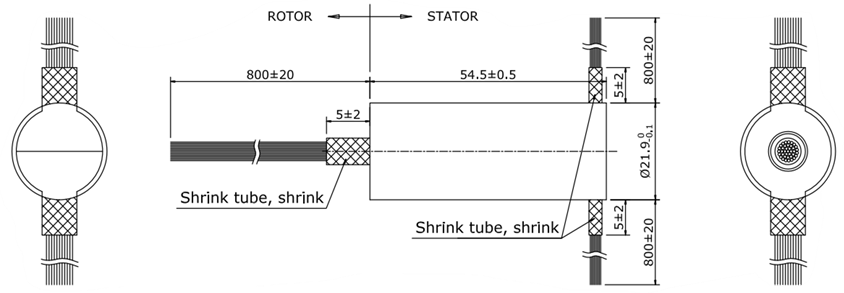

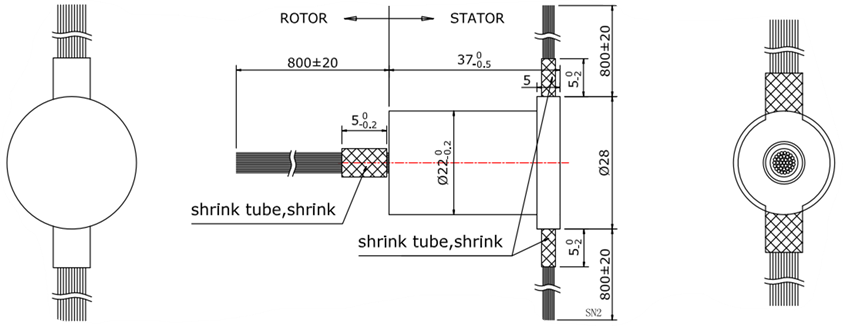

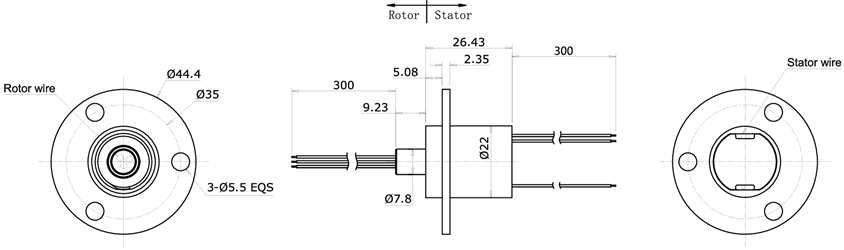

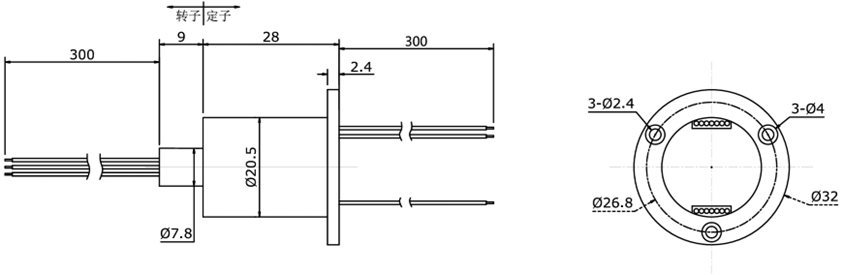

PSR-M0	38	38	28VAC	21.9	54.5	300
Remark: Flange, current, voltage, speed and higher protection can be customized.

Model	PSR-M Series
Voltage Rating	120VAC(240VAC Optional)
Current Rating	2A per circuit
Insulation Resistance	500MΩ @ 500VDC
Electrical Noise	20 mΩ max
Dielectric Strength	500VAC @ 50Hz
Rotating Speed, Max	300rpm
Torque During Rotation, Max	0.01Nm @ room temperature
Life Time, Min	10 million revolutions
Contact Material	Gold on gold
Lead Wires	300mm AWG#28 Teflon wires
Housing Material	ABS Plastic or Aluminum Alloy
Working Temperature	-40℃ to +80℃(-40℉ to +176℉)
Storage Temperature	-45℃ to +85℃(-49℉ to +185℉)
Relative Humidity, Max	95%
Protection Level	IP54

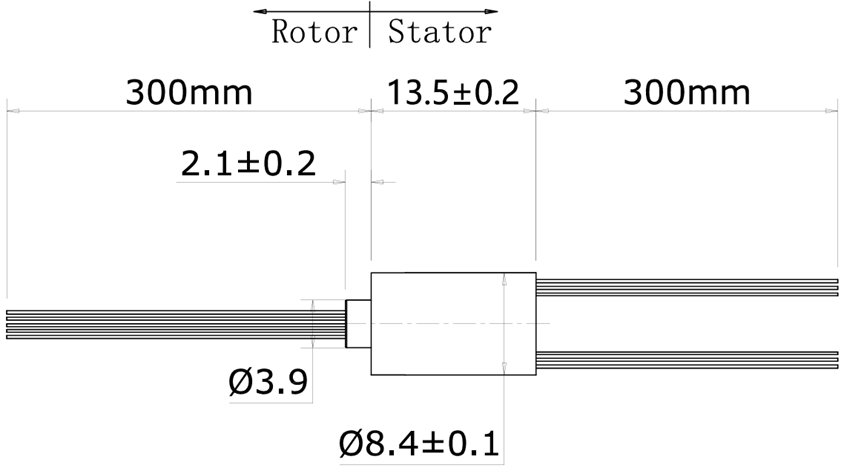

PSR-SM-10P Dimensions
