300rpm Compact Slip Ring 0.61″ 15.5mm OD for Industrial Robotics
300rpm Compact Slip Ring 0.61″ 15.5mm OD for Industrial Robotics
300rpm Compact Slip Ring 0.61″ 15.5mm OD for Industrial Robotics
300rpm Compact Slip Ring 0.61″ 15.5mm OD for Industrial Robotics
Specifications
Brand Name :
Panlink
Model Number :
PSR-M12-12
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Name :
Compact Slip Ring
Rings :
12 (1A/Ring)

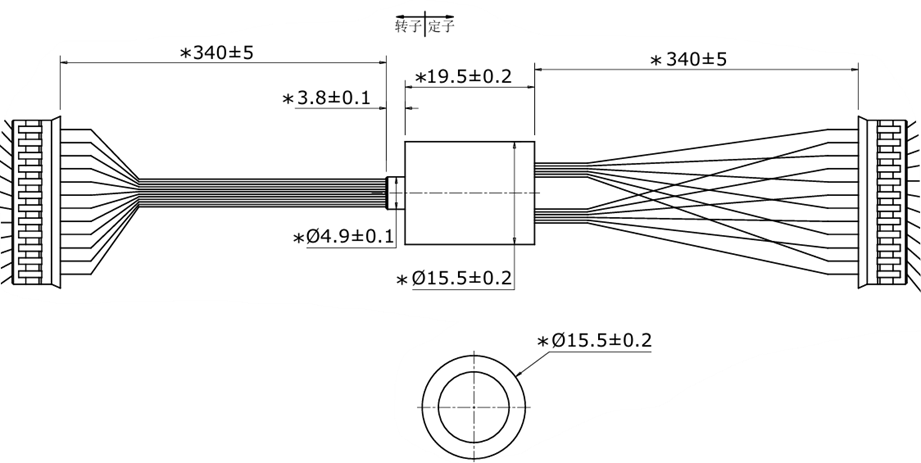

D x L :
0.61″ x 0.77″(15.5mm x 19.5mm)
Voltage :
48VDC
Speed :
300rpm
Price :
Negotiable
Delivery Time :
4 Weeks
Supply Ability :
40 Million a Year
Description

Compact Precision Miniature Capsule Slip Ring with 0.61″(15.5mm) Outer Diameter

FeaturesApplications

• Rings: 12 (1A/Ring)

• Industrial Robotics

• D x L: 0.61″ x 0.77″(15.5mm x 19.5mm)

• Precision Rotary Tables

• High Insulation Resistance

• Security & Surveillance

• Gold-on-gold sliding contact technology

• Medical Equipment


300rpm Compact Slip Ring 0.61″ 15.5mm OD for Industrial Robotics

ModelCircuitsVoltage

Length

inch(mm)

OD

inch(mm)

Speed

(rpm)

PSR-M12-1212 x 1A48VDC0.77″(19.5)0.61″(15.5)300
Specifications
Insulation Resistance 20MΩ@200VDC
Dielectric Strength 200VAC@50Hz
Contact Resistance 20mΩ, max
Rotating Speed 300rpm
Torque Max 21gf.cm
Lifetime 5 million revolutions
Working Temperature -40℉ to +176℉(-40℃ to +80℃)
Storage Temperature -40℉ to +176℉(-40℃ to +80℃)
Relative Humidity 90%
Protection Level IP54
Contact Material Gold-Gold
Housing Material Aluminum Alloy
Lead wire AWG28# Teflon Wire
