8 Channel Through Bore Slip Ring with 20A Current Rating and 1.18inch ID for Power Transmission
8 Channel Through Bore Slip Ring with 20A Current Rating and 1.18inch ID for Power Transmission
8 Channel Through Bore Slip Ring with 20A Current Rating and 1.18inch ID for Power Transmission
8 Channel Through Bore Slip Ring with 20A Current Rating and 1.18inch ID for Power Transmission
8 Channel Through Bore Slip Ring with 20A Current Rating and 1.18inch ID for Power Transmission
8 Channel Through Bore Slip Ring with 20A Current Rating and 1.18inch ID for Power Transmission
Specifications
Brand Name :
Panlink
Model Number :
PSR-T30-8
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
40 Million a Year
Delivery Time :
4 Weeks
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Channel :
8 Channel
Voltage Rating :
440VAC/VDC
Current Ratingn :
20A
ID :
1.18inch
OD :
3.9mm × 3.39mm
Rotating Speed :
250rpm
Description

8 Channel Through Bore Slip Ring ID 1.18inch 20A

PSR-T30-8

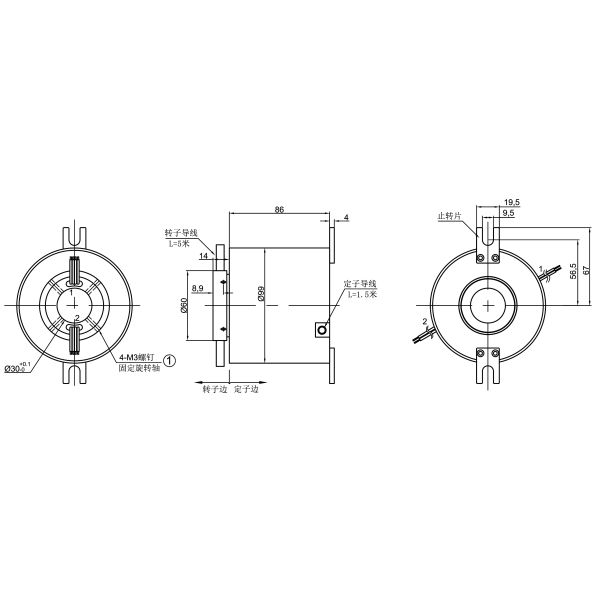

Dimensions in millimeters

8 Channel Through Bore Slip Ring with 20A Current Rating and 1.18inch ID for Power Transmission

Specifications:

Channels 8 for Power Transmission
Electrical Specifications
Voltage Rating 440VAC/VDC
Current Rating 20A
Insulation Resistance Max 500MΩ @ 600VDC
Dielectric Noise 1000VAC @ 50Hz, 60s
Electric Noise Max 10mΩ
Lead Cable Teflon Wire
Mechanical Specifications
Rotating Speed 250rpm
Operating Temperature -22℉ to +176℉ (-30℃ to +80℃)
Contact Material Precious Metal
Housing Material Aluminum Alloy
Protection Degree IP51(higher or lower on request)
