Miniature Through Bore Slip Ring with 4 Channels 220VAC and 300rpm Rotation Speed
Miniature Through Bore Slip Ring with 4 Channels 220VAC and 300rpm Rotation Speed
Miniature Through Bore Slip Ring with 4 Channels 220VAC and 300rpm Rotation Speed
Miniature Through Bore Slip Ring with 4 Channels 220VAC and 300rpm Rotation Speed
Miniature Through Bore Slip Ring with 4 Channels 220VAC and 300rpm Rotation Speed
Miniature Through Bore Slip Ring with 4 Channels 220VAC and 300rpm Rotation Speed
Specifications
Brand Name :
Panlink
Model Number :
PSR-F15-2P2S
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
40 Million a Year
Delivery Time :
4 Weeks
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Channels :
4 Channels
Voltage Rating :
220VAC
Current Rating :
Power: 10A, Signal: 5A
Rotating Speed :
300rpm
Protection Degree :
IP54(higher or lower on request)
Contact Material :
Precious Metal
Description
Minatare Through Bore Slip Ring with 4 Channels
PSR-F15-2P2S

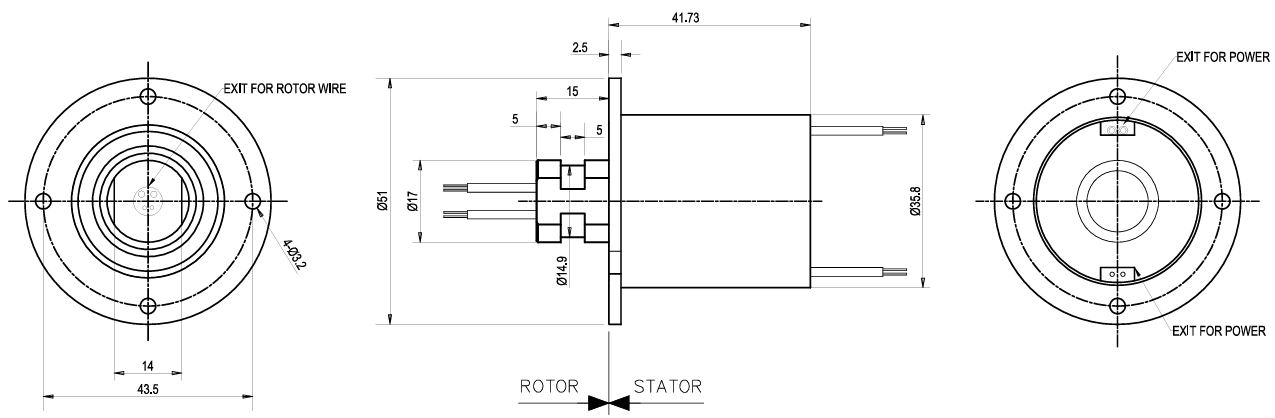

Dimensions in millimeters

Miniature Through Bore Slip Ring with 4 Channels 220VAC and 300rpm Rotation Speed
Specification
Channels 2 for Signal Transmission, 2 for Power Transmission
Electrical Specifications
Voltage Rating 220VAC
Current Rating Power: 10A, Signal: 5A
Insulation Resistance Max 500MΩ @ 500VDC
Dielectric Noise 500VAC @ 50Hz, 60s
Electric Noise Max 20mΩ
Lead Cable Power: AWG16 Teflon, Signal: AWG20 Teflon
Mechanical Specifications
Working Life 100 million revolutions
Rotating Speed 300rpm
Operating Temperature -4℉ to +176℉ (-20℃ to +80℃)
Storage Temperature -13℉ to +185℉ (-25℃ to +85℃)
Operating Humidity 0~95%RH
Torque 0.1N•m
Contact Material Precious Metal
Housing Material Aluminum Alloy
Protection Degree IP54(higher or lower on request)
Shock GB/T 2423.5 (IEC 60068-2-27)
Vibration GB/T 2423.10 (IEC 60068-2-6)
