Customized Miniature Through Bore Slip Ring For Military Devices / Radar Antennas

Specifications

Brand Name :

Panlink

Model Number :

PSR-F Series

Certification :

ISO 9001: 2015, CE

Place of Origin :

China

MOQ :

Payment Terms :

T/T

Packaging Details :

Carton Box, EPE Foam, Wooden Box(For Large Goods)

Name :

Miniature Through Bore Slip Ring

OD :

≥24.8mm

Ip Grade :

IP54

Rings :

2-36

Housing Material :

Aluminum Alloy or Engineering Platics

Contact Materia :

Precious Metal

Lead Wire Length :

Customized

Lead Wire :

12color #28 AWG Teflon Wires

Price :

Negotiable

Delivery Time :

4 Weeks

Supply Ability :

40 Million a Year

Description

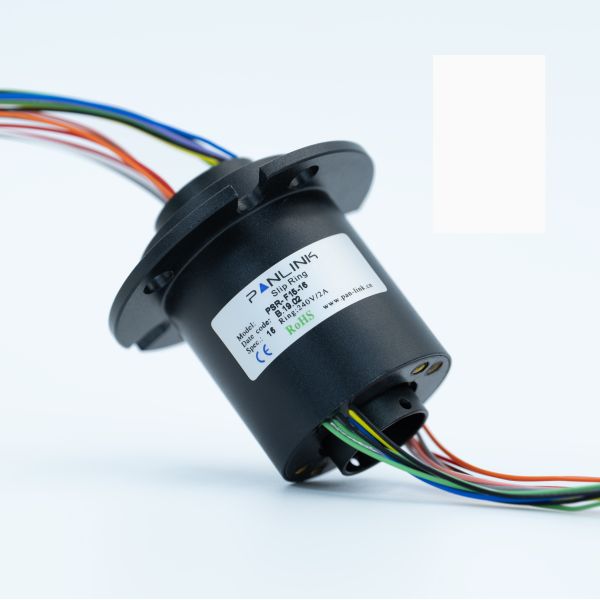

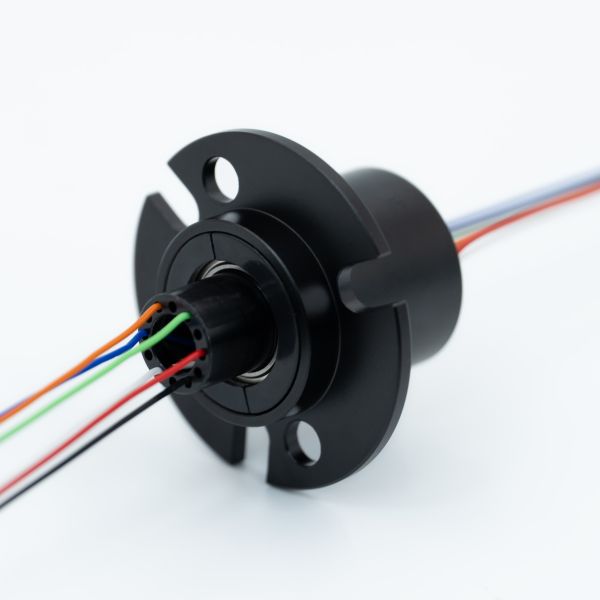

Miniature Through Bore Slip Ring

Through bore slip rings are slip rings with a hollow shaft in the center. This series offers a free inner space for either connecting the rotor to a rotating shaft of the customer machine or for leading through pipes or cables not affected from rotation. The central through-bore can be seamlessly integrated with a FORJ or coaxial rotary joint, offering a comprehensive system solution.

Panlink hollow shaft slip ring are available with inner diameters from 3mm up to 190mm. Larger diameter or higher protection solutions can be customized. The through bore slip rings use the most advanced fiber brush technology and precious metal multi-contacting, they offer low electrical noise, low contact pressure for long lifetime and they are maintenance free. We offer standardized & modularized design and fully customizable products according to the special requirements of customers in different applications.

Main Application	Feature
• Military Devices	• 3mm to 190mm through bore optional
• Medical Equipment	• Up to 800 circuits
• Wind Turbines	• Compatible with various data protocols
• Robotics	• Capable of handling high current or high-power circuits
• Radar Antennas	• Flexible combination of power and signal transfer
• Packaging Machines	• Standard collar mounting or custom flange mounting optional

Model	Rings	Current Rating (amps)			Voltage Rating (VAC)			Size (mm)		Bore (mm)	Speed (rpm)
Model	Rings	2	5	10	120	240	380	OD	L	ID	Speed (rpm)
PSR-F3-36-SDI	36	×				×		22	70	9	300
PSR-F7-4	4	×				×		24.8	64	11.8	300

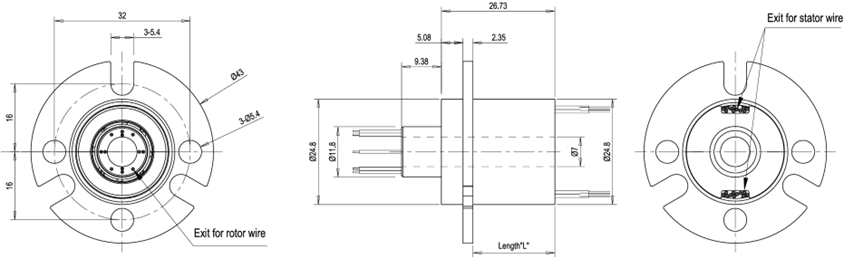

PSR-F7-6	6	×				×		24.8	19.3	7	300
PSR-F7-12	12	×			×			24.8	19.3	7	300
PSR-F12-6	6	×				×		32.8	41.7	15	300

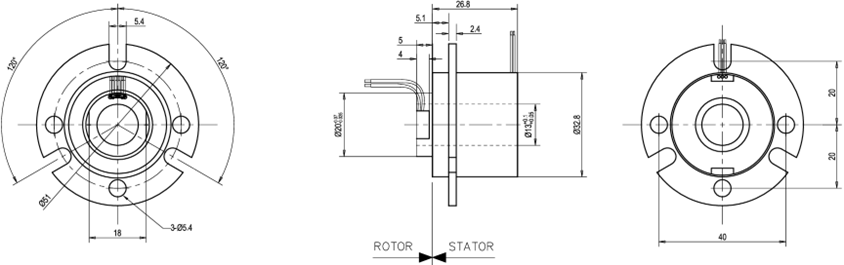

PSR-F15-6D	6	×				×		32.8	26.8	13	300

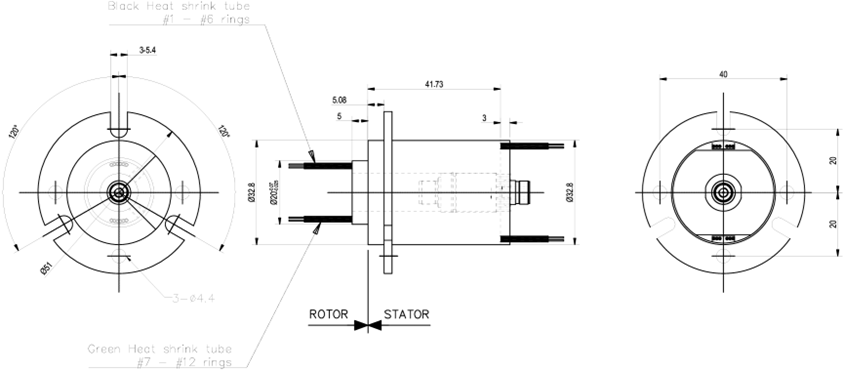

PSR-F15-12	12	×				×		32.8	41.7	15	300
PSR-F15-16	16	×				×		32.8	41.7	15	300

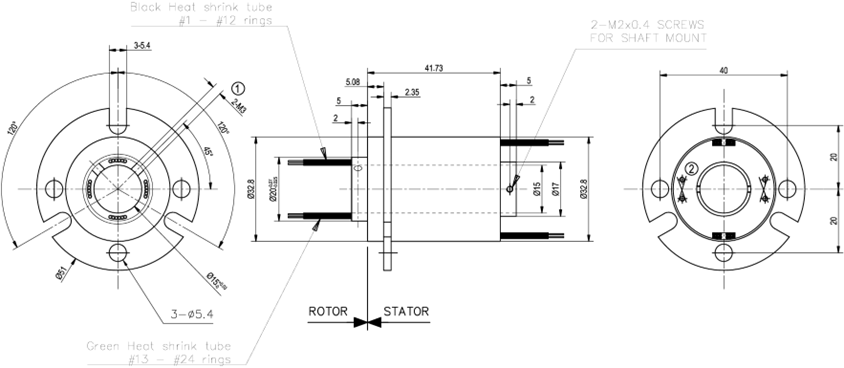

PSR-F15-24	24	×				×		32.8	41.7	15	300
Remark: More circuits, speed, higher current/ voltage and higher protection can be customized.

Specification
Voltage Rating	120VAC/ 240VAV
Current Rating	2A/ 5A/ 10A/ 15A
Insulation Resistance	500MΩ @ 500VDC
Electrical Noise	40 mΩ max
Dielectric Strength	500VAC @ 50Hz
Rotating Speed, Max	300rpm
Torque During Rotation, Max	0.05N.m @ room temperature
Life Time, Min	50 million revolutions
Contact Material	Precious metal
Lead Wires	12color #28 AWG Teflon Wires
Housing Material	Aluminum Alloy or Engineering Plastics
Working Temperature	-40℃ to +80℃
Storage Temperature	-45℃ to +85℃
Relative Humidity, Max	95%
Protection Level	IP54

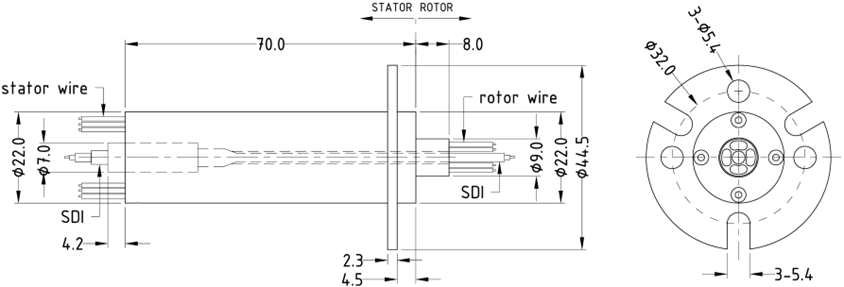

PSR-F3-36-SDI Dimensions
