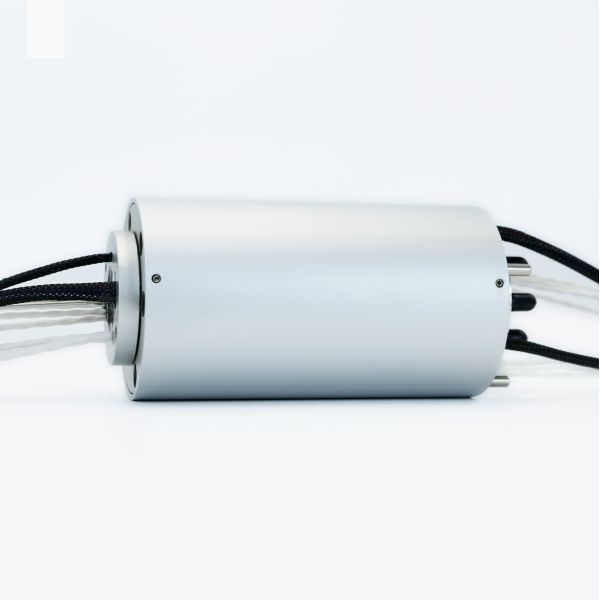

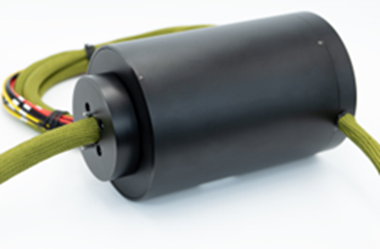

Multi Circuit Through Bore Slip Ring For Military Devices / Radar Antennas / Robotics

Specifications

Brand Name :

Panlink

Model Number :

PSR-T Series

Certification :

ISO 9001: 2015, CE

Place of Origin :

China

MOQ :

Payment Terms :

T/T

Packaging Details :

Carton Box, EPE Foam, Wooden Box(For Large Goods)

Bore Size :

3-190mm

Lead Length :

300mm

Rings :

2-72

Voltage :

220VAC

Current Rating :

Housing Material :

Aluminum Alloy or Precious Metal

Operating Temp :

-40°C to 80°C

Operating Temperature :

-80~+80

Protection Grade :

IP54(IP68 Optional)

Usage :

Military Devices, Radar Antennas, Robotics

Price :

Negotiable

Delivery Time :

4 Weeks

Supply Ability :

40 Million a Year

Description

Through bore slip rings are slip rings with a hollow shaft in the center. This series offers a free inner space for either connecting the rotor to a rotating shaft of the customer machine or for leading through pipes or cables not affected from rotation. The central through-bore can be seamlessly integrated with a FORJ or coaxial rotary joint, offering a comprehensive system solution.

Panlink hollow shaft slip ring are available with inner diameters from 3mm up to 190mm. Larger diameter or higher protection solutions can be customized. The through bore slip rings use the most advanced fiber brush technology and precious metal multi-contacting, they offer low electrical noise, low contact pressure for long lifetime and they are maintenance free. We offer standardized & modularized design and fully customizable products according to the special requirements of customers in different applications.

Main Application	Feature
• Military Devices	• 3mm to 190mm through bore optional
• Medical Equipment	• Up to 800 circuits
• Wind Turbines	• Compatible with various data protocols
• Robotics	• Copable of handling high current or high-power circuits
• Radar Antennas	• Flexible combination of power and signal transfer
• Pachaging Machines	• Standard collar mounting or custom flange momunting opyional

Through Bore Slip Ring

Model	Rings	Current Rating (amps)			Voltage Rating (VAC)			Size (mm)		Bore (mm)	Speed (rpm)
		2	5	10	120	240	380	OD	L	ID
PSR-T12	6		×			×		55	33.8	12.7	300
	12								47.6
	18								61.4
	24								75.2

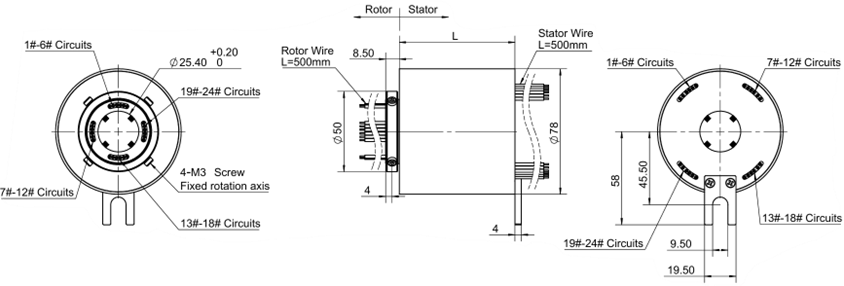

PSR-T25A	6			×			×	78	47.8	25.4
	12								71.8
	18								95.8
	24								119.8
PSR-T25C	6		×			×		78	36.8	25.4
	12								48.8
	18								60.8
	24								72.8
	36								97
PSR-T38A	6			×			×	99	47.8	38.1
	12								71.8
	18								95.8
	24								119.8
PSR-T38B	6		×			×		99	42.8
	12								60.8
	18								78.8
	24								96.8
PSR-T38C	6		×			×		99	36.8	38.1
	12								48.8
	18								60.8
	24								72.8
	30								84.8
	36								96.8
	42								108.8
	48								120.8

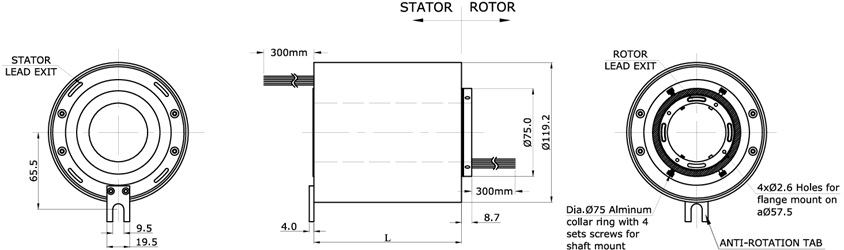

PSR-T50A	6			×			×	119	53.8	50
	12								77.8
	18								101.8
	24								125.8
PSR-T50C	6		×			×		119	42.8	50
	12								54.8
	18								66.8
	24								78.8
	36								103

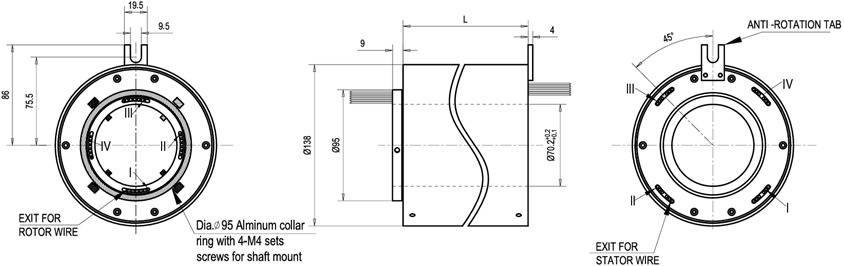

PSR-T70	6		×	×			×	138	53	70
	12								71
	18								89
	24								107
PSR-T70E	6	20A					×	138	59	95
	12								83
	18								107
	24								131

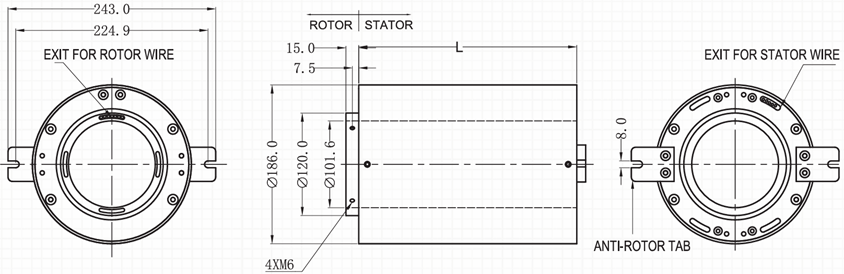

PSR-T100	6			×			×	186	78.9	101.6
	12								106.8
	18								134.7
	24								162.6
Remark: More circuits, speed, higher current/ voltage and higher protection can be customized.

Specification
Voltage Rating	120VAC/ 240VAC/ 380VAC
Current Rating	2A/ 5A/ 10A/ 15A/ 20A/ 30A
Insulation Resistance	500MΩ @ 500VDC
Electrical Noise	40mΩ max
Dielectric Strength	500VAC @ 50Hz, 60s
Rotating Speed, Max	300rpm
Torque During Rotation, Max	0.01N.m @ room temperature
Life Time, Min	50 million revolutions
Contact Material	Precious metal
Lead Wires	Teflon wires
Housing Material	Aluminum Alloy
Working Temperature	-40℃ to +80℃
Storage Temperature	-45℃ to +85℃
Relative Humidity, Max	95%
Protection Level	IP54

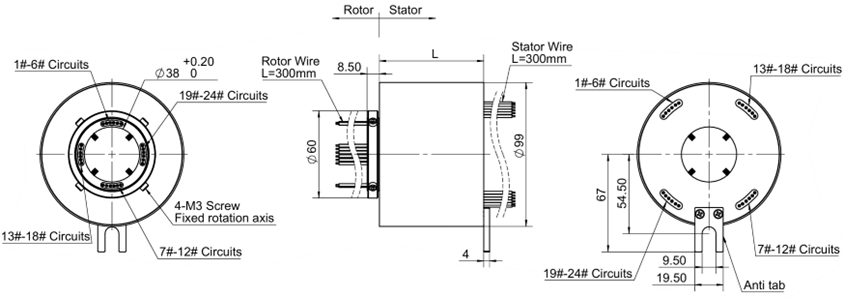

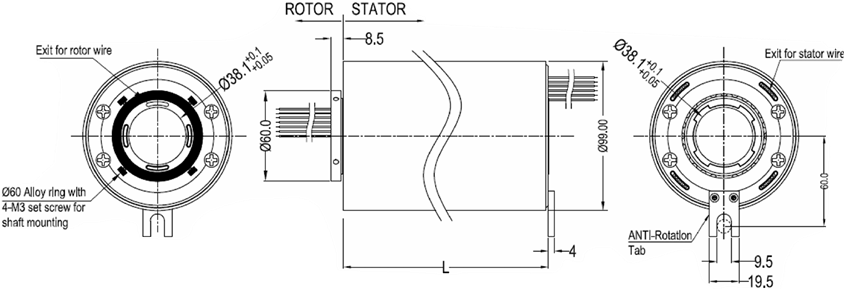

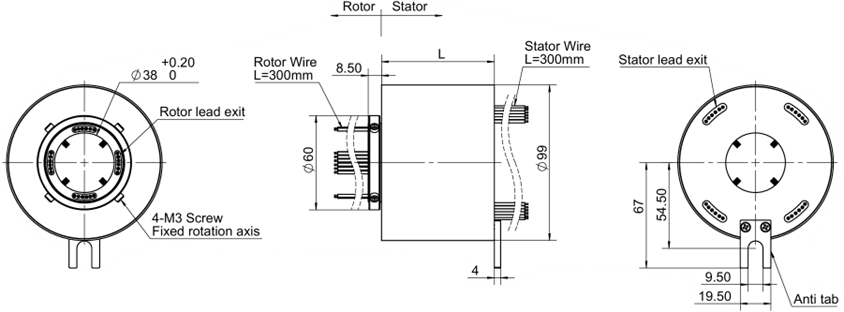

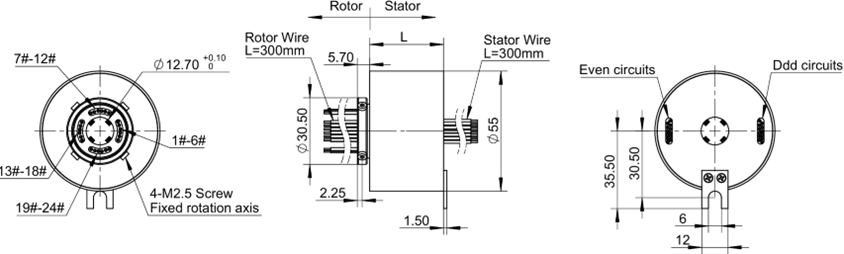

PSR-T12 Dimensions
