20-channel Miniature Through Bore Slip Ring with 0.53inch Bore and IP51 Protection
20-channel Miniature Through Bore Slip Ring with 0.53inch Bore and IP51 Protection
20-channel Miniature Through Bore Slip Ring with 0.53inch Bore and IP51 Protection
20-channel Miniature Through Bore Slip Ring with 0.53inch Bore and IP51 Protection
20-channel Miniature Through Bore Slip Ring with 0.53inch Bore and IP51 Protection
20-channel Miniature Through Bore Slip Ring with 0.53inch Bore and IP51 Protection
Specifications
Brand Name :
Panlink
Model Number :
PSR-F11-6P14S
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
40 Million a Year
Delivery Time :
4 Weeks
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Channels :
(14×)Signal, (6×)Power
Voltage Rating :
28VDC
Rotating Speed :
50rpm
Protection Degree :
IP51(higher or lower on request)
Description
20-channel Miniature Through Bore 0.53inch Bore
PSR-F11-6P14S

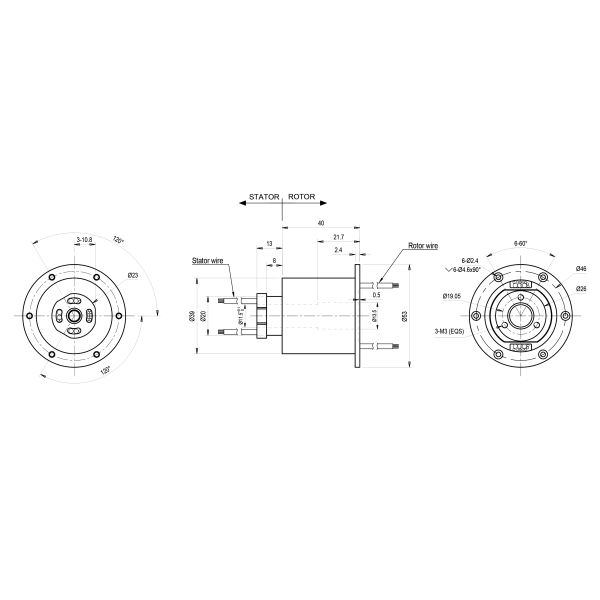

Drawing (Dimensions in Millimeters)
20-channel Miniature Through Bore Slip Ring with 0.53inch Bore and IP51 Protection
Specification:
Channels 14 for Signal Transmission, 6 for Power Transmission
Electrical Specifications
Voltage Rating 28VDC
Current Rating Power: 15A, Signal: 2A
Insulation Resistance Max 500MΩ @ 500VDC
Dielectric Noise 500VAC @ 50Hz, 60s
Electric Noise Max 40mΩ
Lead Cable Power: AWG16 Teflon, Signal: AWG24 Teflon
Mechanical Specifications
Working Life 10 million revolutions
Rotating Speed 50rpm
Operating Temperature -40℉ to +122℉ (-40℃ to +50℃)
Storage Temperature -67℉ to +158℉ (-55℃ to +70℃)
Operating Humidity 0~95%RH
Torque 0.5N•m
Contact Material Precious Metal
Housing Material Aluminum Alloy
Protection Degree IP51(higher or lower on request)
Weight 120g
Shock GB/T 2423.5 (IEC 60068-2-27)
Vibration GB/T 2423.10 (IEC 60068-2-6)
