6 Channel Slip Ring for 365 ℉with Flange
6 Channel Slip Ring for 365 ℉with Flange
6 Channel Slip Ring for 365 ℉with Flange
6 Channel Slip Ring for 365 ℉with Flange
6 Channel Slip Ring for 365 ℉with Flange
6 Channel Slip Ring for 365 ℉with Flange
Specifications
Current Rating :
2A
Model Number :
PSR-T12S-10
Channels :
6 Channels
Brand Name :
Panlink
Protection Degree :
IP54
MOQ :
1
Delivery Time :
4 Weeks
Rotating Speed :
300rpm
Payment Terms :
T/T
Housing Material :
Aluminum Alloy
Price :
Negotiable
Voltage Rating :
48VDC
Certification :
ISO 9001: 2015, CE
Insulation Resistance :
Max 200MΩ @ 500VDC
Supply Ability :
40 Million a Year
Operating Temperature :
-40℉ to +356℉ (-40℃ to +180℃)
Place of Origin :
China
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Description
PSR-F15-6D
6 Channel Slip Ring for 365 ℉ with Flange

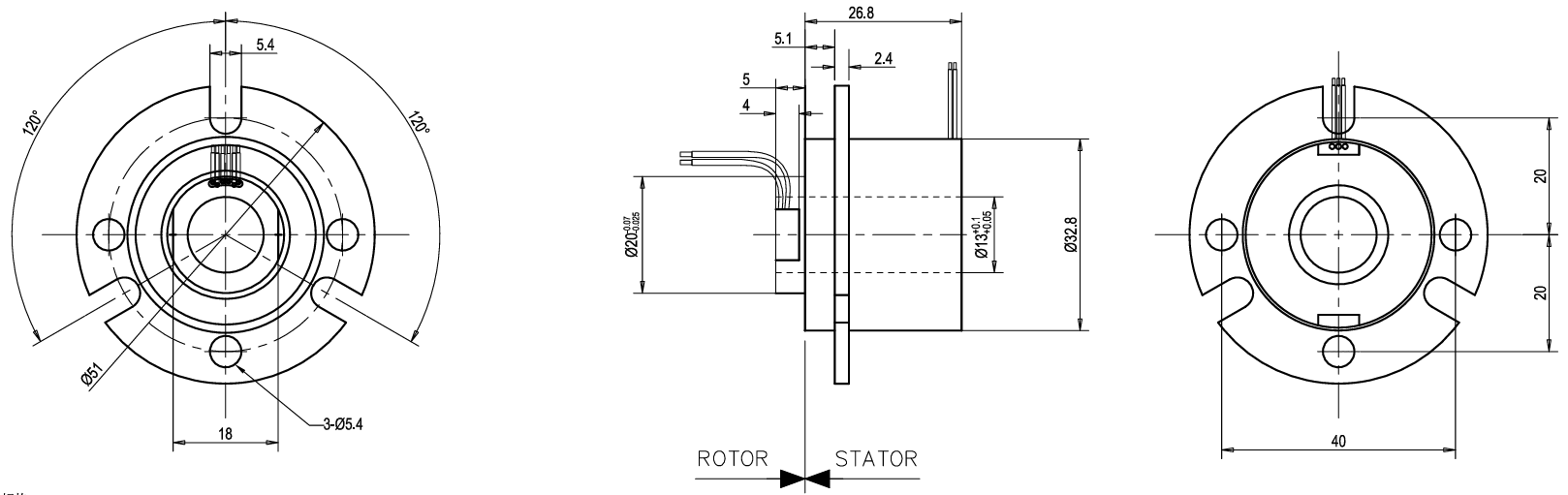

Drawings (Dimensions in millimeters)

6 Channel Slip Ring for 365 ℉with Flange

Specification
Circuits 6 for Signal Transmission
Electrical Specifications
Voltage Rating 48VDC
Current Rating 2A
Insulation Resistance Max 200MΩ @ 500VDC
Dielectric Noise 250VAC @ 50Hz, 60s
Electric Noise Max 10mΩ
Lead Cable AWG#26 Teflon Wire
Mechanical Specifications
Rotating Speed 300rpm
Operating Temperature -4℉ to +356℉ (-20℃ to +180℃)
Storage Temperature -13℉ to +374℉ (-25℃ to +190℃)
Operating Humidity 0~95%RH
Torque max. 0.1 N•m
Contact Material Precious Metal
Housing Material Aluminum Alloy
Protection Degree IP54 (higher or lower on request)
