3 Channel 10A Through Bore Slip Ring with IP65 Protection and AFPF Cable
3 Channel 10A Through Bore Slip Ring with IP65 Protection and AFPF Cable
3 Channel 10A Through Bore Slip Ring with IP65 Protection and AFPF Cable
3 Channel 10A Through Bore Slip Ring with IP65 Protection and AFPF Cable
3 Channel 10A Through Bore Slip Ring with IP65 Protection and AFPF Cable
3 Channel 10A Through Bore Slip Ring with IP65 Protection and AFPF Cable
Specifications
Brand Name :
Panlink
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
40 Million a Year
Delivery Time :
4 Weeks
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Model Number :
PSR-T25-3FIN
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
Channel :
3 Channel
Voltage Rating :
380VAC
Current Rating :
10A
Rotating Speed :
300rpm
Protection Degree :
IP65(higher or lower on request)
Lead Cable :
AFPF Cable
Description

3-channel 10A Through Bore Slip Ring with AFPF Cable and ID 1inch

PSR-T25-3FIN

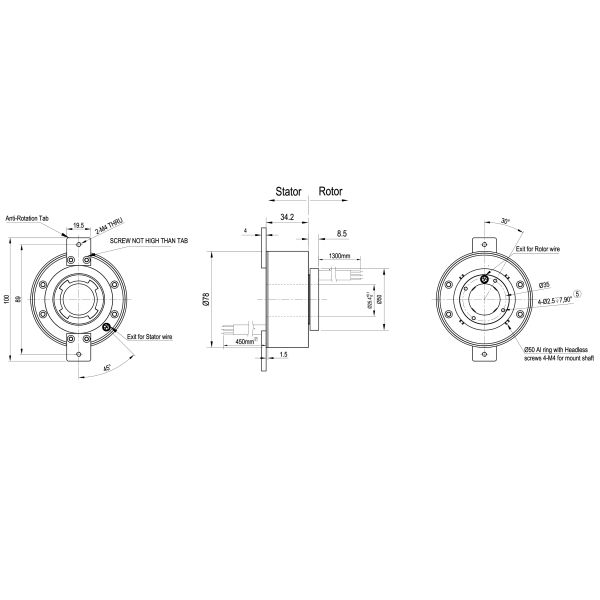

Dimensions in millimeters

3 Channel 10A Through Bore Slip Ring with IP65 Protection and AFPF Cable
Specifications:
Channels 3 for Power Transmission
Electrical Specifications
Voltage Rating 380VAC
Current Rating 10A
Insulation Resistance Max 500MΩ @ 500VDC
Dielectric Noise 3000VAC @ 50Hz, 60s
Electric Noise Max 40mΩ
Lead Cable AFPF Cable
Mechanical Specifications
Working Life 30 million revolutions@10A, 25℃, 100rpm
Rotating Speed 300rpm
Operating Temperature -40℉ to +176℉ (-40℃ to +80℃)
Storage Temperature -49℉ to +185℉ (-45℃ to +85℃)
Operating Humidity 0~95%RH
Torque 0.2N•m
Contact Material Precious Metal
Housing Material Aluminum Alloy
Protection Degree IP65(higher or lower on request)
Shock GB/T 2423.5 (IEC 60068-2-27)
Vibration GB/T 2423.10 (IEC 60068-2-6)
