Interference Resistant Ethernet Slip Ring IP54 Supporting Multi Protocol Hybrid Slip Ring

Specifications

Brand Name :

Panlink

Certification :

ISO 9001: 2015, CE

Place of Origin :

China

Packaging Details :

Carton Box, EPE Foam, Wooden Box(For Large Goods)

MOQ :

Payment Terms :

T/T

Name :

Ethernet Slip Ring

Protection Level :

IP54

Contact Material :

Gold-gold

Housing Material :

Aluminium Alloy or Engineer Plastic

PSR-C Series OD :

22、25mm

PSR-T Series ID :

37、38mm

Lifetime :

1 million revolutions

Price :

Negotiable

Delivery Time :

4 Weeks

Supply Ability :

40 Million a Year

Description

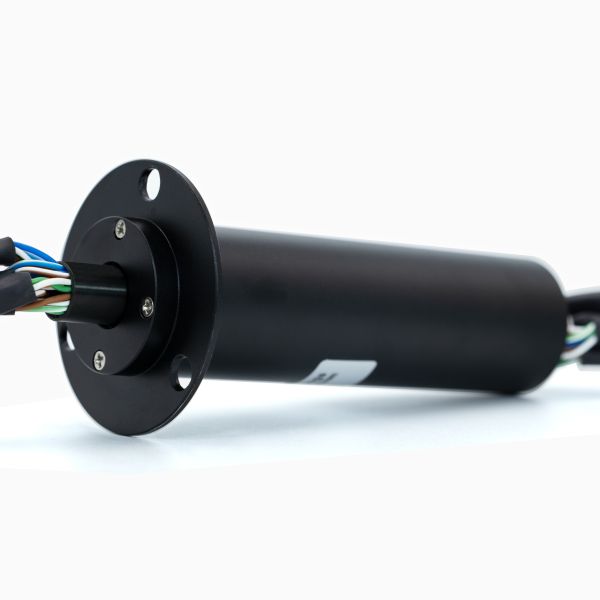

Reliable and Interference-resistant Ethernet Slip Rings Supporting Multi-protocol Hybrid Transmission

Ethernet slip rings are to provide Ethernet communication in combination with power or data connections from a stationary part to a rotating part.

Panlink developed a series of standard capsule Ethernet slip rings and through bore Ethernet slip rings based on our capsule and through bore slip rings. Utilizing high performance fiber brush contact technology and innovative processing, these Ethernet slip rings are able to provide reliable Gigabit Ethernet, video over Ethernet and high-speed data transmission.

Main Application	Advantage
• CCTV IP-surveillance	• Plug-and-play Ethernet
• Video over Ethernet	• Long lifetime and maintenance-free
• Motor control	• Low electrical noise and reliable transmission
• Pan / tilt video camera heads	• A wide variety of existing capsule and through-bore type
• Rotating high-definition video displays	solutions are available for selection.
• POE( Power-Over-Ethernet)
• Camera jibs

Feature

• Compliant with 100 BaseT Ethernet and Gigabit Ethernet

• RJ45 connector for direct plug-and-play standard

• Available with multiple Ethernet channel, power and signal combinations

• Support multiple other data protocols

Capsule Ethernet Slip Ring
Model	Circuits(2A)	Ethernet		OD(mm)		Length(mm)
Model	Circuits(2A)	100Mbit	Gbit	OD(mm)		Length(mm)
PSE-C12-1E	12	1		22
PSR-C12-1G	12		1	22
PSR-C16-1E	16	1		22
PSR-C16-1G	16		1	22
PSR-C24-1E	24	1		22
PSR-C24-1G	21		1	22
PSR-C36-3G	36		3	22
PSR-C60-4G	60		4	25.4
Through Bore Ethernet Slip Ring
Model	Circuits(2A)	Ethernet		Size(mm)		Length(mm)
Model	Circuits(2A)	100Mbit	1Gbit	OD	ID	Length(mm)
PSR-T12-1E		1
PSR-T12-1G			1
PSR-T25-1E		1
PSR-T25-1G			1
PSR-T38-1E		1		99	38
PSR-T38-1G			1	99	37
PSR-T50-1E
PSR-T50-1G
PSR-T70-1E
PSR-T70-1G
PSR-T100-1E				99	38
PSR-T100-1G
Remark: The length of the slip ring varies according to the number of Ethernet ports. Options include 100 Mbps and 1 Gbps Ethernet.

Specification
Voltage Rating	240VAC
Current Rating	1A per circuit
Insulation Resistance	1000MΩ @ 2000VDC
Electrical Noise	40mΩ max
Dielectric Strength	600VDC/ 50Hz/ 60s
Rotating Speed, Max	300rpm
Torque During Rotation, Max	0.01N.m
Life Time, Min	1 million revolutions
Contact Material	Gold-Gold
Lead Wires	12color AWG#28 Teflon Wires
Housing Material	Aluminum Alloy or Engineer Plastic
Working Temperature	-40℃ to +80℃(-40℉ to +176℉)
Storage Temperature	-45℃ to +85℃(-49℉ to +185℉)
Shock	MIL-STD-810E
Protection Level	IP54

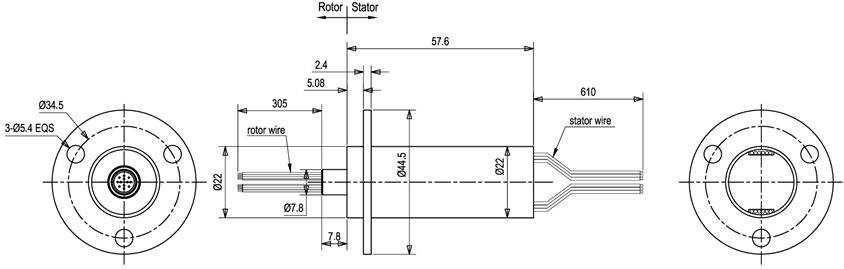

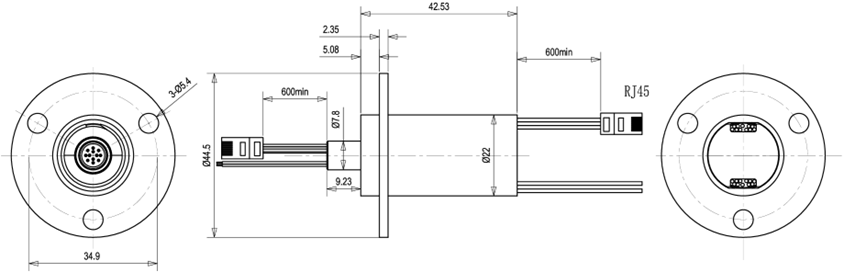

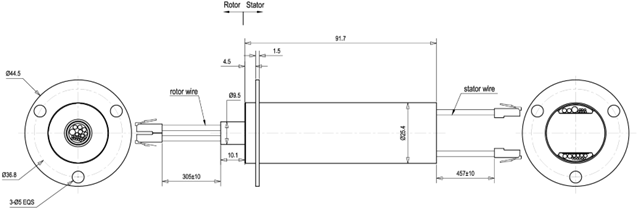

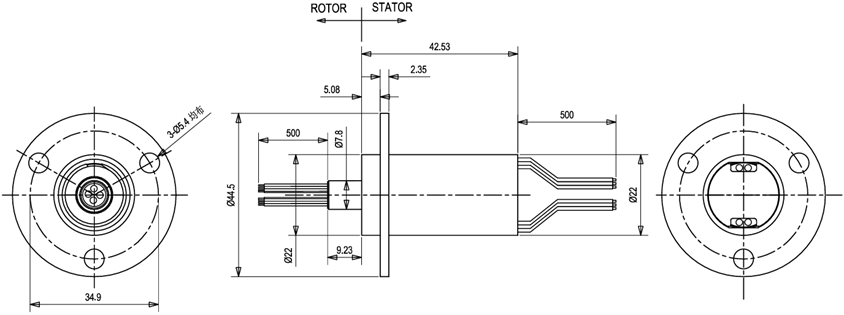

PSR-C12 Series Dimensions
