All-Terrain Industrial-Grade High-Reliability Slip Ring with Wide-Temp & Long Life, Integrated Gigabit Ethernet & 28 Power
All-Terrain Industrial-Grade High-Reliability Slip Ring with Wide-Temp & Long Life, Integrated Gigabit Ethernet & 28 Power
All-Terrain Industrial-Grade High-Reliability Slip Ring with Wide-Temp & Long Life, Integrated Gigabit Ethernet & 28 Power
All-Terrain Industrial-Grade High-Reliability Slip Ring with Wide-Temp & Long Life, Integrated Gigabit Ethernet & 28 Power
Specifications
Brand Name :
Panlink
Model Number :
PSR-C36-28S-G-LT-IP64-AWG26
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
40 Million a Year
Delivery Time :
4 Weeks
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Ethernet Connections :
1 x 1000BaseT
Kabel :
CAT6 RJ45 Stecker
Total Rings :
36
Voltage :
240VAC
Description

• All-Terrain Industrial-Grade High-Reliability Slip Ring with Wide-Temp & Long Life, Integrated Gigabit Ethernet & 28 Power

Features Applications

• Compliant with 1 Group 1000BaseT

• High-End Military and Aerospace Equipment

• Long lifetime

• Precision Test and Measurement Instruments

• Kabel: CAT6 RJ45 Stecker

• High-End Medical Equipment

• Total Rings:36

• Special Vehicles and Marine Vessels

• Voltage: 240VAC

• High-Performance Industrial Robots and Automation Equipment

All-Terrain Industrial-Grade High-Reliability Slip Ring with Wide-Temp & Long Life, Integrated Gigabit Ethernet & 28 Power

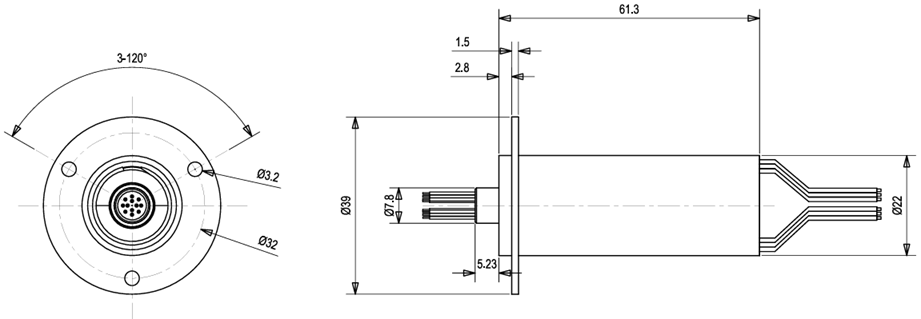

Model Gbit Ethernet

OD x L

inch(mm)

 Circuits Voltage Total Rings
PSR-C36-28S-G-LT-IP64-AWG26 1

0.87″ x 2.41″

(22 x 61.3)

 2A 240VAC 36
Specifications
Insulation Resistance 200MΩ@500VDC
Electrical Noise Max. 20mΩ
Dielectric Strength 500VAC@50Hz
Torque Max. 50g.cm
Speed 250rpm
Lifetime 10 million revolutions
Working Temperature -76℉ to +176℉(-60℃ to +80℃)
Storage Temperature -85℉ to +185℉(-65℃ to +85℃)
Relative Humidity 95%±3(30℃+5℃)
Protection Level IP64
Contact Material Precious Metal
Housing Material Aluminum Alloy
Lead Wire AWG64 Teflon Wire; CAT6 RJ45 Stecker
