100Mbps Ethernet Slip Ring Combining HD-SDI RS42 Interference Free Propagation
100Mbps Ethernet Slip Ring Combining HD-SDI RS42 Interference Free Propagation
100Mbps Ethernet Slip Ring Combining HD-SDI RS42 Interference Free Propagation
100Mbps Ethernet Slip Ring Combining HD-SDI RS42 Interference Free Propagation
Specifications
Brand Name :
Panlink
Model Number :
PSR-M18-2P4S1E-SDI
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Name :
Ethernet Slip Ring
Ethernet connections :
100M Ethernet
Video connections :
RS422
Connectors :
SMA, MCX-J
OD x L :
0.49″ x 0.94″ (12.4 mm x 24mm)
Delivery Time :
4 Weeks
Supply Ability :
40 Million a Year
Description

100Mbps Ethernet Slip Ring Combining HD-SDI And RS422 and Achieving Interference-free Propagation

Features Applications

• Ethernet connections: 100M Ethernet

• High definition video surveillance

• Video connections: RS422

• Industrial automatic control

• Connectors: SMA, MCX-J

• Motion simulator

• Interference-free Propagation

• Spraying equipment

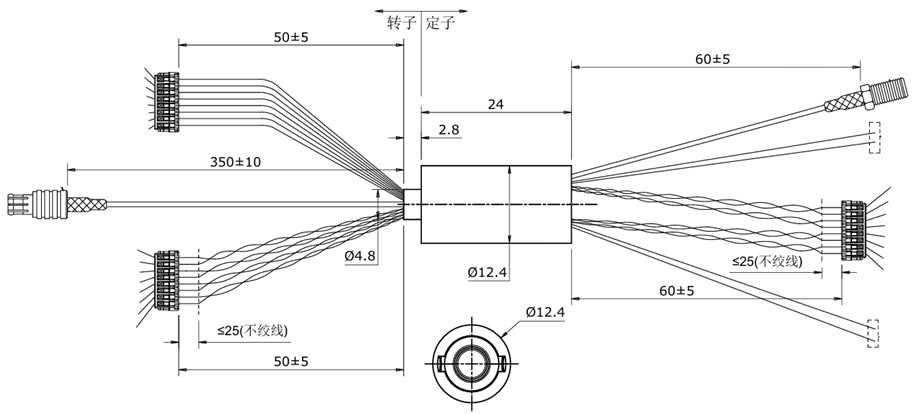

100Mbps Ethernet Slip Ring Combining HD-SDI RS42 Interference Free Propagation

Model 100BaseT Ethernet Signal Channels

OD x L

inch(mm)

 Circuits Voltage
PSR-M18-2P4S1E-SDI 1 (1x)HD-SDI, (1x)RS422

0.49″ x 0.94″

(12.4 x 24)

 1A, 2A 24VAC/VDC
Specifications
Insulation Resistance 50MΩ@300VDC
Electrical Noise Max. 15mΩ
Dielectric Strength 200VAC@50Hz
Speed 100rpm
Lifetime 5 million revolutions
Torque Max. 22 gf.cm
Working Temperature -40℉ to +176℉(-40℃ to +80℃)
Storage Temperature -40℉ to +176℉(-40℃ to +80℃)
Protection Level IP51
Relative Humidity 60±3%
Contact Material Precious Metal
Housing Material Aluminum Alloy
Lead Wire Teflon Wire
