2 Channel Gigabit Ethernet Slip Ring 60rpm With USB Chansmission
2 Channel Gigabit Ethernet Slip Ring 60rpm With USB Chansmission
2 Channel Gigabit Ethernet Slip Ring 60rpm With USB Chansmission
2 Channel Gigabit Ethernet Slip Ring 60rpm With USB Chansmission
Specifications
Brand Name :
Panlink
Model Number :
PSR-C24-4S2G
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Price :
Negotiable
Delivery Time :
4 Weeks
Supply Ability :
40 Million a Year
Name :
Gigabit Ethernet Slip Ring
USB Connections :
1 USB transmission
Ethernet Connections :
2 Channels 1000M baseT
MTTR :
≤0.5h
MTBF :
≥40000h
Length :
42.53mm
Contact Material :
Precious Metal
Description

2 Channel Gigabit Ethernet Slip Ring Capable of USB Chansmission

Ethernet+USB

Feature:Application:
• 1 USB transmission• Industrial Automation and Manufacturing
• 2 Channels 1000M baseT Ethernet• Security and Video Surveillance
• MTTR: ≤0.5h• Special Equipment and High-End Applications
• MTBF: ≥40000h• Testing and Demonstration Equipment
• Length: 42.53mm


2 Channel Gigabit Ethernet Slip Ring 60rpm With USB Chansmission

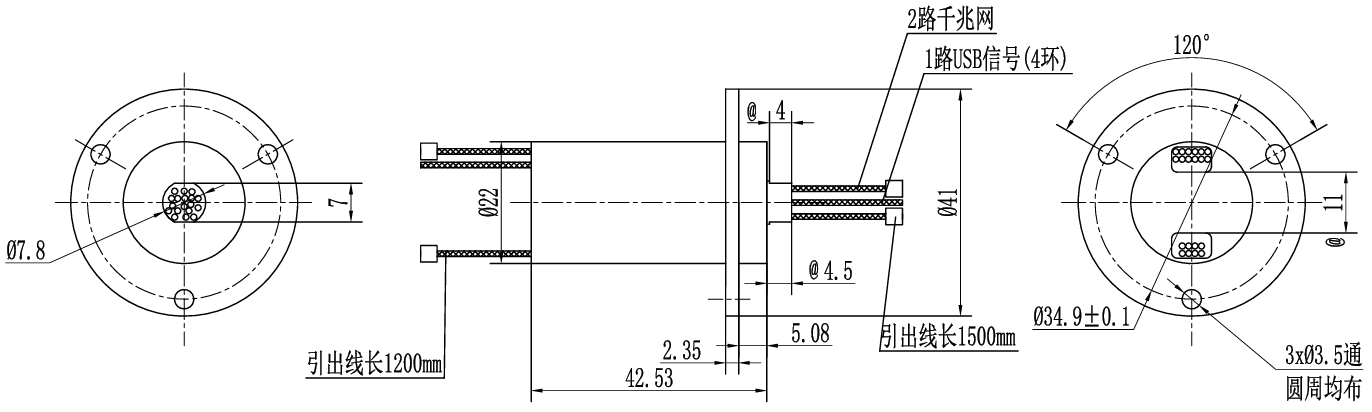

ModelGbit EthernetSignal Channels

OD x L

inch(mm)

CircuitsVoltageTotal Rings
PSR-C24-4S2G2(1x)USB

0.87″ x 1.67″

(22 x 42.53)

1A, 2A240VAC24
Specification
Model PSR-C24-4S2G
Capsule Length 42.53mm
Ethernet Connections 2 x 1000BaseT Ethernet
Insulation Resistance 500MΩ@500VDC
Dielectric Strength 500VAC@50Hz
Operating Speed 60rpm
Contact Material Precious Metal
Housing Material Aluminium Alloy
Working Temperature -40℃~+50℃
Storage Temperature -45℃~+65℃
Humidity 93%
