2 EtherCAT Channels Slip Ring with 0.51inch Bore and 300rpm Rotation Speed
2 EtherCAT Channels Slip Ring with 0.51inch Bore and 300rpm Rotation Speed
2 EtherCAT Channels Slip Ring with 0.51inch Bore and 300rpm Rotation Speed
2 EtherCAT Channels Slip Ring with 0.51inch Bore and 300rpm Rotation Speed
2 EtherCAT Channels Slip Ring with 0.51inch Bore and 300rpm Rotation Speed
2 EtherCAT Channels Slip Ring with 0.51inch Bore and 300rpm Rotation Speed
Specifications
Brand Name :
Panlink
Model Number :
PSR-F15-2P3S2E
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
40 Million a Year
Delivery Time :
4 Weeks
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Ethernet Channels :
2 × EtherCAT Channels
Voltage Rating :
48VDC
Through Bore :
0.51inch
Rotating Speed :
300rpm
Description

2 Group EtherCAT Slip Ring with 0.51inch Bore

PSR-F15-2P3S2E

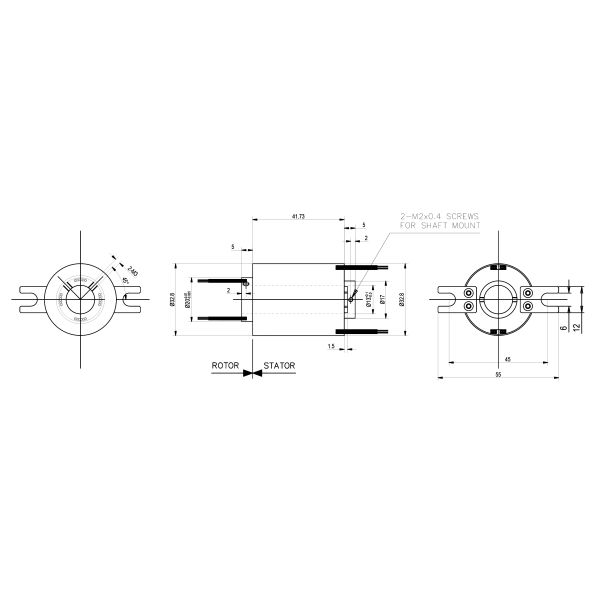

Drawing (Dimensions in Millimeters)

2 EtherCAT Channels Slip Ring with 0.51inch Bore and 300rpm Rotation Speed

Specification:

Channels 2 for Signal Transmission, 2 for Power Transmission, 2 Groug EtherCAT
Electrical Specifications
Voltage Rating 48VDC
Current Rating Power: 5A, Signal: 2A
Insulation Resistance Max 200MΩ @ 500VDC
Dielectric Noise 300VAC @ 50Hz, 60s
Electric Noise Max 10mΩ
Lead Cable Power: AWG22 Teflon, Signal: AWG26 Teflon, CAT6
Mechanical Specifications
Working Life 12 million revolutions
Rotating Speed 300rpm
Operating Temperature -4℉ to +158℉ (-20℃ to +70℃)
Storage Temperature -13℉ to +176℉ (-25℃ to +80℃)
Operating Humidity 0~95%RH
Torque 0.5N•m
Contact Material Precious Metal
Housing Material Aluminum Alloy
Protection Degree IP54(higher or lower on request)
Shock GB/T 2423.5 (IEC 60068-2-27)
Vibration GB/T 2423.10 (IEC 60068-2-6)
