Plug And Play Ethernet Slip Ring 250rpm Video Connection HD SDI Slip Ring
Plug And Play Ethernet Slip Ring 250rpm Video Connection HD SDI Slip Ring
Plug And Play Ethernet Slip Ring 250rpm Video Connection HD SDI Slip Ring
Plug And Play Ethernet Slip Ring 250rpm Video Connection HD SDI Slip Ring
Specifications
Brand Name :
Panlink
Model Number :
PSR-C36-6P8S1G-SDI
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Name :
Ethernet Slip Ring
Ethernet Connections :
1000BaseT
Video Connections :
HD-SDI
Circuits :
Power: 6 X 5A; Signal: 8 X 2A
Speed :
250rpm
Housng Material :
Aluminium Alloy
Contact Material :
Precious Metal
Price :
Negotiable
Delivery Time :
4 Weeks
Supply Ability :
40 Million a Year
Description

1000BaseT Ethernet and HD Video Capability Plus 5 amp Power and 2 amp Signal Circuits

Plug-and-play Ethernet and HD-SDI video connection

Features Typical Applications
• 1000BaseT Ethernet • Video over Ethernet
• Compatible with HD-SDI • Motor control
• Speeds up to 250 RPM • POE (Power-Over-Ethernet)
• Circuits: Power: 6 X 5A; Signal: 8 X 2A • High definition video security
• Housing Material: Aluminium Alloy • Pan / tilt systems
• Caontact Material: Aluminium Alloy • Rotating high definition video displays

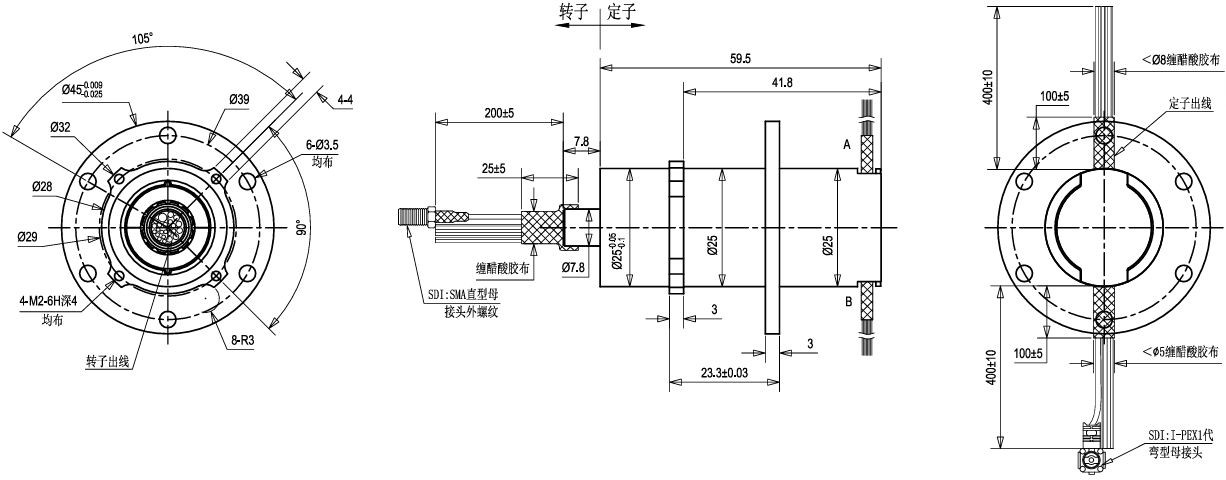

Plug And Play Ethernet Slip Ring 250rpm Video Connection HD SDI Slip Ring

Specification
Model PSR-C36-6P8S1G-SDI
Capsule Length 59.5mm
Total Rings 23
Circuit 8 x Signal(2A); 6 x Power(5A); 1 x 1000BaseT Ethernet
Voltage 240VAC
Insulation Resistance 500MΩ@500VDC
Electrical Noise 20mΩ max
Dielectric Strength 500VAC@50Hz
Operating Speed 250rpm
Torque ≤44gf.cm
Contact Material Precious Metal
Housing Material Aluminium Alloy
Working Temperature -40℃~+80℃
Storage Temperature -40℃~+80℃
Humidity 90±5%(30℃+5℃)
Protection Level IP51
Lifetime 10 million revolutions
