Specifications
Type :
Testing Machine
Accuracy Class :
Standard Accuracy
Accuracy :
Within ±15%
Brand Name :
HAIDA
Place of Origin :
Guangdong, China
Application :
Sensitivity testing, Dust Testing
customized support :
OEM, ODM
power :
AC380V / 50 HZ, Approx. 5 KW
Protection Class :
/
Voltage :
380 V
warranty :
1 Year
Specifications of square mesh sieve :
Mesh hole 75um, mesh metal wire diameter 50um
Talcum powder amount :
2kg/ m³
Airflow speed :
No more than 2m/s
Door :
Left open door with tempered glass door
Vacuum pump capacity :
60-600 L/H
Fan :
Centrifugal fan
Chamber material :
SUS#304 stainless steel
External material :
Spray Paint Type
Internal dimension(W*D*H) :
800*800*800mm
External dimension(W*D*H) :
1300*1100*1800mm
MOQ :
1
Description
Product Description
PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment



8089-HD

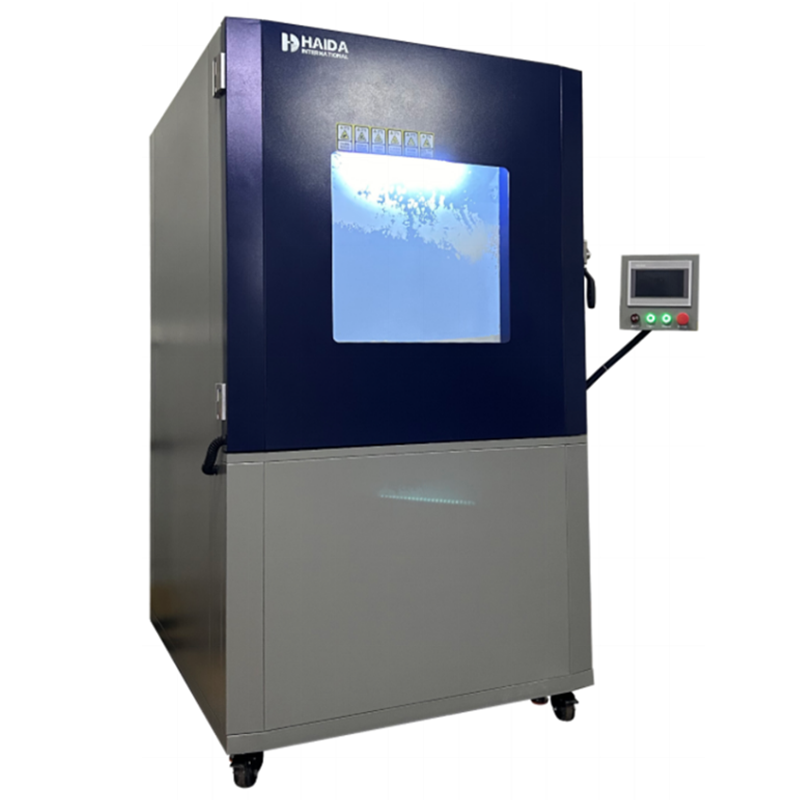

Bypass Diode Dust Test Chamber(IP6X)
1, Chamber material: SUS#304 stainless steel; 2, Transparent window is convenient to observe specimen during testing; 3, Blow fan adopts stainless steel shell, high sealing and wing speed, low noise; 4, Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.
PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment

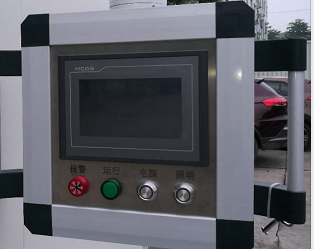

Control panel


PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment

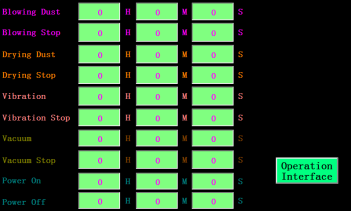

PLC operation interface


PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment

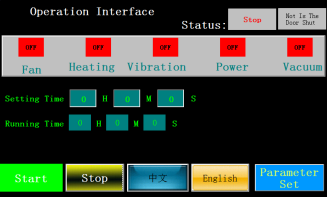

PLC operation interface


Specification

GENERL SPECIFICATIONS

Packaging Dimensions: (WxDxH) 1700*1500*2200mm Power supply source: 3-phase, AC380V±10%,50Hz (can be appointed) Gross Weight: 400kg HS Code: 8479899990
Item
Specification
Model
8089-HD
Internal dimension(W*D*H)
800*800*800mm
External dimension(W*D*H)
1300*1100*1800mm
Internal material
SUS304 Stainless steel
External material
Spray Paint Type
Specifications of square mesh sieve
Mesh hole 75um, mesh metal wire diameter 50um
Talcum powder amount
2kg/ m³
Airflow speed
No more than 2m/s
Door
Left open door with tempered glass door
Controller
PLC Touch Screen controller, programmable to set as below cycle:
a. Blowing dust time (Stop/Blow) m/s
b. Cycle time: can be adjusted
c. Pre-set test time: 0s ~99m99s
Vacuum system
Pressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump
Vacuum pump capacity
60-600 L/H
Fan
Centrifugal fan
Safety protection devices
Meter over-temperature function, Phase shortage protection, Power short-circuit protection
PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment

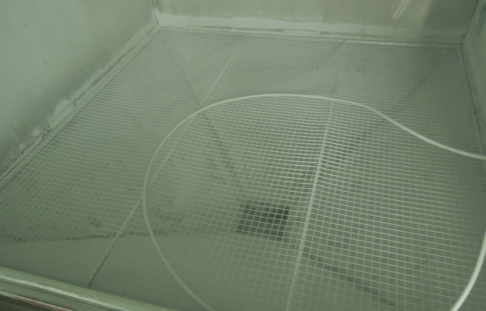

Internal chamber with sample tray & Hopper for dust collection
PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment

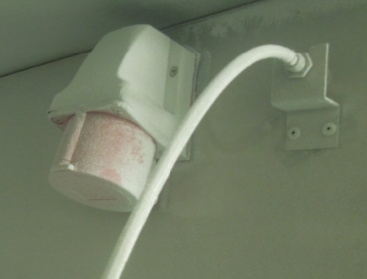

Anti-dust socket for sample connect to power source
PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment
Mesh and parts for filtering test dust
PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment






DESIGN DRAWING AS PER IEC60529 & IEC20653
