Specifications
Type :
Testing Machine
Accuracy Class :
Standard Accuracy
Accuracy :
Within ±15%
Brand Name :
HAIDA
Place of Origin :
Guangdong, China
Application :
UV Testing, Sensitivity testing
customized support :
OEM, ODM
power :
AC380V / 50 HZ, Approx. 5 KW
Protection Class :
/
Voltage :
380 V
warranty :
1 Year
Irradiance Non-uniformity :
Within ±15%
Measurement Uncertainty :
Within ±15%
Irradiance Ratio :
280~400nm, 3~10% within the 280nm ~ 320nm wavelength range
Internal Chamber Material :
Imported fully reflective silver-coated aluminum plate
External Chamber Material :
Aluminum profile frame
Cooling Method :
Air Cooling
Control System :
PLC + Touch Screen
Effective Irradiation Area :
900 * 900 mm (Can accommodate 9 pieces of 300*300 mm samples)
External dimension :
Approx.1620*1120*2000mm(L*W*H)
Power Supply :
AC380V / 50 HZ, Approx. 5 KW
MOQ :
1
Description
Product Description
UV Pre-Conditioning Testing Chamber Solar Panel Ultraviolet Damage Sensitivity Testing Equipment Machine UV Pretreatment Tester




HD-E802-3

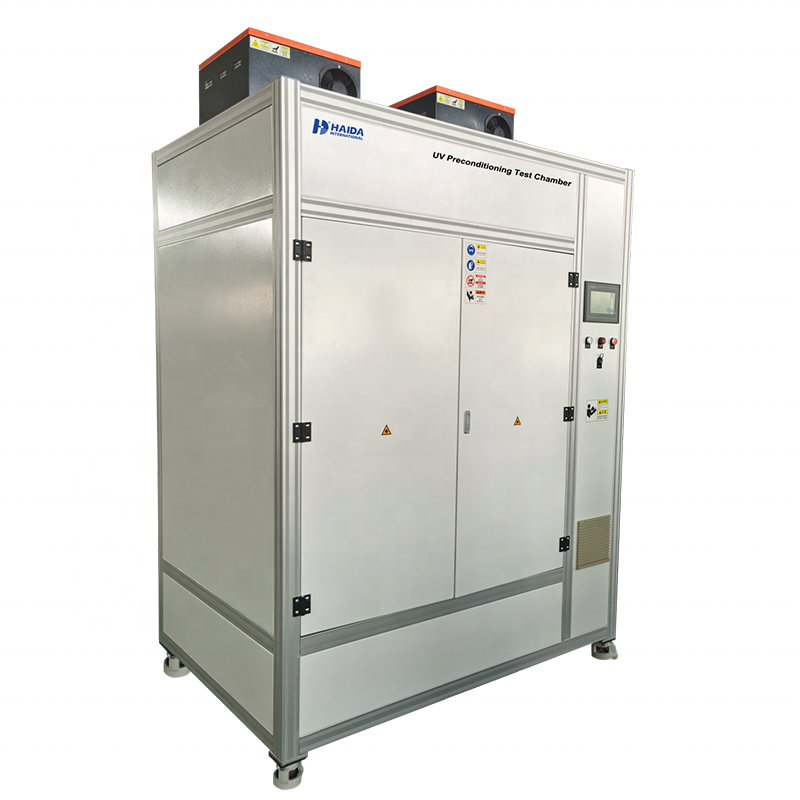

UV Pre-Conditioning Testing Chamber
UV preconditioning test is an irradiance test that determines how susceptible solar panels are to UV deterioration and, as a result, performance loss. This high condition test is frequently performed before the thermal cycle and humidity freeze tests during solar panel certification and research.
UV Pre-Conditioning Testing Chamber Solar Panel Ultraviolet Damage Sensitivity Testing Equipment Machine UV Pretreatment Tester

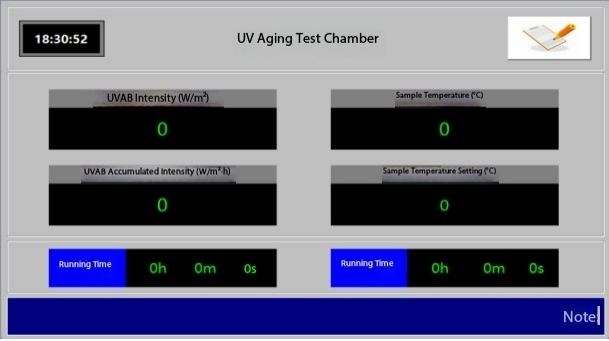

Main Interface


UV Pre-Conditioning Testing Chamber Solar Panel Ultraviolet Damage Sensitivity Testing Equipment Machine UV Pretreatment Tester

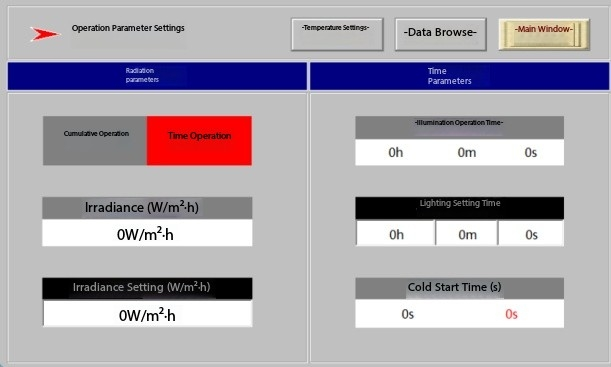

Parameter Settings


Specification
Item
Specification
Effective Irradiation Area
900 * 900 mm (Can accommodate 9 pieces of 300*300 mm samples)
External dimension
Approx.1620*1120*2000mm(L*W*H)
Irradiance Non-uniformity
Within ±15%
Measurement Uncertainty
Within ±15%
Irradiance Ratio
280~400nm, 3~10% within the 280nm ~ 320nm wavelength range
Internal Chamber Material
Imported fully reflective silver-coated aluminum plate
External Chamber Material
Aluminum profile frame
Cooling Method
Air Cooling
Control System
PLC + Touch Screen
Power Supply
AC380V / 50 HZ, Approx. 5 KW
Software Functions
• Real-time monitoring of UV intensity, component temperature, etc.
• System automatically collects and stores data; can export to Excel.
• Display on monitoring screen: Temperature parameters, UV Intensity, Accumulated UV Dose, Running Time, Operation Mode, etc.
• Specific Display Items:
- Ambient Temperature: Temperature inside the chamber.
- Component A Temperature: Temperature at point A of the component.
- Component B Temperature: Temperature at point B of the component.
- UV Accumulated Dose AB: The total accumulated irradiation dose.
UV Pre-Conditioning Testing Chamber Solar Panel Ultraviolet Damage Sensitivity Testing Equipment Machine UV Pretreatment Tester

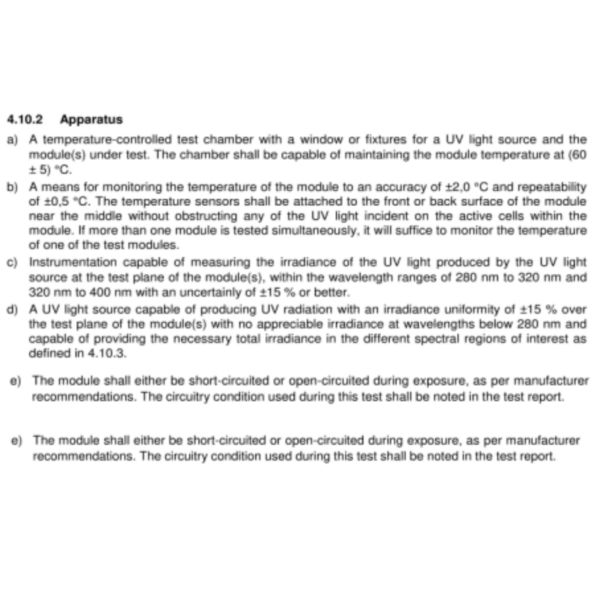

Test Requirements

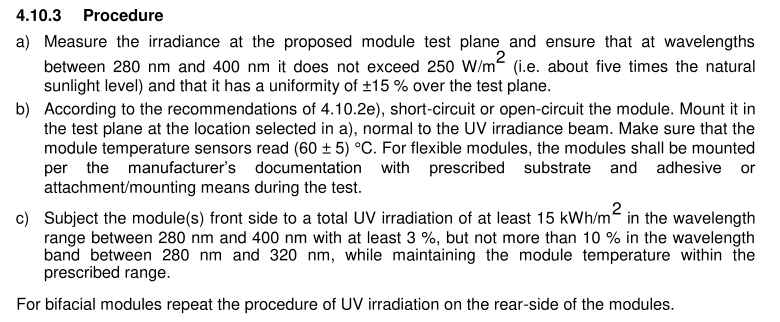

Test Procedures

UV Pre-Conditioning Testing Chamber Solar Panel Ultraviolet Damage Sensitivity Testing Equipment Machine UV Pretreatment Tester

TEST STANDARD

IEC 61215-2:2021 MQT 10 UV Preconditioning Test
