PV Bypass Diode Thermal Testing Machine Thermal Tester Photovoltaic Module Thermal Effect Protective Function Testing Equipment



HD-E918

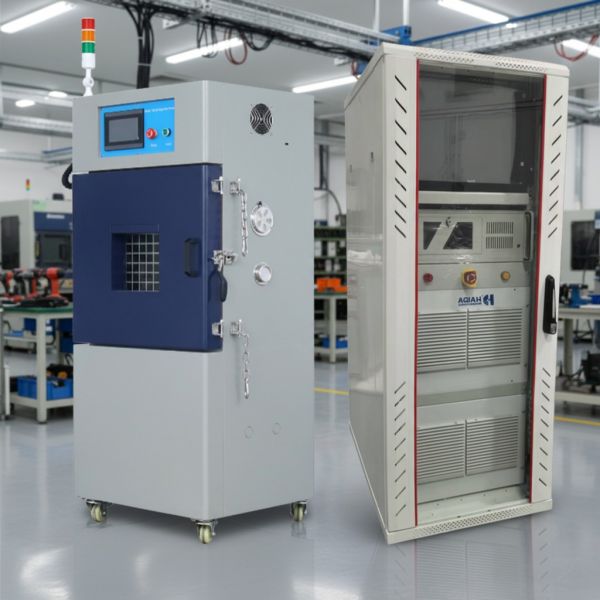

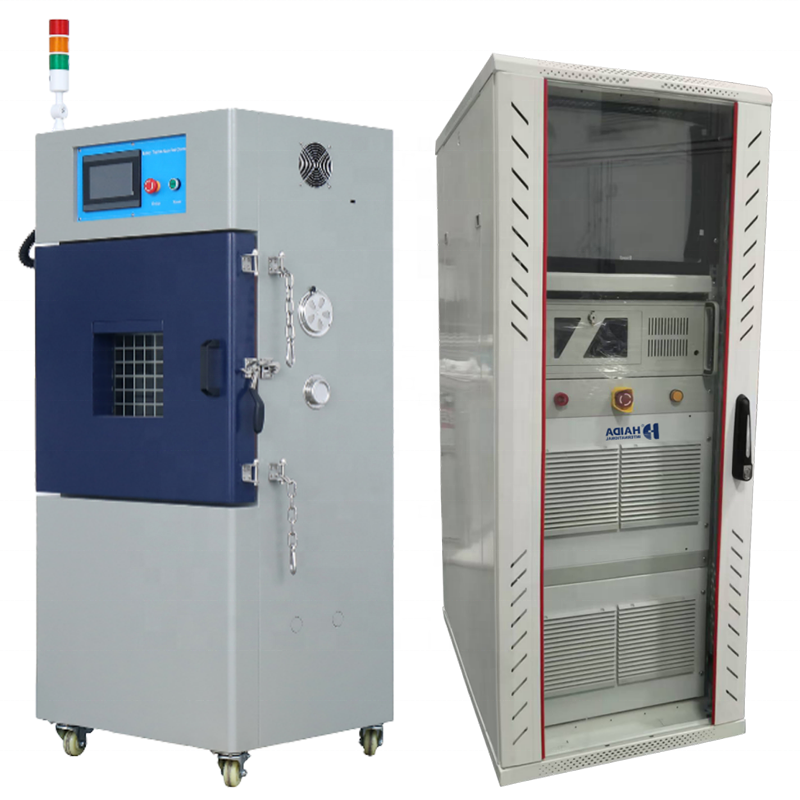

Bypass Diode Thermal Test Machine
Bypass Diode Thermal Test Machine mainly used to detect the protective performance and heat generation of bypass diodes in photovoltaic modules under hotspot effects.
Specification
PART1 : BYPASS DIODE TEST PARAMETERS
Item
Specification
Pulse Power Supply
20μs~999s(adjustable)
Current Range
0-60A; Deviation ±2%
Voltage Range
0-5V; Deviation ±2%
DC Power Supply
Current Range 0-60A; Deviation ±1%
Voltage Range
0-20V; Deviation ±1%
Temperature Acquisition Channel Accuracy
≤1℃
Voltage Acquisition Accuracy
≤0.2V
Data Acquisition and Analysis System
A . Includes temperature and voltage acquisition channels;
B. Software automatically fits curves based on the relationship between temperature and voltage
Functional Test
Diode I-V curve <1s
Thermal Runaway Test
Forward current → Reverse voltage ≤10ms
Power
Single phase, 220V, 50Hz
PART 2 : THERMAL OVEN PARAMETERS
Item
Specification
Internal dimension
400*400*400mm(W*D*H)
External dimension
760*690*1720mm(W*D*H)
Temperature range
RT~200C
Temperature display accuracy
0.1 C
Temperature stability
± 1.0 C
Temperature uniformity
± 2 C
Temperature rise time
5 C/ min in average
Controller
Touch screen control
Inner chamber material
stainless steel plate
External chamber material
Cold rolled steel plate baking varnish treatment
Observation window
250*250mm
Lighting device
Machine is equipped with internal lighting, easy to observe the state of the sample being tested;
Box door
Single door left open, box door side is equipped with explosion-proof chain
Test holes
The right side of the device has 2 test holes with a diameter of 50mm, easy to put in the temperature, voltage, current, and other
collection lines;
Insulation material
High efficiency compressed glass wool;
Insulation device
No fuse switch, over-temperature protection switch, fuse;
Safety devices
Equipped with over-temperature alarm;
Air circulation system
Convection air circulation system
Pressure relief port
Opening size 200*200mm, located on the back side of the box, when the specimen explodes, the pressure relief port pops open to
unload the pressure
Power
Single phase 220V, 50Hz
Weight
Approx. 170kg
TEST STANDARD
Items
Description
Test Standard
IEC61215-2: 2021 MQT 8 Bypass Diode Testing
IEC 62979:2017 Photovoltaic modules – Bypass diode-Thermal runaway test
IEC 63126:2020 Guidelines for qualifying PV modules, components and materials for operation at high temperatures
