Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
/
Brand Name :
HAIDA
Place of Origin :
Guangdong, China
Application :
Aging Testing, Corrosion Testing, Air Tightness Testing
customized support :
OEM, ODM
power :
220V 50/60Hz
Protection Class :
/
Voltage :
220 V
warranty :
1 Year
Temperature range :
+105C~147C (Vapor temperature)
Temperature fluctuations :
±2C
Humidity range :
75%~100% (vapor humidity)
Humidity control stability :
±3%RH
Humidity distribution average :
±5%RH
Operating Pressure :
1.2~2.89kg(including l atm)
Time setting range :
0~999hours
Pressurization time :
From 0.00kg~1.04kg/cm2,approx.45min
Controller model :
PLC control
Internal dimension :
Diameter 400*L500mm; Circular type chamber
MOQ :
1
Description
Product Description

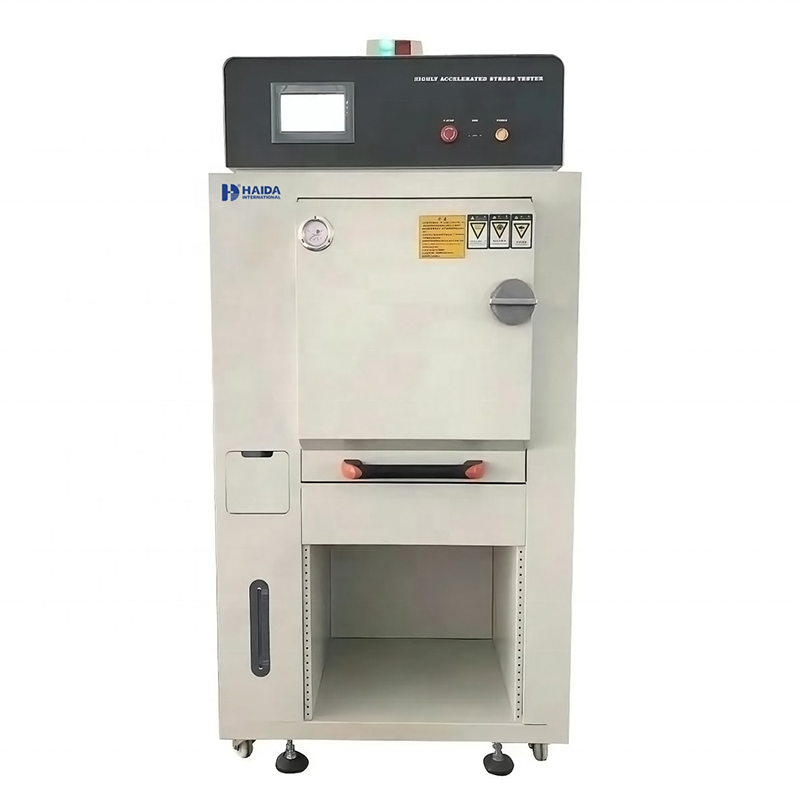

HAST High Pressure Accelerated Aging Testing Chamber Corrosion Resistance and Aging Tester Equipment Air Tightness Test Machine

HD-E819

HAST High Pressure Accelerated Aging Testing Chamber
This product is suitable for national defense, aerospace, automotive parts, electronic parts, circuit boards, lighting products and other products of the sealing performance. in product design stage, using quickly expose the defects and weaknesses of the products. test the resistance to nastiness and air tightness of the products.

Feature

1. Adopt imported high-temperature solenoid valve double-way structure to reduce the failure rate of use. 2. Independent steam generation chamber to avoid direct impact of steam on product, resulting in local damage to the product. 3. The labor-saving structure of the door lock solves the shortcomings of the difficult locking of the disc handle of the product. 4. Exhaust cold air before the test; The design of the exhaust cold air in the test (air discharge in the test barrel) improves the pressure stability. 5. Ultra-long experimental operation time, 1000 hours of long-term experimental machine operation. 6. Water level protection, through the water level sensor in the test room to detect the protection. 7. The pressure resistance design of the water tank, the pressure resistance of the box body (140°C) is 2.65kg, and the water pressure test is 6kg. 8. Two-stage pressure safety protection device, using two-stage combination controller and mechanical pressure protection device. 9. Safety protection pressure discharge button, emergency safety device two-stage automatic pressure discharge button 10. Full touch controller, support U disk export history

Specification
Items
Description
Internal dimension
Diameter 400*L500mm; Circular type chamber
External dimension
Approx. 1150*980*1850mm(W*D*H)
Internal material
SUS# 316 with thickness 3 mm
External material
Stainless steel plate material
Insulation material
Rock wool and rigid polyurethane foam insulation
Steam chamber heating tube
Titanium tube heating, never rust
Controller model
PLC control
Temperature range
+105C~147C (Vapor temperature)
Temperature fluctuations
±2C
Humidity range
75%~100% (vapor humidity)
Humidity control stability
±3%RH
Humidity distribution average
±5%RH
Operating Pressure
1.2~2.89kg(including l atm)
Time setting range
0~999hours
Pressurization time
From 0.00kg~1.04kg/cm2,approx.45min
Power supply
Single phase 220V 50/60Hz
Safety protection
a. Imported high-temperature resistant sealed solenoid valve, using a dual circuit structure to ensure that the pressure is not
leaking.
b. The whole machine is equipped with overpressure protection, over-temperature protection, one key pressure relief, manual
pressure relief multiple safety devices, to ensure the use and safety of users to the maximum extent.
c. Counter-pressure door locking device, when there is pressure inside the test chamber, the door of the test chamber can not be
opened.


Temp. & Vapor Humid.
