Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
/
Brand Name :
HAIDA
Place of Origin :
Guangdong, China
Application :
Temperature and Current Testing
customized support :
OEM, ODM
power :
/
Protection Class :
/
Voltage :
220 V
warranty :
1 Year
Power Supply Type :
DC Constant Current Power Supply
Power Supply Number :
12 units
Software features 1 :
Time control: start/end time settings, auto-stop function
Software features 2 :
Data export: saves in excel format, reusable historical data export
Software features 3 :
Real-time display: I/V/T curve visualization
Software features 4 :
Alarm system: logs time, object, event description for fault tracing
Retention period :
displays and sets the retention period for saved data
MOQ :
1
Description
Product Description
Circuit Continuity Monitoring System Temperature and Current Testing Machine Circuit Continuity Monitoring Testing Equipment

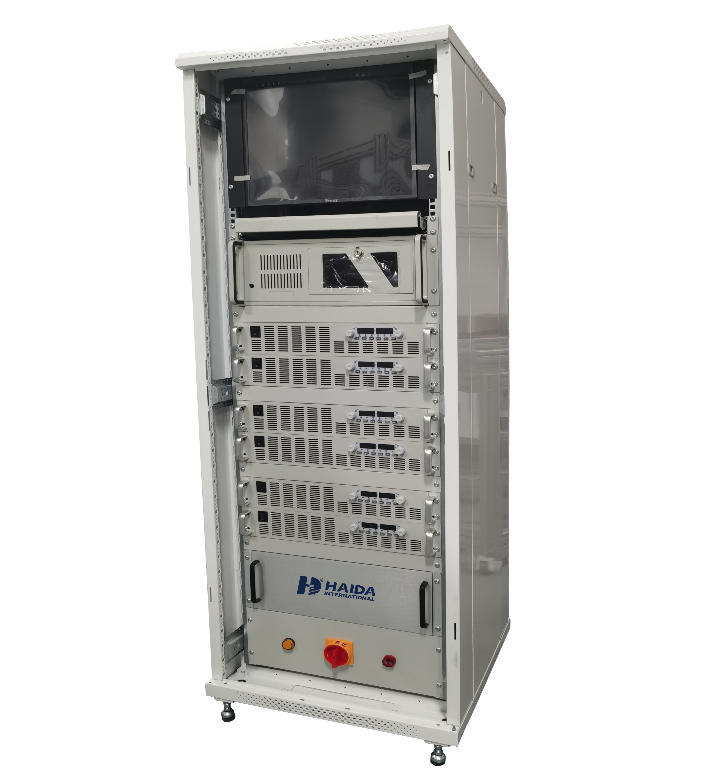

HD-E920

Circuit Continuity Monitoring System
This circuit continuity monitoring system is combined with rapid thermal cycle test room to monitor the product temperature and current.
Specification
Power Supply Type
DC Constant Current Power Supply
Power Supply Number
12 units
Current Switching Function

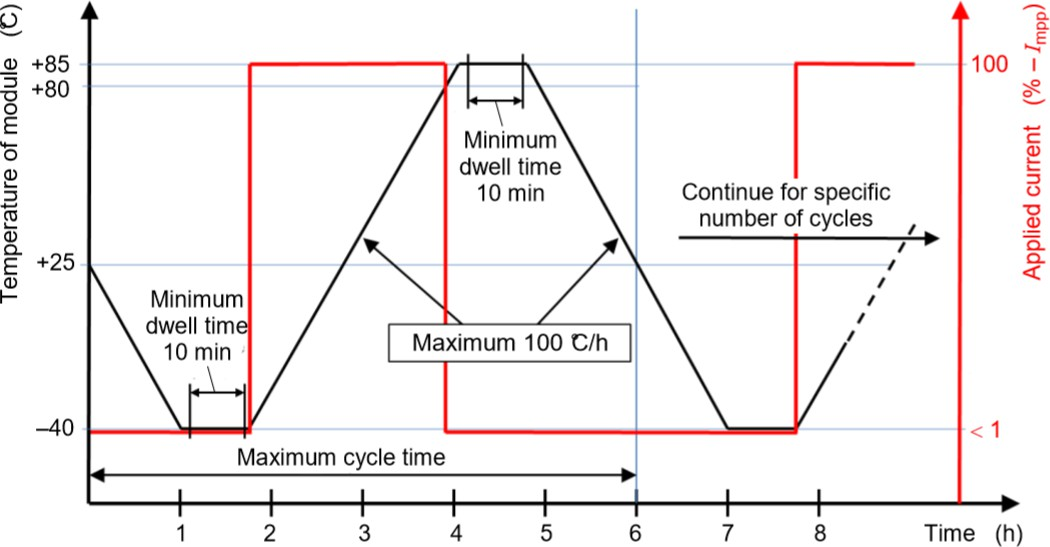

IEC 61215-2:2021 automatically switches current according to the following procedure (red line in the figure below):
Test requirement part 1

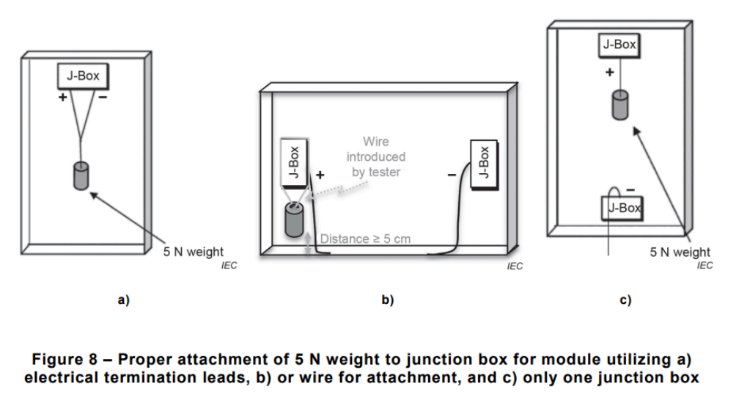

A 5 N weight capable of being attached to the electrical termination leads of the module
Test requirement part 2
Connect the temperature monitoring equipment to the temperature sensors. Connect each module to the appropriate current source by
connecting the module’s positive terminal to the positive terminal of the power supply and connecting the second terminal
accordingly. During the thermal cycling test, set the continuous current during the heating phase to the technical specification
current (see 4.11.2d), for a temperature range from −40 °C to +80 °C.
During the cooling phase, at the −40 °C dwell stage and when the temperature is above 80 °C, the continuous current shall be
reduced to no more than 1.0% of the measured STC peak power current for monitoring continuity. If the temperature rises too
quickly at the lowest temperature (exceeding 100 °C/hour), the application of current may be delayed until the temperature reaches
−20 °C.
Software features
Time control: start/end time settings, auto-stop function

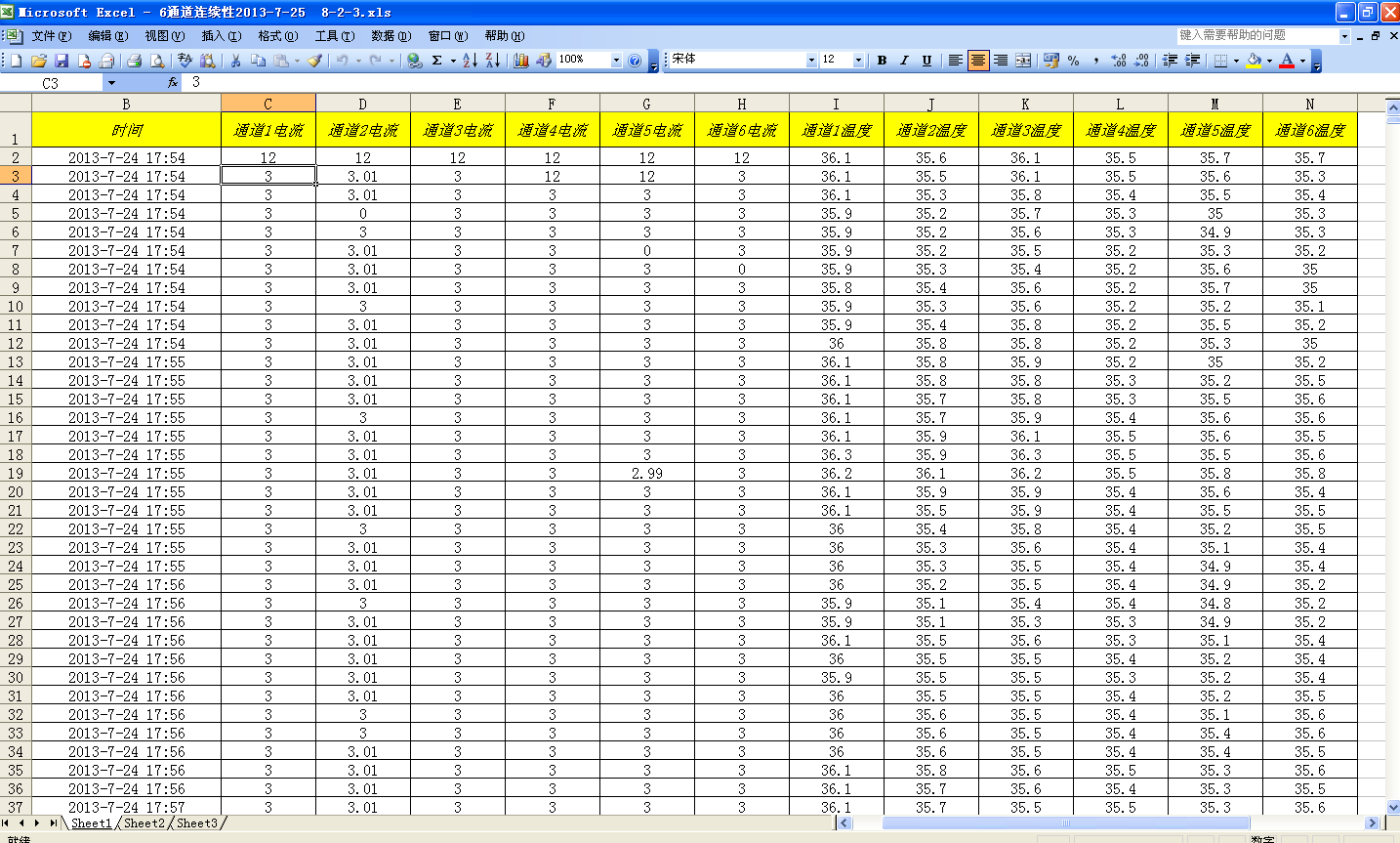

Data export: saves in excel format, reusable historical data export
Real-time display: I/V/T curve visualization
Alarm system: logs time, object, event description for fault tracing
Retention period: displays and sets the retention period for saved data. The default value is 60 seconds. Users may
Circuit Continuity Monitoring System Temperature and Current Testing Machine Circuit Continuity Monitoring Testing Equipment
Circuit Continuity Monitoring System Temperature and Current Testing Machine Circuit Continuity Monitoring Testing Equipment
Circuit Continuity Monitoring System Temperature and Current Testing Machine Circuit Continuity Monitoring Testing Equipment
Company Profile
Circuit Continuity Monitoring System Temperature and Current Testing Machine Circuit Continuity Monitoring Testing Equipment
Our Partners
Circuit Continuity Monitoring System Temperature and Current Testing Machine Circuit Continuity Monitoring Testing Equipment
Our Advantages
Our Service
* If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.
* We can offer operation video and English operation muanual.
* We can provide video-con.

Onsite Service:
* Device installation;
* Equipment Operation Test Technology training;
* Equipment Calibration;
* Daily maintenance and maintenance of equipment
* Free technical training for visiting factories
* 24-hour Online contact
* Free software upgrades
* Free information:
* Product Instruction;
* Product operation instruction/video;
* Experiment Test (test application, test report)

Device Problem Handling:
* Social media 24 hours online communication;
* Mail Seamless Docking;
* Video Conferencing;
* Artificial free door-to-door service
