Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
0.5% F.S
Brand Name :
Haida
Place of Origin :
Guangdong, China
Application :
Universal Testing, Strength Testing, Tensile Testing, Material Connection Strength Testing, PV Module Testing
customized support :
OEM, ODM
power :
/
Protection Class :
/
Voltage :
220 V
warranty :
1 year
Frame capacity :
2000kg
Load cell brand :
Germany brand load cell for high accuracy, 2000kg (500,1000kg are opti
Load accuracy :
0.5% F.S
Control system :
PC with windows 7 system
Motor :
Panasonic servo motor w/AC variable speed drive system
Force reading :
kgf, Ibf, N, KN, T etc
Vertical test space :
1200mm including fixture
Horizontal test space :
≤400mm
Test speed :
0.1~500mm/min (adjustable)
Curves display :
Load- elongation, Elongation-time, Time-elongation, Stress-strain
MOQ :
1
Price :
$1,679-1,988
Description
Product Description
PV Module Weld Material Tensile Testing Machine Solar Panel Welding Material Connection Strength Tester Tensile Test Equipment

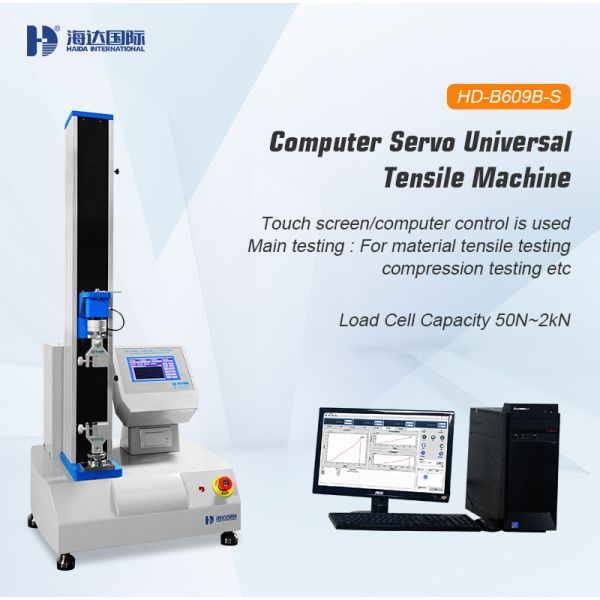

Tensile Test Machine

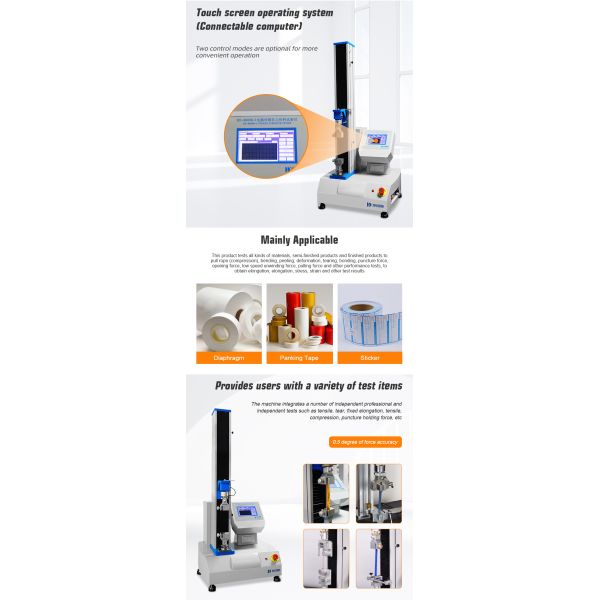

Computer Servo Universal Tensile Test Machine is a mechanical testing machine used for static load, tension, compression, bending, shear, tearing,peeling and other mechanical properties of instruments and equipment for various materials. Universal tensile test machine is suitable for plastic sheets, pipes, Various physical and mechanical performance tests for profiled materials, plastic films,rubber, wire and cable, steel, glass fiber and other materials are developed for material testing, teaching research, quality control and other indispensable testing equipment. Tensile machine fixtures are used as instruments. An important component,
different materials require different fixtures, which is also an important factor in whether the test can proceed smoothly and the accuracy of the test results.
Specification
Frame capacity
200kg
Load cell brand
Germany brand load cell for high accuracy
200kg (5,10,50,100kg are optional)
Load accuracy
0.5% F.S
Control system
LCD with build-in printer /PC with windows 7 system
Motor
Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod
Force reading
kgf, Ibf, N, KN, T etc
Vertical test space
900mm including fixture
Test speed
0.1~500mm/min (adjustable)
Software
TM 2101
Curves display
Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display
Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…

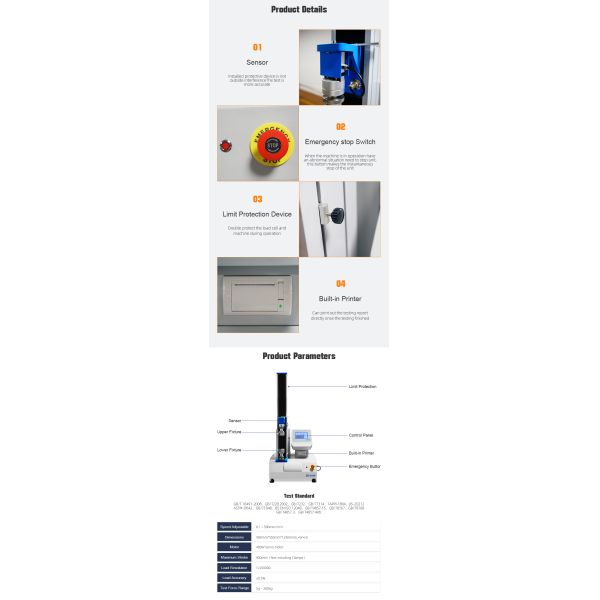

Safety features
E-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat
APPLICATIONS:
1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
3. Deformation under defined load: Test deformation under defined load of tested sample
4. Load under defined deformation: Test load under defined deformation of tested sample
5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength,
compression strength, etc.

GENERL SPECIFICATIONS:
Estimated Packaging Dimensions: (W*D*H) 630*630*1400mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Estimated Gross Weight: 120kg
HS Code: 9024800000
PV Module Weld Material Tensile Testing Machine Solar Panel Welding Material Connection Strength Tester Tensile Test Equipment
PV Module Weld Material Tensile Testing Machine Solar Panel Welding Material Connection Strength Tester Tensile Test Equipment
PV Module Weld Material Tensile Testing Machine Solar Panel Welding Material Connection Strength Tester Tensile Test Equipment
Tensile Testing Machine
PV Module Weld Material Tensile Testing Machine Solar Panel Welding Material Connection Strength Tester Tensile Test Equipment
PV Module Weld Material Tensile Testing Machine Solar Panel Welding Material Connection Strength Tester Tensile Test Equipment
PV Module Weld Material Tensile Testing Machine Solar Panel Welding Material Connection Strength Tester Tensile Test Equipment
PV Module Weld Material Tensile Testing Machine Solar Panel Welding Material Connection Strength Tester Tensile Test Equipment
Company Profile
PV Module Weld Material Tensile Testing Machine Solar Panel Welding Material Connection Strength Tester Tensile Test Equipment
FAQ
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from
our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can
provide video-con

Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:
www.haidatestequipment.com
If you want to know more information...
Please leave a message below and click " CONTACT SUPPLIER "
Thanks for your time and attention!
