Specifications
Type :
test chamber
Accuracy Class :
High Accuracy
Accuracy :
≤±0.5°C
Brand Name :
HAIDA
Place of Origin :
Guangdong, China
Application :
Corrosion test, Photovoltaic Module Testing, Aging Testing
customized support :
OEM, ODM
power :
4KW
Protection Class :
Automatic
Voltage :
220 V
warranty :
1 year
Different Cpacity :
108L, 270L, 600L, 800L...(Can be Customized)
Temperature range :
RT+5℃ ~ 55℃
Controller :
PLC controller , Touch-tone controller
Temp. fluctuation & uniformity :
fluctuation 0.5℃, uniformity 2℃
Salt Spray Settlement :
1.0-2.0ml/80cm.hr
Spray method :
Continuous and periodic are optional (PLC type)
Spray System :
Tower spray device with no crystallization nozzle
Test time :
1-9999(S,M,H) adjustable
Power supply :
AC220V 10% 50HZ
Design criteria :
CNS, JIS, ASTM
MOQ :
1
Price :
$1,890-2,080
Description

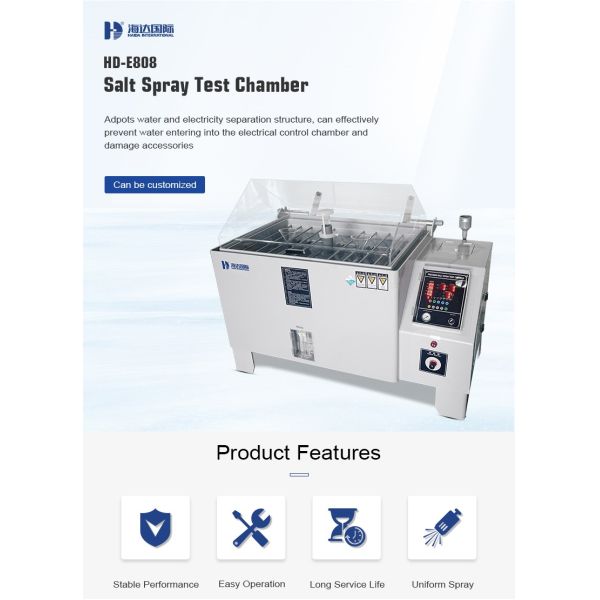

PV Salt Spray Corrosion Test Chamber

Product Description

Lab High Configuration Salt Spray Corrosion Test Chamber adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.

Lab PV Salt Spray Tester Salt Spray Corrosion Testing Chamber Machine Photovoltaic Module Salt Spray Aging Testing Equipment

Technial Parameters

Model

HD-E808

Inner Box Size (L*W*H)

60*45*40 cm (Can be customized)

Outside Box Size(L*W*H)

107*60*118 cm (Can be customized)

Equipment Material

Both inside & outside shell adopt imported P.V.C rigid plastic board,

and tank cover uses imported transparent P.V.C. rigid plastic board

Temperature Range

RT+5°C~55°C

Temperature Fluctuations

≤±0.5°C

Temperature Uniformity

≤±2°C

Temperature Precision

±1°C

Test Chamber Temperature

Salt Spray Method (NSS ACSS)35±1°C
Corrosion-resistant Testing Method(CASS)50±1°C

Saturated air Barrel Temperature

Salt Spray Method (NSS ACSS)47±1°C
Corrosion-resistant Testing Method(CASS)63±1°C

Brine Temperature

35°C±1°C

Spray Quantity

1.0~2.0 ml / 80cm2 / hr

PH

Salt Spray Method (NSS ACSS6.5~7.2)
Corrosion-resistant Testing Method(CASS)3.0~3.2

Lab Volume

108L (Can be customized)

Brine Tank Capacity

15L

Power

1#, AC220V,10A

Multiple Safety Protection Devices

Current discharge protection, over pressure protection,

over temperature protection, over load fuse protection

Accessories

Testing Salt/ Measuring tank/ Equipment each 1 set

Standards

CNS: 3627, 3385, 4159, 7669, 8886;
JIS: D0201, H8502, H8610, K5400, Z2371;
ISO: 3768, 3769, 3770;
ASTM: B117, B268

Lab PV Salt Spray Tester Salt Spray Corrosion Testing Chamber Machine Photovoltaic Module Salt Spray Aging Testing Equipment

Control system

  • Temperature control:Control the chamber temperature, according to standard, salt test is 35°C, and corrosion test is 50°C.
  • Saturated air barrel temperature controller:Control the saturated air barrel temperature, salt test is 47°C, corrosion test is 63°C.
  • Timer:Adjustable, can set the time in 0.1s~9999hr free, shut down automatically when the time is over.
  • Running timer:Direct read 0-9999.9hr, record the whole work hours.
  • Heat sink temperature controller:Control the temperature of heat sink, Controller with temperature control of the testing machine laboratory environmental temperature changes around the difference is too large, also need to meet the adjustments, the setting method in the control box.
  • Salt test :Chamber temperature set 35°C, heat sink temperature set is 47°C(40°C-50°C).

Company Information

HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 20 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.

Lab PV Salt Spray Tester Salt Spray Corrosion Testing Chamber Machine Photovoltaic Module Salt Spray Aging Testing Equipment

Quality Control

Lab PV Salt Spray Tester Salt Spray Corrosion Testing Chamber Machine Photovoltaic Module Salt Spray Aging Testing Equipment

Our Services

Haida Equipment Service:

  • If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.
  • We can offer operation video and English operation muanual.
  • We can provide video-con.

Onsite Service:

  • Device installation;
  • Equipment Operation Test Technology training;
  • Equipment Calibration;
  • Daily maintenance and maintenance of equipment

Free technical training for visiting factories

24-hour Online contact

Free software upgrades

Free information:

  • Product Instruction;
  • Product operation instruction/video;
  • Experiment Test (test application, test report)

Device Problem Handling:

  • Social media 24 hours online communication;
  • Mail Seamless Docking;
  • Video Conferencing;
  • Artificial free door-to-door service
