Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
±3%RH
Brand Name :
HAIDA
Place of Origin :
Guangdong, China
Application :
Photovoltaic Testing
customized support :
OEM, ODM
power :
380V±10%, 50/60Hz
Protection Class :
/
Voltage :
380 V
warranty :
1 Year
Lab volume :
4540L(Not include top sloping roof capacity)
Suitable for sample :
2400*1200mm PV module with 2 pieces
Saturated Tank Temperature :
Ambient ~60℃
Chamber Temperature :
Ambient ~60℃ (No humidity if temp. below +25℃)
Chamber Temperature fluctuation :
±2℃
Chamber Temperature Uniformity :
±0.5℃
Humidity range :
30% ~ 98%
Temperature fluctuation :
±3%RH
Test Type :
NSS,ASS,CASS
Power supply source :
Three-phase, 380V±10%, 50/60Hz
MOQ :
1
Description
Product Description
Climate Temperature Test Equipment PV Cyclic Salt Spray Room Salt Spray Aging Testing Chamber Machine

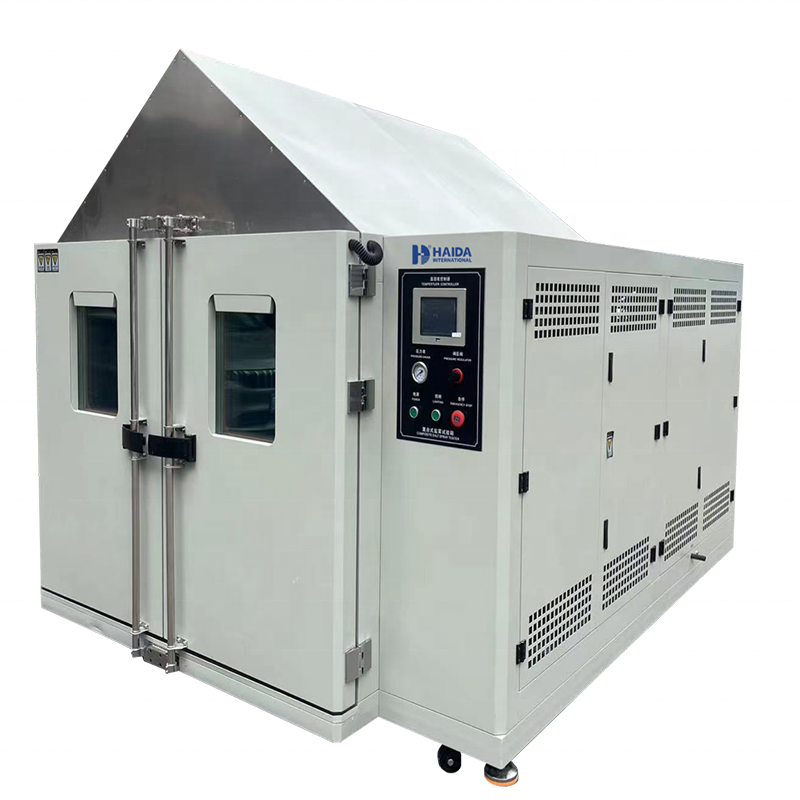

HD-E808-4C Cyclic Salt Spray Room

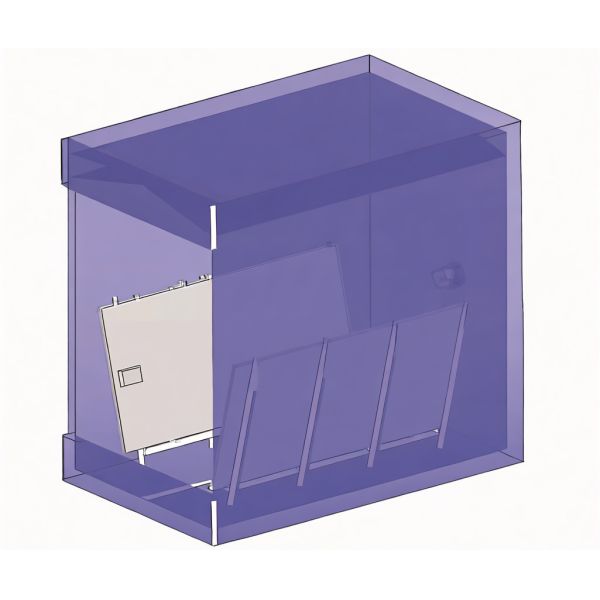

PRODUCT FEATURES 1, Double layers sample placing design to improve the usable area of internal chamber. 2, Adopt high precision temperature and humidity controller for temperature, humidity and drying tests. 3, Two poles air inlet decompression to ensure stable spray pressure. 4, Spray tower has conical disperser to lead and adjust the uniformity and dripping volume of salt fog. 5, Perfect safety protection device with audio alarm and auto stop function. 6, Have saturate process for spray compressed air to ensure stable test environment and prevent nozzles from block. 7, With time controller for auto power off when setting time arrive.
Climate Temperature Test Equipment PV Cyclic Salt Spray Room Salt Spray Aging Testing Chamber Machine

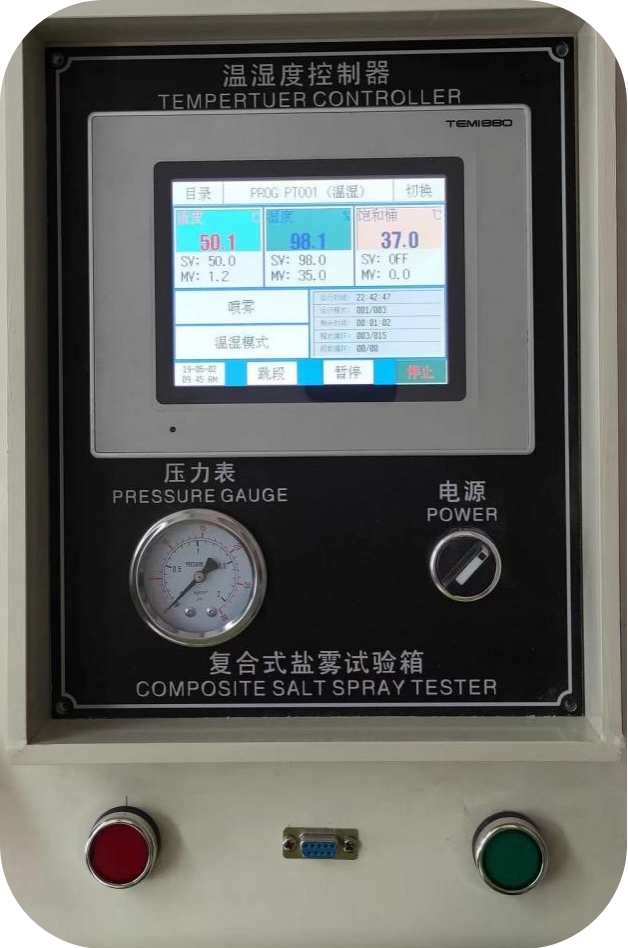

PLC Controller

Specification
Model
HD-E808-4C

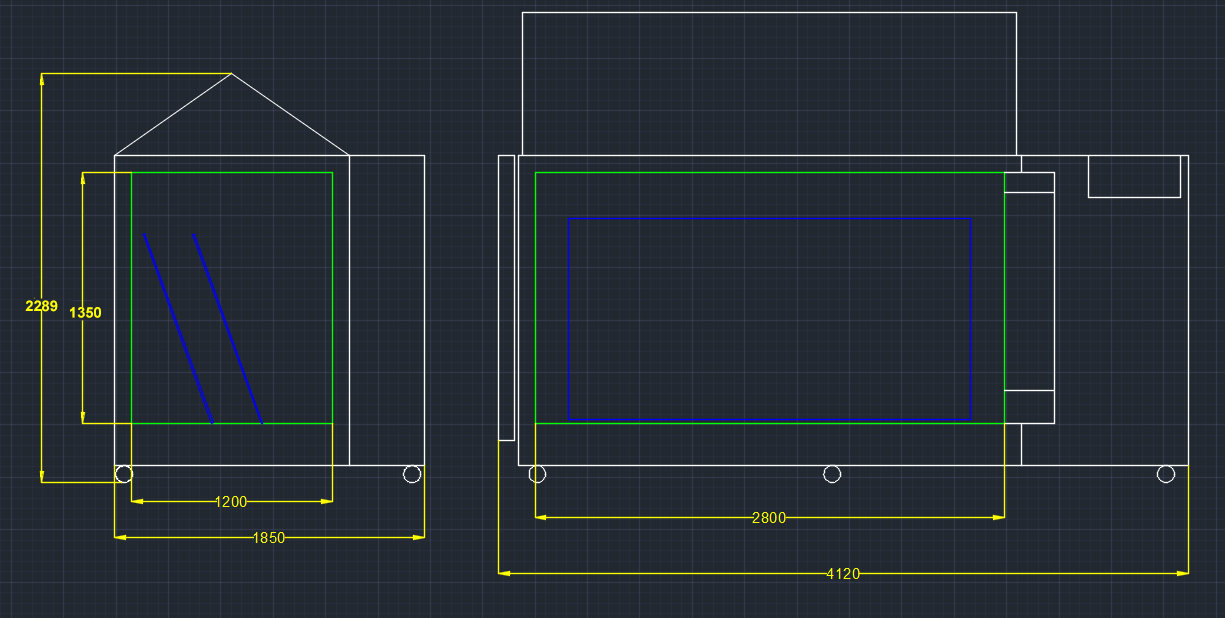

Internal size (L*W*H)
1200*2800*1350m
External size (L*W*H)
1850*4120*2289mm
Lab volume
4540L(Not include top sloping roof capacity)
Suitable for sample
2400*1200mm PV module with 2 pieces
Saturated Tank Temperature
Ambient ~60℃
Chamber Temperature
Ambient ~60℃ (No humidity if temp. below +25℃)
Chamber Temperature fluctuation
±2℃
Chamber Temperature Uniformity
±0.5℃
Humidity range
30% ~ 98%
Temperature fluctuation
±3%RH
Salt spray test
Concentration of salt solution: 5%
Spray quantity: 1.0~2.0 ml / hr / 80cm2
PH value: 6.5~7.2 (at ambient temperature)
Spraying method
Continuous and Periodic spray type
Multiple safety protection devices
Over pressure protection, over temperature protection, over load fuse protection
Air source
2.5HP Air pump, pump capacity with 60L or above
(provided by buyer)
Power supply source
Three-phase, 380V±10%, 50/60Hz
Test Type
NSS,ASS,CASS
Test Standard
IEC 61701:2020(according IEC 60068-2-52:2027)
ASTM G85;
ASTM B117;
Test Standard ASTM G85
Item
Specification
Internal chamber
High temperature resistant 8mm PVC, anti-corrosion and easy to clean
Chamber cover
High temperature resistant 8mm PVC, anti-corrosion and easy to clean
Saturated barrel
High temperature and corrosion resistance, equipped with water level indicating device
Heating system
Titanium electric heater, corrosion resistance
Blower
Multi-blade blower
Water pump
Corrosion resistant pump
Solenoid valve
JPA series
Sample shelves
Test Angle: 15° ~ 30°, adjustable
Viewing window
Double vacuum organic glass
Controller
PLC controller, touch screen
Water supply
Adopts automatic water charging system for long time operation.
Climate Temperature Test Equipment PV Cyclic Salt Spray Room Salt Spray Aging Testing Chamber Machine

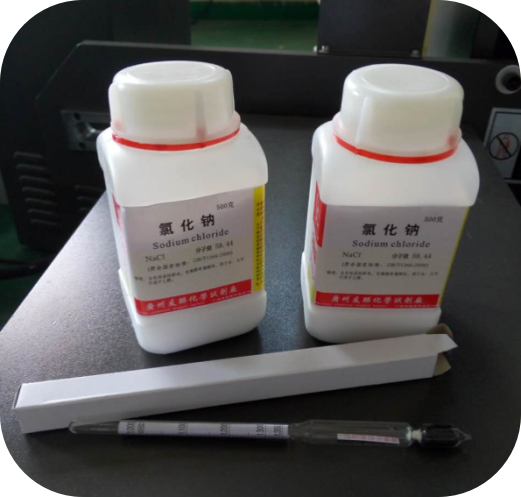

Sodium chloride (testing salt)
Climate Temperature Test Equipment PV Cyclic Salt Spray Room Salt Spray Aging Testing Chamber Machine

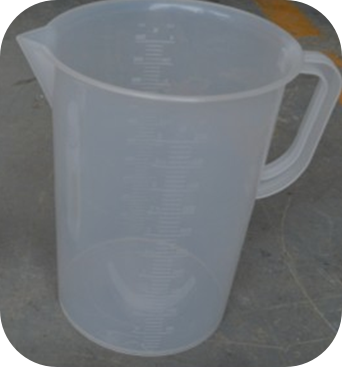

Measuring tank


Climate Temperature Test Equipment PV Cyclic Salt Spray Room Salt Spray Aging Testing Chamber Machine

Spray Nozzle
Climate Temperature Test Equipment PV Cyclic Salt Spray Room Salt Spray Aging Testing Chamber Machine

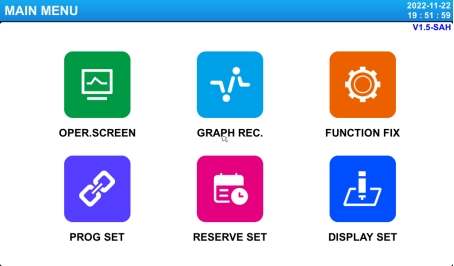

Controller


Climate Temperature Test Equipment PV Cyclic Salt Spray Room Salt Spray Aging Testing Chamber Machine
Climate Temperature Test Equipment PV Cyclic Salt Spray Room Salt Spray Aging Testing Chamber Machine
Company Profile
Climate Temperature Test Equipment PV Cyclic Salt Spray Room Salt Spray Aging Testing Chamber Machine
Our Partners
Climate Temperature Test Equipment PV Cyclic Salt Spray Room Salt Spray Aging Testing Chamber Machine
Our Advantages
Our Service
* If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.
* We can offer operation video and English operation muanual.
* We can provide video-con.

Onsite Service:
* Device installation;
* Equipment Operation Test Technology training;
* Equipment Calibration;
* Daily maintenance and maintenance of equipment
* Free technical training for visiting factories
* 24-hour Online contact
* Free software upgrades
* Free information:
* Product Instruction;
* Product operation instruction/video;
* Experiment Test (test application, test report)

Device Problem Handling:
* Social media 24 hours online communication;
* Mail Seamless Docking;
* Video Conferencing;
* Artificial free door-to-door service
