Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
0.5%
Brand Name :
HAIDA
Place of Origin :
Guangdong, China
Application :
Photovoltaic Module Testing, PV Simulation Testing, PV Humid Testing, Humid and High-Temperature Testing, PID
customized support :
OEM, ODM
power :
220V, 50Hz
Protection Class :
/
Voltage :
220 V
warranty :
1 Year
Voltage range :
-2000V ~ 2000V
Voltage resolution :
1V
Voltage accuracy :
±3% (referencing CNAS-CL01-A021:2018)
Voltage tolerance :
0.5% (referencing IEC 62804-1-1:2020)
Current measurement range :
0~1mA Resolution: 0.01μA (as specified in IEC 62804-1-1:2020)
Acquisition interval :
≤5min(adjustable at software)
Power :
Single phase, 220V, 50Hz
MOQ :
1
Description
Product Description
PV Potential Induced Degradation PID Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment

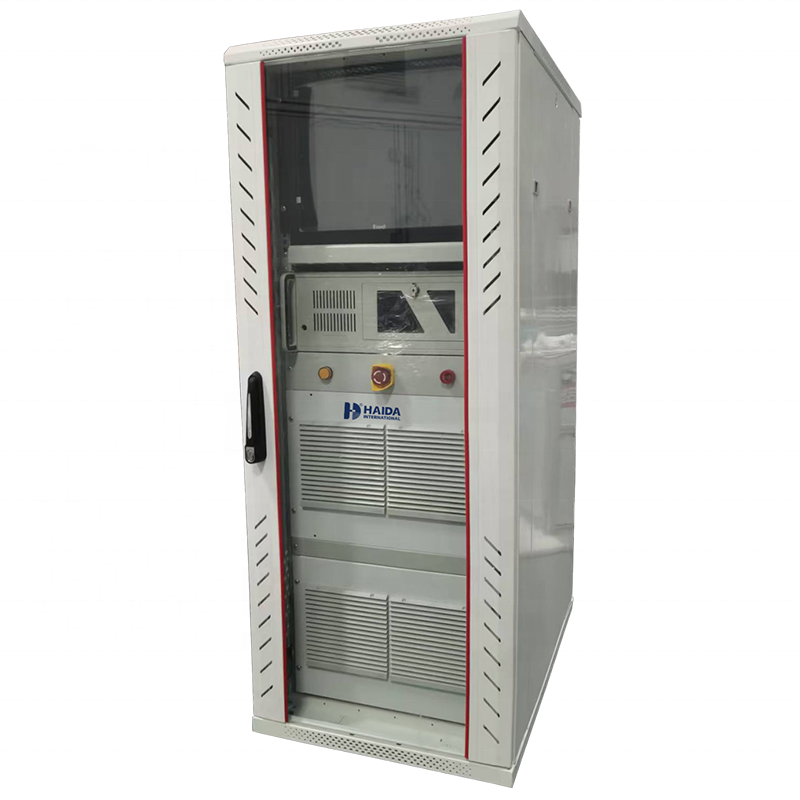

HD-E900

Potential Induced Degradation(PID) Test Machine
Potential Induced Degradation (PID) testing evaluates the ability of photovoltaic modules to resist potential-induced deterioration by simulating harsh electric field and humid heat conditions.
Specification
TECHNICAL PARAMETERS
Item
Specification
DC Regulated Power Supply
12 channels(Independently monitoring and control)
Each channel can independently control the voltage polarity
Voltage range
-2000V ~ 2000V
Voltage resolution
1V
Voltage stability
For continuous output of 1000V, 1500V, and 2000V, voltage fluctuation is ≤2% within 500 hours
Connection method
Module frame grounded, connector shorted and then connected to the high-voltage terminal; for negative voltage testing and
positive voltage recovery, only switch toggling is needed, no change in connection method required
Voltage application method
20 power channels operate independently, capable of outputting different polarities and voltages
Voltage accuracy
±3% (referencing CNAS-CL01-A021:2018)
Voltage tolerance
0.5% (referencing IEC 62804-1-1:2020)
Current measurement range
0~1mA
Resolution: 0.01μA (as specified in IEC 62804-1-1:2020)
Acquisition interval
≤5min(adjustable at software)
Safety protection features
Overcurrent alarm, overvoltage alarm, overtemperature alarm, communication interface with environmental test chamber
Power
Single phase, 220V, 50Hz
TEST STANDARD
Items
Description
Test Standard
IEC61215-2: 2021 MQT 21 Potential Induced Degradation Test
IEC 62804-1-1:2020“Photovoltaic (PV) modules - Test methods for the detection of potential-induced degradation Part 1-1
Crystalline silicon – Delamination”
IEC 63209:2019 Extended-stress testing of photovoltaic modules
PV Potential Induced Degradation PID Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment

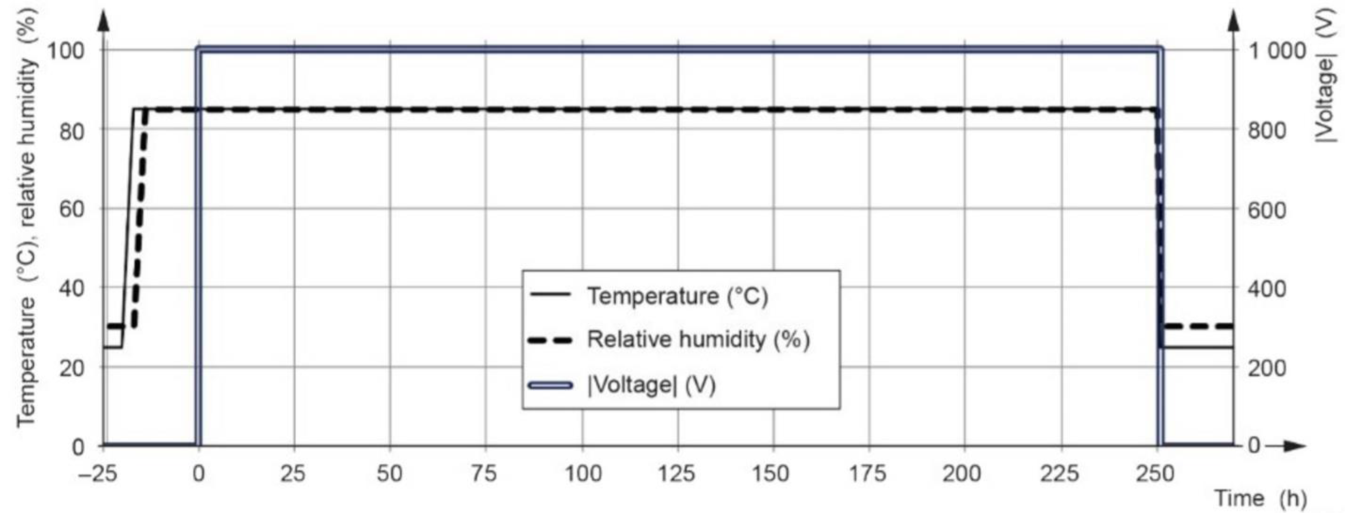

IEC 62804-1-1:2020 Test Cycle
(Tips: to achieve temperature and humidity control, test cycle required combined with climate chamber)
PV Potential Induced Degradation PID Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment

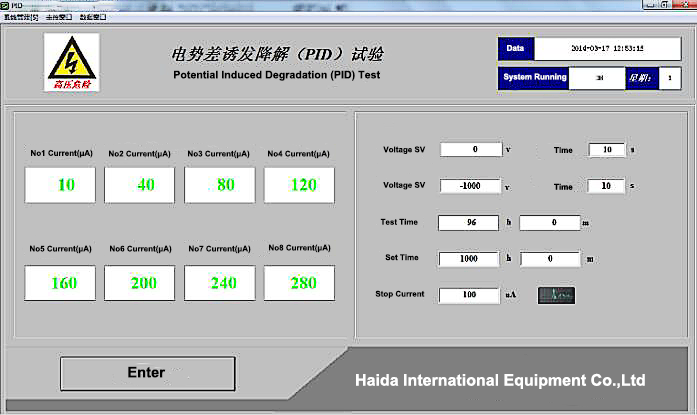

Main Interface
