Solar PV Module Mechanical Load Test Machine Photovoltaic Panel Mechanical Load Tester Pv Module Testing Equipment
Solar PV Module Mechanical Load Test Machine Photovoltaic Panel Mechanical Load Tester Pv Module Testing Equipment
Solar PV Module Mechanical Load Test Machine Photovoltaic Panel Mechanical Load Tester Pv Module Testing Equipment
Solar PV Module Mechanical Load Test Machine Photovoltaic Panel Mechanical Load Tester Pv Module Testing Equipment
Solar PV Module Mechanical Load Test Machine Photovoltaic Panel Mechanical Load Tester Pv Module Testing Equipment
Solar PV Module Mechanical Load Test Machine Photovoltaic Panel Mechanical Load Tester Pv Module Testing Equipment
Solar PV Module Mechanical Load Test Machine Photovoltaic Panel Mechanical Load Tester Pv Module Testing Equipment
Solar PV Module Mechanical Load Test Machine Photovoltaic Panel Mechanical Load Tester Pv Module Testing Equipment
Solar PV Module Mechanical Load Test Machine Photovoltaic Panel Mechanical Load Tester Pv Module Testing Equipment
Solar PV Module Mechanical Load Test Machine Photovoltaic Panel Mechanical Load Tester Pv Module Testing Equipment
Solar PV Module Mechanical Load Test Machine Photovoltaic Panel Mechanical Load Tester Pv Module Testing Equipment
Solar PV Module Mechanical Load Test Machine Photovoltaic Panel Mechanical Load Tester Pv Module Testing Equipment
Specifications
Brand Name :
HAIDA
Place of Origin :
Guangdong, China
MOQ :
1
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
/
Application :
PV Module Testing, Photovoltaic Panel Testing, Mechanical Load Testing, Solar PV Testing
customized support :
OEM, ODM
power :
120V 5A
Protection Class :
/
Voltage :
220 V
warranty :
1 Year
Cylinder Space :
Cylinder space is adjustable
Cylinder Type :
Low Friction
Cylinder Stroke :
400mm
Static Mechanical Load 1 :
Downward pressure: 800 Pa ~ 12,000 Pa;
Static Mechanical Load 2 :
Upward pull: 800 Pa ~ 6,000 Pa;
Dynamic Mechanical Load 1 :
Downward pressure: -2,500 Pa ~ +2,500 Pa(Setting at software)
Dynamic Mechanical Load 2 :
Cycle: 3~7 cycles/min
Description
Product Description
Solar PV Module Mechanical Load Test Machine Photovoltaic Panel Mechanical Load Tester Pv Module Testing Equipment

HD-E910

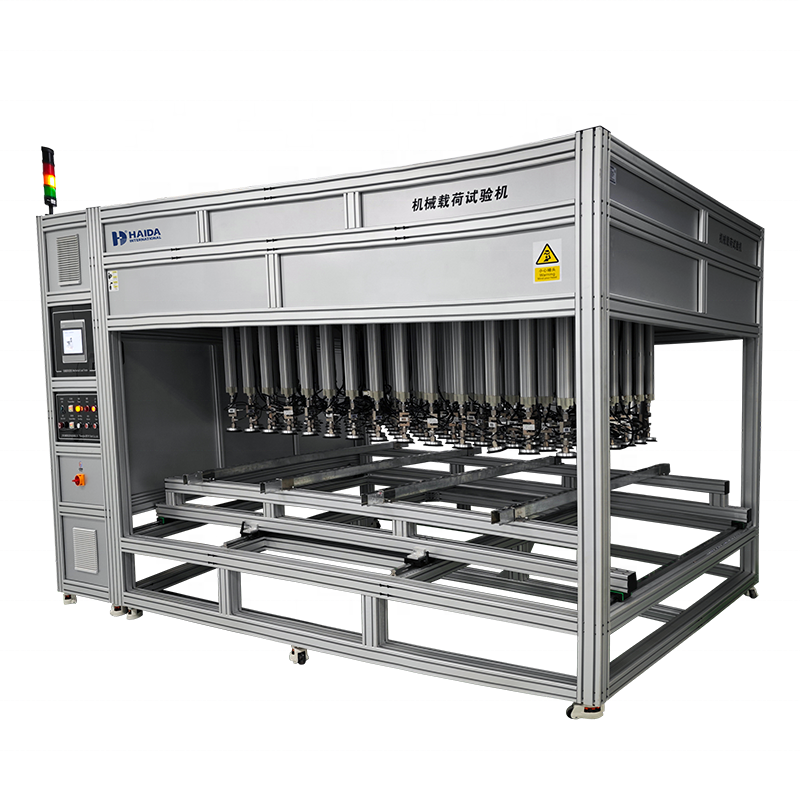

Solar PV Module Mechanical Load Test Machine
Solar PV Module Mechanical Load Test Machine employs a combined forward pressure application and reverse suction pressure mode of operation, enabling it to meet the pressure testing requirements for photovoltaic modules under extreme climatic conditions such as deserts and plateaus.

Test Standards

IEC 61215-2:2021 MQT16 Static Mechanical Load Test IEC 61215-2:2021 MQT20 Dynamic Mechanical Load Test ANSI/UL 1703:2018 Mechanical Load Test

IEC 62782: 2016 Dynamic Mechanical Load Test
Specification
Cylinder-type device
Allow the component sample to freely bend and deform under applied load, ensuring the test surface pressure uniformity remains
within ±5%.
Pressure Method
Gradually and uniformly increase load until reaching the set value, using both downward pressure and upward pull methods.
Max sample size
2600*1400mm(L*W)
Cylinder Space
Cylinder space is adjustable
Cylinder Type
Low Friction
Cylinder Stroke
400mm
Cylinder Quantity
72 sets (12*6) Enable free adjustment of suction cup spacing in both horizontal and vertical directions at equal intervals.
Cylinder distance
Cylinder Center Point Distance≤20cm
Edge cylinder center distance from module edge≤20cm
Deformation Detection
Infrared non-contact, deformation measurement range ±10 cm, accuracy ±0.5 mm, with 7 points that can be placed at any position
within the same plan
DC Stabilized Power Supply
Powering 1 Module;
DC Power Supply: 120V 5A.
Static Mechanical Load
Downward pressure: 800 Pa ~ 12,000 Pa;
Upward pull: 800 Pa ~ 6,000 Pa; Setting at software
Dynamic Mechanical Load
Downward pressure: -2,500 Pa ~ +2,500 Pa(Setting at software) Cycle: 3~7 cycles/min
Deflection Detection
Laser non-contact
Measurement range≥10cm
Accuracy±0.5mm
Measurement points: 5 point(can be placed at any position within the same plane)
Temperature Monitoring
Equipped one temperature sensor (OMEGA T-type thermocouple) Calibration point: 25°C
Controller Controller
Capable of storing operational data, equipped with a USB interface, enabling conversion of operational data into Excel/PDF files
and charts.
Test pressure, cycle count, cycle duration, and energization current; each pressurization process is independently programmable:
every test parameter for each cycle must be individually configurable.
Each suction cup's pressure can be individually controlled, and pressure can be set separately.
Including non-uniform snow loads, validated on top of previously delivered loads.
Collect test pressure, time, module deflection, real-time cycle count, energized current, voltage, and module temperature data.
The sampling frequency is configurable.
Using Touchscreen control
Control panel can display real-time test data curves; historical data and curves can be viewed on the control panel; historical
data can be exported to Excel.
Safety Device
The air supply source equipped with a safety valve and status indicator lights. In the event of a test failure, the device will
sound an alarm and halt the test.
Air source
0.6~0.8Mpa(prepare by user)
Power
Single-phase, 220V, 50Hz
Machine Dimension
Approx.,3700*2000*2300mm(W*D*H)
