Specifications
Installation :
Embanded and external
Frequency :
433.92MHz
Battery Life :
5 years for internal sensor and 1 or 4 years for external sensors
High Pressure :
12bar
Model Number :
TDS100
Certification :
CE, ITS16949
Price :
USD130-160
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Sensor Quantity :
6-18 Tires
Packaging Details :
Neutral package box
Sensor application :
RVs ,Trucks, Buses, Commercial Vehicles
Brand Name :
OEM
Place of Origin :
Guangdong, China
Low Pressure :
10bar
MOQ :
100pcs
Supply Ability :
20000pcs/month
Delivery Time :
15-25 working days
LCD Display Size :
2.8 Inch
GPS and Navigation :
Compatiable
Description

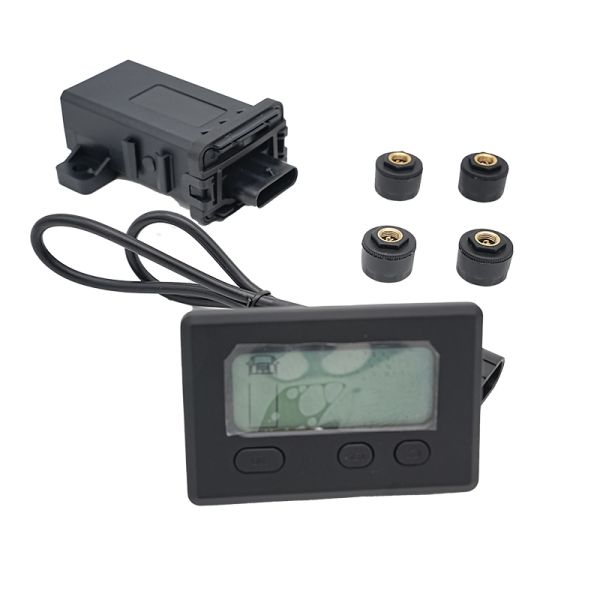

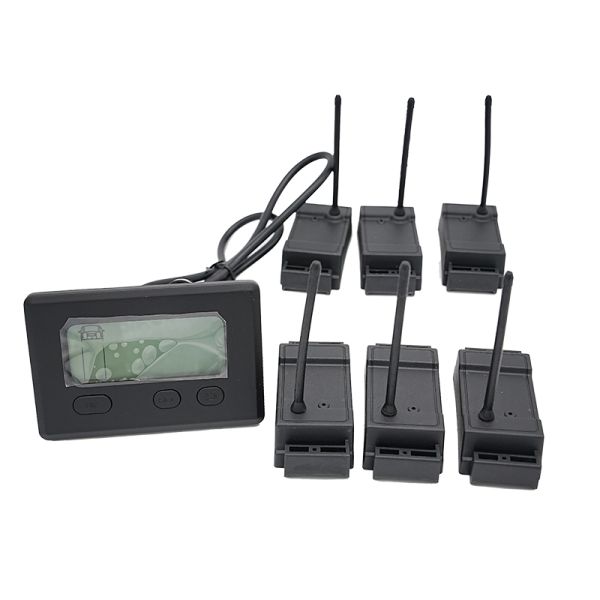

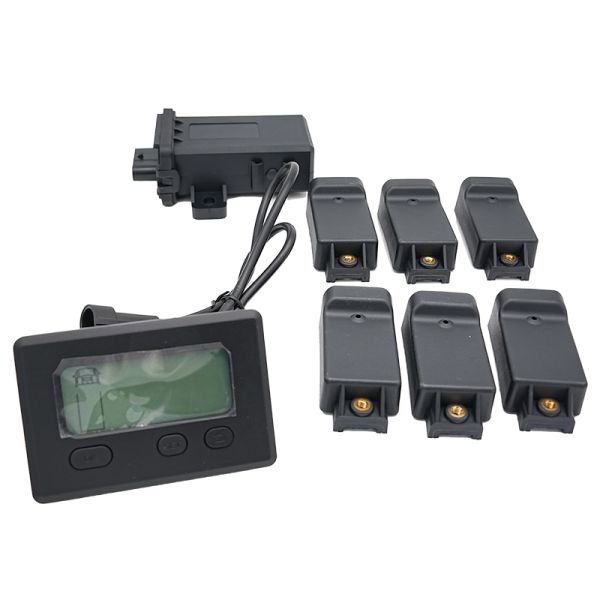

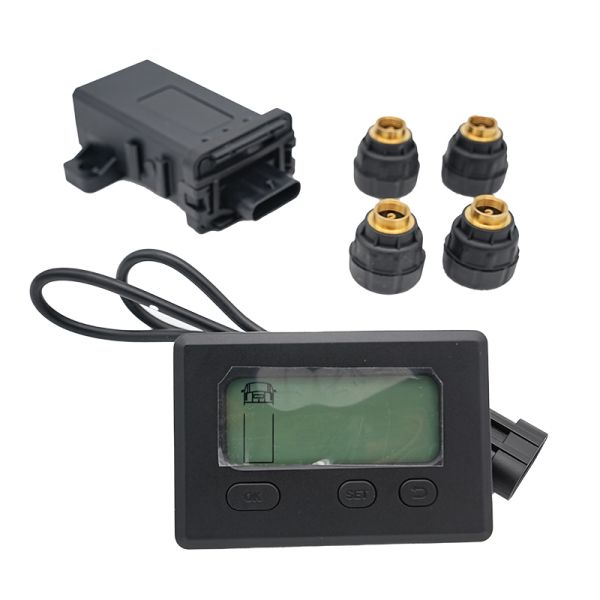

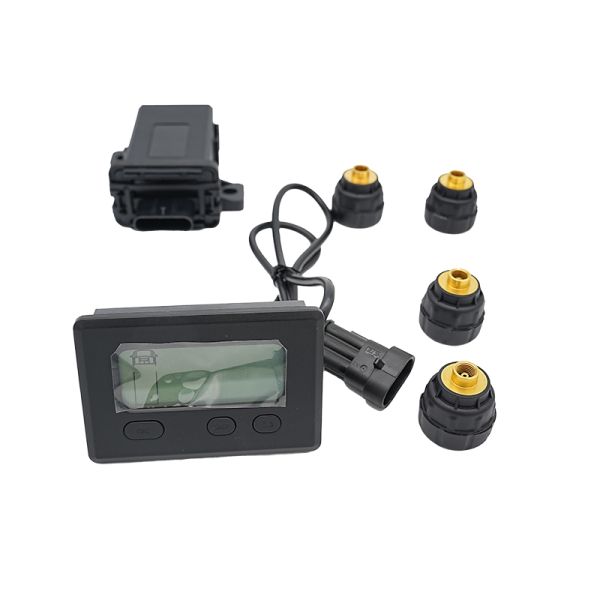

6-18 Tires Automotive Tire Pressure Sensor for Trailer

This system is for truck, semi-truck, trailer heavy-duty truck and commercial vehicles. Maximum support 18 tires.

It is with embeded display and can support RS232 AND Canbus. The monitor is 2.8inch LED black-white display.

It is directly connect the vehicle power and do not have built-in battery in the monitor. It's good to avoid the battery

problem in mornitor.

Both internal sensor and external tire pressure sensors for choice. Customers can choose the actual sensor

according to your tires you need.

The operation frequency is 433.92MHz ±68KHz.

Features

  • The LED screen shows pressure and temperature
  • Customize the tire arrangement, and monitor 18 tire pressures synchronously
  • Monitoring tire pressure with GPS
  • The standard value of tire high/low pressure alarm can be set.
  • When the pressure and temperature are abnormal, LED display and sound prompt alarm.
  • Multiple pressure / temperature unit selection.
  • Pressure and temperature can be displayed simultaneously.
  • All tire information is displayed circularly.
  • Long receiving distance.

Product Parameter

Serial Number Project Technical Parameter
1 External Input Voltage DC 9V ~ DC 36V
2 High Frequency Demodulation Mode FSK
3 Working Current (24V) < 50 mA
4 High Frequency Receiving Frequency 433.92 MHz ± 40 KHz
5 High Frequency Receiving Sensitivity < -105 dBm
6 Working Temperature -30°C ~ 80°C
7 Storage Temperature -40°C ~ 125°C
8 Weight 190 g ± 5 g

Sensor
Operating frequency 433.92MHz ± 28KHz
Operating voltage 2.0~3.3V
Operating current ≤10mA
Static current ≤1uA
Operating temperature -30~+85°C
Storage temperature -30°C~+85°C
Battery model Maxell 2450 550MHA
Battery lifespan ≥ 5 years
Pressure range 0-14Bar/0-203Psi
Receiver
Operating frequency 433.92MHz ±68KHz
Operating voltage DC9V-DC30V
Operating current ≤50mA
Static current ≤10mA
Operating temperature -30°C ~ +85°C
Repeater
Operating frequency 433.92MHz ± 68KHz
Operating voltage DC9V-DC30V
Operating current ≤50mA
Static current ≤10mA
Operating temperature -40°C~+125°C
Storage temperature -40°C~+125°C
Power supply Trunk power
RF Transmitter power <10dbm
RF receiver sensitivity >-105dbm
