High Stability Tire Pressure Monitoring System TPMS 433.92MHz Frequency For Bus / Coach
High Stability Tire Pressure Monitoring System TPMS 433.92MHz Frequency For Bus / Coach
High Stability Tire Pressure Monitoring System TPMS 433.92MHz Frequency For Bus / Coach
High Stability Tire Pressure Monitoring System TPMS 433.92MHz Frequency For Bus / Coach
High Stability Tire Pressure Monitoring System TPMS 433.92MHz Frequency For Bus / Coach
High Stability Tire Pressure Monitoring System TPMS 433.92MHz Frequency For Bus / Coach
High Stability Tire Pressure Monitoring System TPMS 433.92MHz Frequency For Bus / Coach
High Stability Tire Pressure Monitoring System TPMS 433.92MHz Frequency For Bus / Coach
High Stability Tire Pressure Monitoring System TPMS 433.92MHz Frequency For Bus / Coach
High Stability Tire Pressure Monitoring System TPMS 433.92MHz Frequency For Bus / Coach
Specifications
Model Number :
TDS430
Installation :
Embanded and external
Supply Ability :
20000pcs/month
Sensor Quantity :
6 Tires
Frequency :
433.92MHz
High Pressure :
12bar
Certification :
CE, ITS16949
Delivery Time :
15-25 working days
Packaging Details :
Neutral package box
Sensor application :
RVs ,Trucks, Buses, Commercial Vehicles
Place of Origin :
Guangdong, China
MOQ :
100pcs
Low Pressure :
10bar
Battery Life :
5 years for internal sensor and 1 or 4 years for external sensors
Price :
USD130-160
GPS and Navigation :
Compatiable
Brand Name :
OEM
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Description

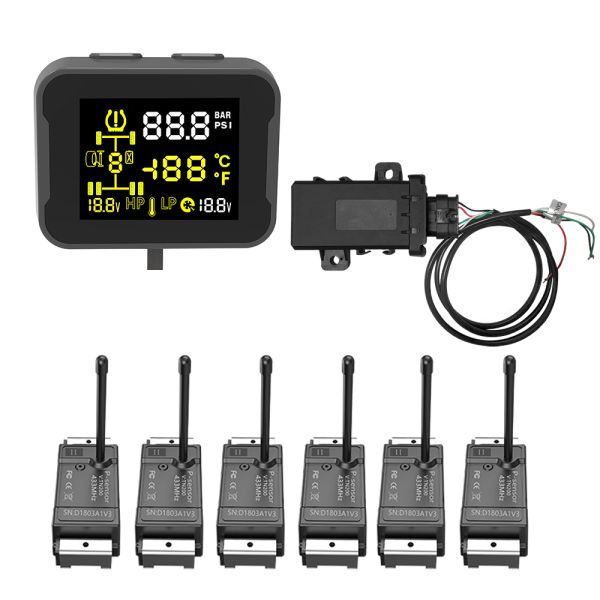

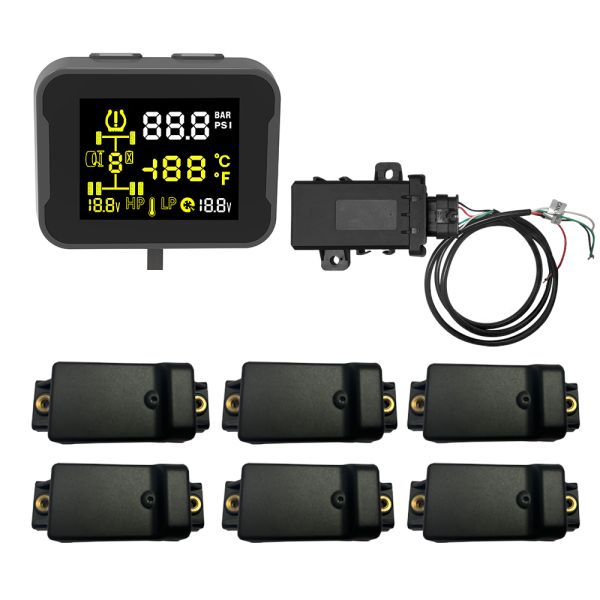

High Stability Tire Pressure Monitoring System (TPMS) for Bus / Coach

This system is for bus and coach. Maximum support 6 tires. Each tire will be displayed circulaly. Each tire will be show in 8s after it

show the next tire infomation.

When the pressure and temperature is lower or higher than the default, the tire pressure receiver will alert driver to keep safety.

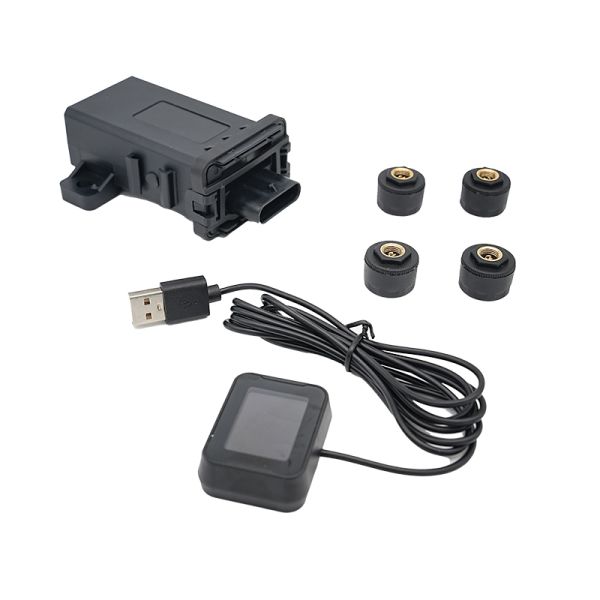

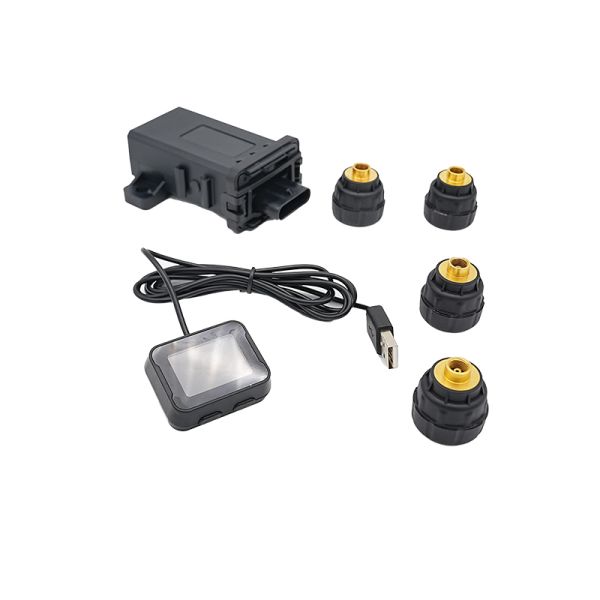

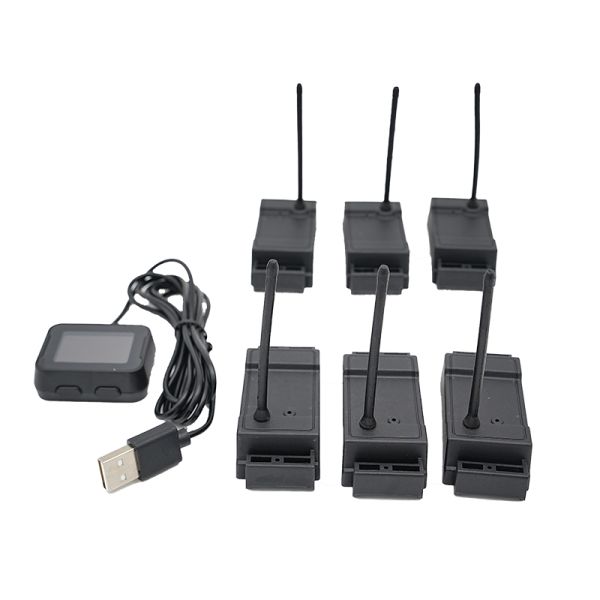

There are internal sensor and external tire pressure sensors for choice. Customers can choose the actual sensor

according to your tires you need.

The operation frequency is 433.92MHz ±68KHz.

Features

  • Color ful LCD sceen receiver
  • Non-destructive installation; easy to install and remove
  • 6-wheel simultaneous display
  • Lowest power consumption in the industry
  • Intelligent auto-on/off; simple to use, convenient to operate, and features stable performance
  • Utilizes brand-new sensors to monitor vehicle status with zero blind spots
  • Low-pressure/High-pressure alarm function
  • High-temperature alarm
  • Air leak alarm function
  • Low battery alarm
  • ID learning functio
  • Tire rotation function
  • Adjustable thresholds for high pressure, low pressure, and high temperature

Product Parameter

Parameter Specification
Input Voltage 4.5 V ~ 5.5 V
Demodulation Mode FSK
Receiving Sensitivity < -105 dBm
Operating Temperature -30°C ~ 85°C
Storage Temperature -30°C ~ 85°C
Weight 55.5 ± 1 g
Sensor
Operating frequency 433.92MHz ± 28KHz
Operating voltage 2.0~3.3V
Operating current ≤10mA
Static current ≤1uA
Operating temperature -30~+85°C
Storage temperature -30°C~+85°C
Battery model Maxell 2450 550MHA
Battery lifespan ≥ 5 years
Pressure range 0-14Bar/0-203Psi
Receiver
Operating frequency 433.92MHz ±68KHz
Operating voltage DC9V-DC30V
Operating current ≤50mA
Static current ≤10mA
Operating temperature -30°C ~ +85°C
Repeater
Operating frequency 433.92MHz ± 68KHz
Operating voltage DC9V-DC30V
Operating current ≤50mA
Static current ≤10mA
Operating temperature -40°C~+125°C
Storage temperature -40°C~+125°C
Power supply Trunk power
RF Transmitter power <10dbm
RF receiver sensitivity >-105dbm
