IP67 Long Battery Life truck trailer Bus Coach Construction Vehicle Tpms Sensor
IP67 Long Battery Life truck trailer Bus Coach Construction Vehicle Tpms Sensor
Specifications
Brand Name :
OEM
Product Type :
Internal Strap TPMS Sensor
Price :
USD16-20
MOQ :
100pcs
Battery Life :
More than 5 years
Sensor diameter :
12mm 12V1
Installation :
Inside Tire
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Packaging Details :
Neutral package box
Certification :
CE, ITS16949
GPS and Navigation :
Compatiable
Frequency :
433.92MHz
Model Number :
TN590
Place of Origin :
Guangdong, China
Supply Ability :
20000pcs/month
Delivery Time :
15-25 working days
Description

IP67 Long Battery Life truck trailer Bus Coach Construction Vehicle Tpms Sensor

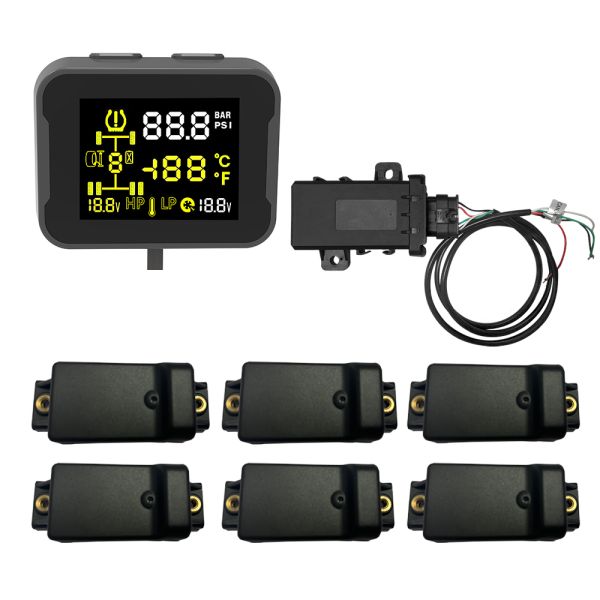

The TN590 tire pressure monitoring sensor is an advanced external tire pressure monitoring sensor (TPMS) designed for trucks, trailers,

buses, and fleet vehicles. It is a bigger sensor delicated desgin for Construction vhicles with 12mm diameter.


Installed on the tire metal valves, this sensor provides accurate real-time monitoring of tire pressure and temperature. The data is transmitted

wirelessly to the central monitor, and alert the driver or fleet manager to view each tire's status and respond to issues promptly.


Features

  • The high-frequency transmission method adopts FSK modulation signal, and the
    low-frequency adopts ASK modulation signal
  • Fully imported vehicle grade materials with long service life, high stability, and
    strong anti-interference ability
  • Simultaneously measuring and monitoring air pressure and temperature, with self
    checking and tire leakage monitoring functions
  • IP67 waterproof rate
  • Simple installation

Product Parameter

Battery Type CR2050 (345mAh)
RF Frequency 433.92 MHz ±38 KHz
High-Frequency Modulation FSK
Low-Frequency Receiving Frequency 125 KHz ±5 KHz
Standby Current < 0.7 μA
Transmission Current < 10 mA
RF Transmission Power < 8 dBm (50Ω)
Pressure Measurement Range 0 – 13 Bar
Pressure Resolution 2.75 KPa
Pressure Accuracy ±0.2 Bar (0°C ~ 70°C)
±0.3 Bar (-20°C ~ 85°C)
±0.48 Bar (-40°C ~ 125°C)
Temperature Measurement Range -40°C ~ +125°C
Temperature Resolution 1°C
Temperature Accuracy ±3°C (0°C ~ 70°C)
Operating Temperature -40°C ~ +125°C
Storage Temperature -40°C ~ +125°C
Protection Rating IP67
Battery Life More than 4 Years
Weight 14.4 ± 0.2 g


IP67 Long Battery Life truck trailer Bus Coach Construction Vehicle Tpms Sensor
