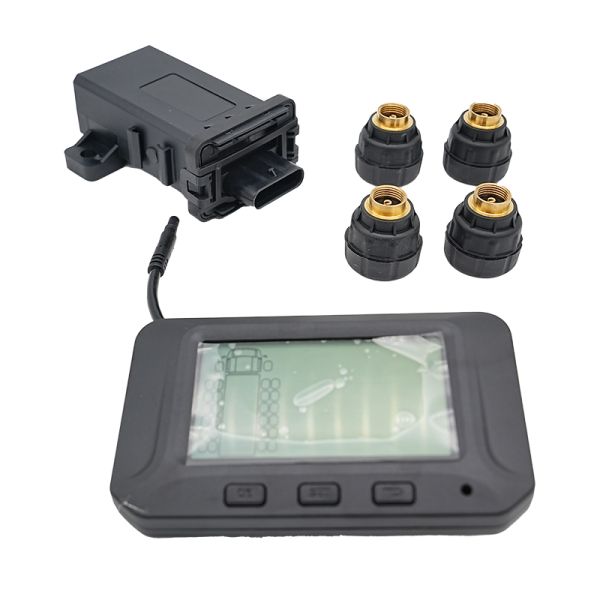

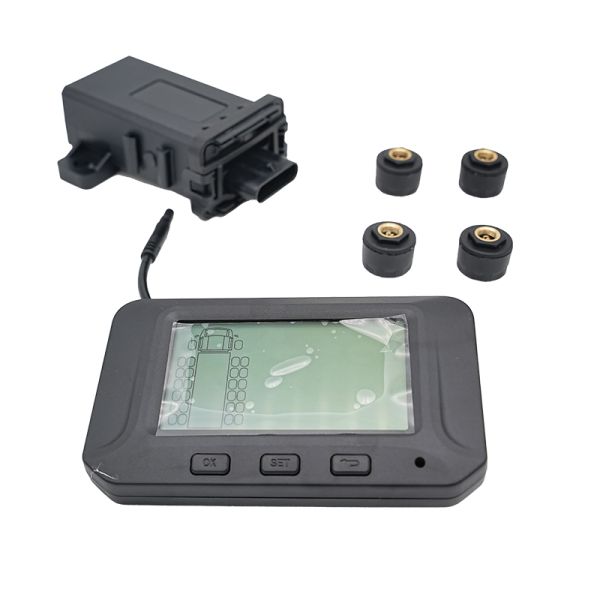

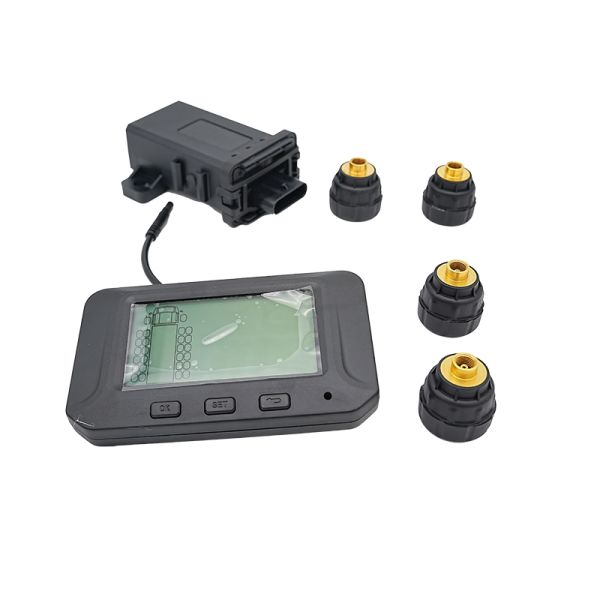

Lcd Display Aftermaket Commercial Vehicle TPMS Tyre Pressure Monitoring System For Caravans
Lcd Display Aftermaket Commercial Vehicle TPMS Tyre Pressure Monitoring System For Caravans
Lcd Display Aftermaket Commercial Vehicle TPMS Tyre Pressure Monitoring System For Caravans
Lcd Display Aftermaket Commercial Vehicle TPMS Tyre Pressure Monitoring System For Caravans
Lcd Display Aftermaket Commercial Vehicle TPMS Tyre Pressure Monitoring System For Caravans
Lcd Display Aftermaket Commercial Vehicle TPMS Tyre Pressure Monitoring System For Caravans
Specifications
Installation :
Embanded and external
Delivery Time :
15-25 working days
Place of Origin :
Guangdong, China
Frequency :
433.92MHz
Battery Life :
5 years for internal sensor and 1 or 4 years for external sensors
Brand Name :
OEM
High Pressure :
12bar
MOQ :
100pcs
Packaging Details :
Neutral package box
Price :
USD130-160
Sensor Quantity :
6-26 Tires
Sensor application :
RVs ,Trucks, Buses, Commercial Vehicles
Supply Ability :
20000pcs/month
Certification :
CE, ITS16949
Low Pressure :
10bar
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
GPS and Navigation :
Compatiable
Model Number :
TDS200
LCD Display Size :
3.5 Inch
Description

Lcd Display Aftermaket Best Tyre Pressure Monitoring System For Caravans

This system is for truck, trailer and commercial vehicles. There are 6 tire to 26 tires available. Customers can choose the actual
sensor according to your tires you need.

The operation frequency is 433.92MHz ±68KHz. The LCD is 2.8 inch. Battery can be used more than 5 years.

Features

1) Internal TPMS,6 tires to 26 tires
2) TRUCK's power DC9V-DC30v
3) With rs232 port, can be connected to orther device, for example GPS module, Navigation ect.
4) The monitor can be installed in the truck and not fixed on the dashboard, we named embedded
5) Operating frequency: 433.92MHz ±68KHz
6) Low pressure alarm threshold default: 10Bar
7) High pressure alarm threshold default: 12Bar and you can setting it by yourself
8) It requires professional installation tire removal tool
9) High-definition 2.8-inch black/white LCD display
10) Reapter included for trailers.
11) Battery life: >5 years. 16 hours/day
12) Warranty: 1 year.

Product Parameter


Display

Operating frequency 433.92MHz ±68KHz
Operating voltage DC9V-DC30V
Operating current ≤60mA
Static current ≤10mA
Default warning value
Low pressure alarm threshold default 10Bar
High pressure alarm threshold default 12Ba and you can setting it by yourself
High temperature 80°C
Sensor
Operating frequency 433.92MHz ± 28KHz
Operating voltage 2.0~3.3V
Operating current ≤10mA
Static current ≤1uA
Operating temperature -30~+85°C
Storage temperature -30°C~+85°C
Battery model Maxell 2450 550MHA
Battery lifespan ≥ 5 years
Pressure range 0-14Bar/0-203Psi
Receiver
Operating frequency 433.92MHz ±68KHz
Operating voltage DC9V-DC30V
Operating current ≤50mA
Static current ≤10mA
Operating temperature -30°C ~ +85°C
Repeater
Operating frequency 433.92MHz ± 68KHz
Operating voltage DC9V-DC30V
Operating current ≤50mA
Static current ≤10mA
Operating temperature -40°C~+125°C
Storage temperature -40°C~+125°C
Power supply Trunk power
RF Transmitter power <10dbm
RF receiver sensitivity >-105dbm

Lcd Display Aftermaket Commercial Vehicle TPMS Tyre Pressure Monitoring System For Caravans

Lcd Display Aftermaket Commercial Vehicle TPMS Tyre Pressure Monitoring System For Caravans

12mm sensor available for choice

Lcd Display Aftermaket Commercial Vehicle TPMS Tyre Pressure Monitoring System For Caravans
