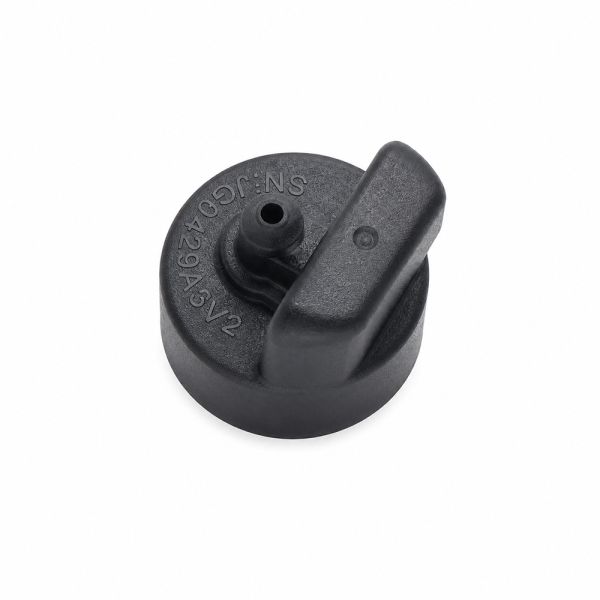

433Mhz Tire Pressure Monitoring System Truck Internal Adhisive TPMS Sensor
433Mhz Tire Pressure Monitoring System Truck Internal Adhisive TPMS Sensor
Specifications
Place of Origin :
Guangdong, China
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Model Number :
TN910
Certification :
CE, ITS16949
MOQ :
100pcs
GPS and Navigation :
Compatiable
Frequency :
433.92MHz
Installation :
Inside Tire
Packaging Details :
Neutral package box
Supply Ability :
20000pcs/month
Delivery Time :
15-25 working days
Brand Name :
OEM
Price :
USD16-20
Product Type :
Internal TPMS Sensor
Battery Life :
More than 4 years
Description

433Mhz Tire Pressure Monitoring System Truck Internal Adhisive TPMS Sensor


The TN910 Internal TPMS Sensor is a high-performance tire pressure monitoring sensor designed for commercial vehicles,

trucks, trailers, buses, and fleet management applications.


It is installed securely inside the tire using a rubber sleeve mounting structure, the sensor continuously monitors tire pressure

and temperature in real time and wirelessly transmits data to the TPMS receiver.


Features

  • Real-time tire pressure and temperature monitoring
  • Built-in leak detection function
  • 433.92MHz wireless transmission
  • FSK high-frequency modulation
  • 125KHz low-frequency wake-up
  • Automotive-grade materials
  • IP67 waterproof and dustproof protection
  • High stability and anti-interference performance
  • Lightweight compact design
  • Battery life over 4 years
  • Suitable for commercial vehicles and fleet applications


Product Parameter

Battery Type CR2050 (345mAh)
RF Frequency 433.92 MHz ±38 KHz
High-Frequency Modulation FSK
Low-Frequency Receiving Frequency 125 KHz ±5 KHz
Standby Current < 0.7 μA
Transmission Current < 10 mA
RF Transmission Power < 8 dBm (50Ω)
Pressure Measurement Range 0 – 13 Bar
Pressure Resolution 2.75 KPa
Pressure Accuracy ±0.2 Bar (0°C ~ 70°C)
±0.3 Bar (-20°C ~ 85°C)
±0.48 Bar (-40°C ~ 125°C)
Temperature Measurement Range -40°C ~ +125°C
Temperature Resolution 1°C
Temperature Accuracy ±3°C (0°C ~ 70°C)
Operating Temperature -40°C ~ +125°C
Storage Temperature -40°C ~ +125°C
Protection Rating IP67
Battery Life More than 4 Years
Weight 14.4 ± 0.2 g
433Mhz Tire Pressure Monitoring System Truck Internal Adhisive TPMS Sensor
