IP67 Commercial Vehicle Tire Pressure Monitoring System For 6 Tires Truck Trailer
IP67 Commercial Vehicle Tire Pressure Monitoring System For 6 Tires Truck Trailer
IP67 Commercial Vehicle Tire Pressure Monitoring System For 6 Tires Truck Trailer
IP67 Commercial Vehicle Tire Pressure Monitoring System For 6 Tires Truck Trailer
IP67 Commercial Vehicle Tire Pressure Monitoring System For 6 Tires Truck Trailer
IP67 Commercial Vehicle Tire Pressure Monitoring System For 6 Tires Truck Trailer
IP67 Commercial Vehicle Tire Pressure Monitoring System For 6 Tires Truck Trailer
IP67 Commercial Vehicle Tire Pressure Monitoring System For 6 Tires Truck Trailer
IP67 Commercial Vehicle Tire Pressure Monitoring System For 6 Tires Truck Trailer
IP67 Commercial Vehicle Tire Pressure Monitoring System For 6 Tires Truck Trailer
Specifications
Certification :
CE, ITS16949
Installation :
Embanded and external
Place of Origin :
Guangdong, China
Sensor application :
RVs ,Trucks, Buses, Commercial Vehicles
MOQ :
100pcs
Frequency :
433.92MHz
Price :
USD130-160
High Pressure :
12bar
Sensor Quantity :
6 Tires
Packaging Details :
Neutral package box
Low Pressure :
10bar
Brand Name :
OEM
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
GPS and Navigation :
Compatiable
Battery Life :
5 years for internal sensor and 1 or 4 years for external sensors
Delivery Time :
15-25 working days
Model Number :
TDS230
Supply Ability :
20000pcs/month
Description

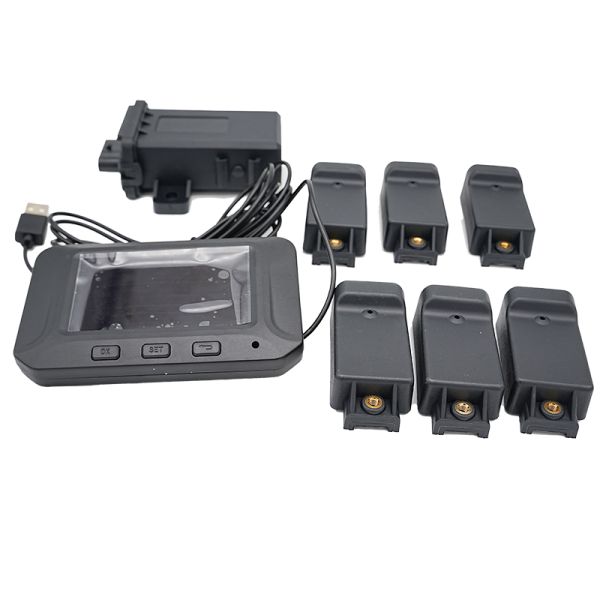

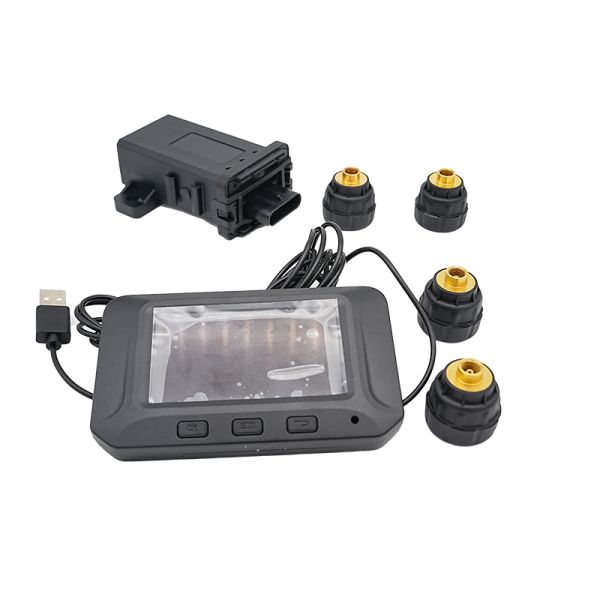

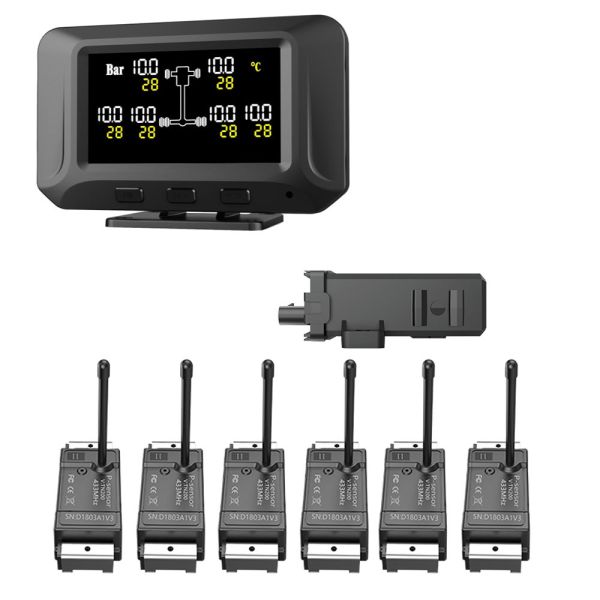

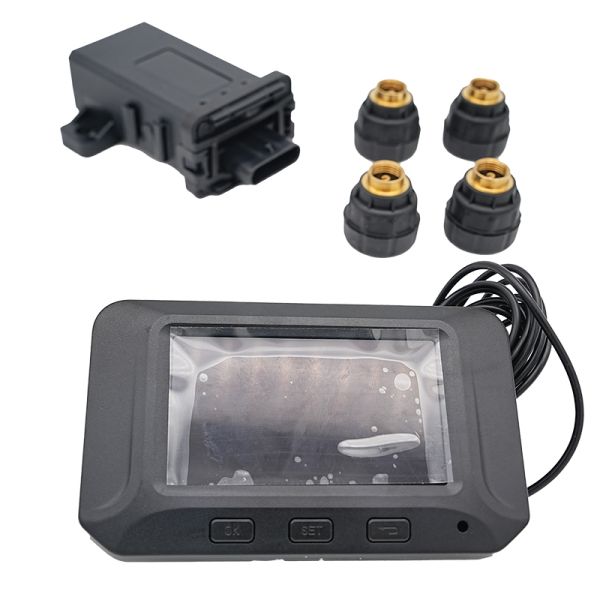

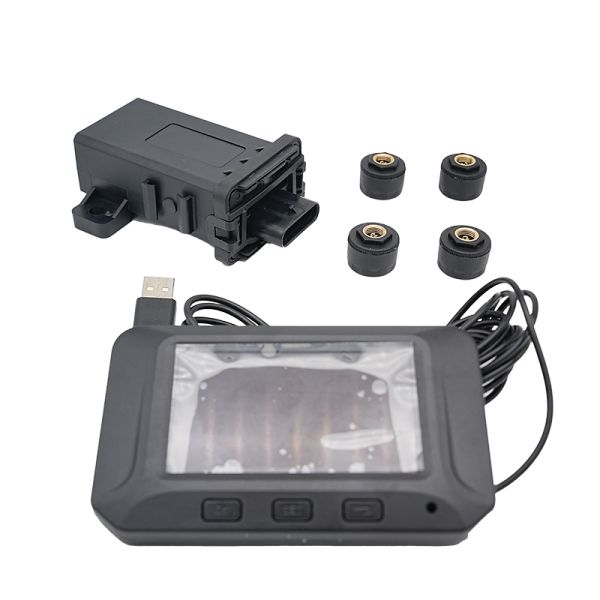

IP67 Truck Trailer 6 Tires Commercial Vehicle Tire Pressure Monitoring System

This system is for bus and coach, truck and trailer. Maximum support 6 tires. Each tire will be displayed at one sceen. Sensor

battery can works from 1 year, more than 4 year and more than 5 years. Please contact to get what you need exactly.

When the pressure and temperature is lower or higher than the default, the tire pressure receiver will alert driver to keep safety.

There are internal sensor and external tire pressure sensors for choice. Customers can choose the actual sensor

according to your tires you need.

The operation frequency is 433.92MHz ±68KHz.

Features

  • Color ful LCD sceen receiver
  • Non-destructive installation; easy to install and remove
  • 6-wheel simultaneous display
  • Lowest power consumption in the industry
  • Intelligent auto-on/off; simple to use, convenient to operate, and features stable performance
  • Utilizes brand-new sensors to monitor vehicle status with zero blind spots
  • Low-pressure/High-pressure alarm function
  • High-temperature alarm
  • Air leak alarm function
  • Low battery alarm
  • ID learning functio
  • Tire rotation function
  • Adjustable thresholds for high pressure, low pressure, and high temperature

Product Parameter

Parameter Specification
Input Voltage 4.5 V ~ 5.5 V
Demodulation Mode FSK
Receiving Sensitivity < -105 dBm
Operating Temperature -30°C ~ 85°C
Storage Temperature -30°C ~ 85°C
working current <50mA
Sensor
Operating frequency 433.92MHz ± 28KHz
Operating voltage 2.0~3.3V
Operating current ≤10mA
Static current ≤1uA
Operating temperature -30~+85°C
Storage temperature -30°C~+85°C
Battery model Maxell 2450 550MHA
Battery lifespan ≥ 5 years
Pressure range 0-14Bar/0-203Psi
Receiver
Operating frequency 433.92MHz ±68KHz
Operating voltage DC9V-DC30V
Operating current ≤50mA
Static current ≤10mA
Operating temperature -30°C ~ +85°C
Repeater
Operating frequency 433.92MHz ± 68KHz
Operating voltage DC9V-DC30V
Operating current ≤50mA
Static current ≤10mA
Operating temperature -40°C~+125°C
Storage temperature -40°C~+125°C
Power supply Trunk power
RF Transmitter power <10dbm
RF receiver sensitivity >-105dbm

IP67 Commercial Vehicle Tire Pressure Monitoring System For 6 Tires Truck Trailer

IP67 Commercial Vehicle Tire Pressure Monitoring System For 6 Tires Truck Trailer

IP67 Commercial Vehicle Tire Pressure Monitoring System For 6 Tires Truck Trailer

IP67 Commercial Vehicle Tire Pressure Monitoring System For 6 Tires Truck Trailer

Bigger 12mm diameter sensor for construction vehicle 12V1 valve available.

IP67 Commercial Vehicle Tire Pressure Monitoring System For 6 Tires Truck Trailer
