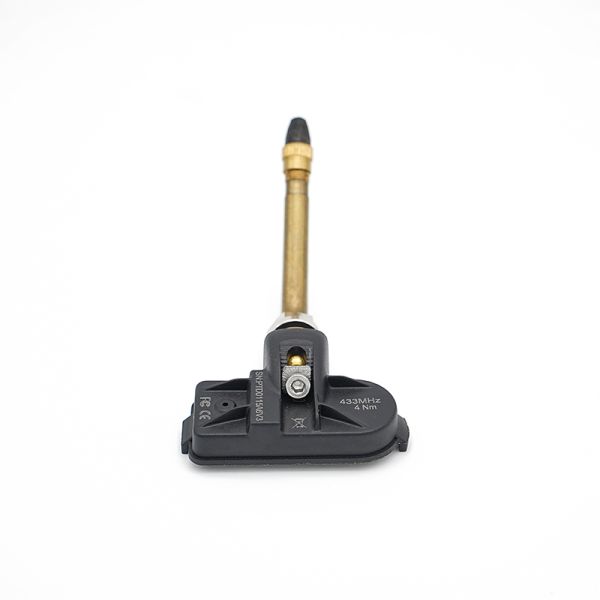

Metal Valve Commercial Truck Tire Pressure Sensor Heavy Duty Vehicle TPMS Sensor
Metal Valve Commercial Truck Tire Pressure Sensor Heavy Duty Vehicle TPMS Sensor
Metal Valve Commercial Truck Tire Pressure Sensor Heavy Duty Vehicle TPMS Sensor
Metal Valve Commercial Truck Tire Pressure Sensor Heavy Duty Vehicle TPMS Sensor
Metal Valve Commercial Truck Tire Pressure Sensor Heavy Duty Vehicle TPMS Sensor
Metal Valve Commercial Truck Tire Pressure Sensor Heavy Duty Vehicle TPMS Sensor
Metal Valve Commercial Truck Tire Pressure Sensor Heavy Duty Vehicle TPMS Sensor
Metal Valve Commercial Truck Tire Pressure Sensor Heavy Duty Vehicle TPMS Sensor
Metal Valve Commercial Truck Tire Pressure Sensor Heavy Duty Vehicle TPMS Sensor
Metal Valve Commercial Truck Tire Pressure Sensor Heavy Duty Vehicle TPMS Sensor
Specifications
Installation :
Inside Tire
Supply Ability :
20000pcs/month
Battery Life :
More than 5 years
GPS and Navigation :
Compatiable
MOQ :
100pcs
Product Type :
Internal Strap TPMS Sensor
Certification :
CE, ITS16949
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Delivery Time :
15-25 working days
Brand Name :
OEM
Model Number :
TN600
Place of Origin :
Guangdong, China
Packaging Details :
Neutral package box
Frequency :
433.92MHz
Price :
USD16-20
Description

Tire Pressure Monitoring System Metal Valve Heavy-Duty Truck Commericail Vehicle TPMS Sensor

This tire pressure sensor is designed specifically for commercial vehicles, heavy-duty trucks, trailers, buses, and fleet management applications.

It is an internal truck TPMS sensor provides accurate real-time tire pressure and temperature monitoring to help drivers improve driving safety,

reduce tire-related downtime. It can transfer the pressure and temperate data immdiatedly to receiver to alert drivers when pressure and temperature

is abormal.

It is an OEM-style valve stem design, the sensor is mounted securely inside the tire, protecting it from theft, harsh weather, road debris, and accidental

damage.

Compared with external TPMS sensors, the internal configuration delivers superior measurement accuracy, long-term reliability, and enhanced durability in

demanding transportation environments.

Built for heavy-duty applications, the sensor continuously monitors tire conditions and instantly transmits pressure and temperature data to the TPMS display

system. Early warning alerts help drivers and fleet operators detect slow leaks, underinflation, overinflation, overheating, and abnormal tire conditions

before they become costly failures.

Features

  • The high-frequency transmission method adopts FSK modulation signal, and the
    low-frequency adopts ASK modulation signal
  • Fully imported vehicle grade materials with long service life, high stability, and
    strong anti-interference ability
  • Simultaneously measuring and monitoring air pressure and temperature, with self
    checking and tire leakage monitoring functions
  • IP67 waterproof rate
  • Simple installation

Product Parameter

Battery Type CR2050 (345mAh)
RF Frequency 433.92 MHz ±38 KHz
High-Frequency Modulation FSK
Low-Frequency Receiving Frequency 125 KHz ±5 KHz
Standby Current < 0.7 μA
Transmission Current < 10 mA
RF Transmission Power < 8 dBm (50Ω)
Pressure Measurement Range 0 – 13 Bar
Pressure Resolution 2.75 KPa
Pressure Accuracy ±0.2 Bar (0°C ~ 70°C)
±0.3 Bar (-20°C ~ 85°C)
±0.48 Bar (-40°C ~ 125°C)
Temperature Measurement Range -40°C ~ +125°C
Temperature Resolution 1°C
Temperature Accuracy ±3°C (0°C ~ 70°C)
Operating Temperature -40°C ~ +125°C
Storage Temperature -40°C ~ +125°C
Protection Rating IP67
Battery Life More than 4 Years
Weight 54.4 ± 01g

Metal Valve Commercial Truck Tire Pressure Sensor Heavy Duty Vehicle TPMS Sensor
