6-26 Wheels Commercial Vehicle TPMS Tire Pressure Monitoring System Waterproof Design
6-26 Wheels Commercial Vehicle TPMS Tire Pressure Monitoring System Waterproof Design
6-26 Wheels Commercial Vehicle TPMS Tire Pressure Monitoring System Waterproof Design
6-26 Wheels Commercial Vehicle TPMS Tire Pressure Monitoring System Waterproof Design
6-26 Wheels Commercial Vehicle TPMS Tire Pressure Monitoring System Waterproof Design
6-26 Wheels Commercial Vehicle TPMS Tire Pressure Monitoring System Waterproof Design
6-26 Wheels Commercial Vehicle TPMS Tire Pressure Monitoring System Waterproof Design
6-26 Wheels Commercial Vehicle TPMS Tire Pressure Monitoring System Waterproof Design
6-26 Wheels Commercial Vehicle TPMS Tire Pressure Monitoring System Waterproof Design
6-26 Wheels Commercial Vehicle TPMS Tire Pressure Monitoring System Waterproof Design
Specifications
Waterproofrating :
IP67
Frequency :
433Mhz
Communicationprotocol :
Wireless RF Transmission
Type :
Tire Pressure Monitoring System
Installation :
Bandaged on reels
Operatingtemperaturerange :
-40°C to 85°C
Supported tires :
6-26 tires
Productname :
Truck Trailer Commercial Vehicle TPMS
Dataupdatefrequency :
Real-time Monitoring
Compatibility :
Supports Various Trailer and Truck Models
Monitoringparameters :
Tire Pressure, Tire Temperature
Application :
Truck Trailers and Commercial Vehicles
Powersupply :
Vehicle Power
Warrantyperiod :
1-2 Years
Sensortype :
External/Internal Tire Sensors
Displaytype :
2.8 inch LCD Monitor
Pressure range :
0-13 bar
Brand Name :
OEM
Model Number :
TDS200
Certification :
CE, RoHS
Place of Origin :
Guangdong, China
MOQ :
50 sets
Price :
USD130-USD470/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000sets/month
Delivery Time :
10-20 working days
Packaging Details :
carton
Alerttype :
Visual and Audible Alarms
Description

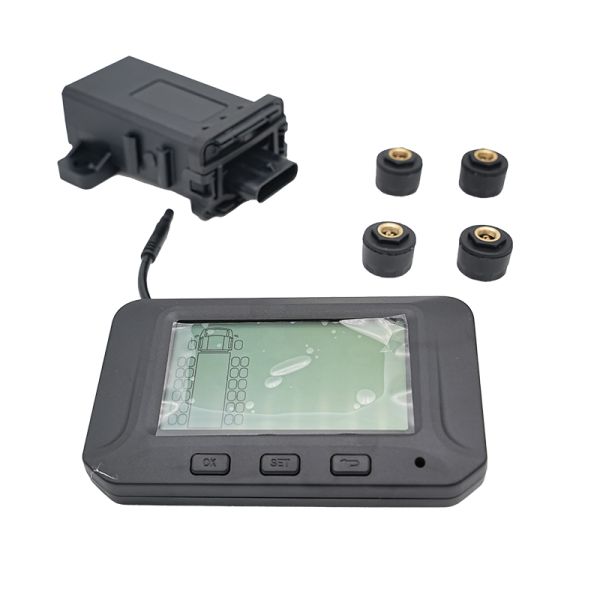

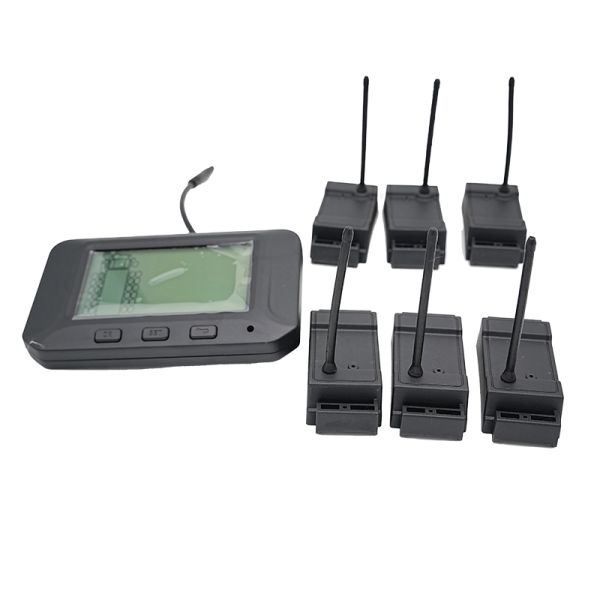

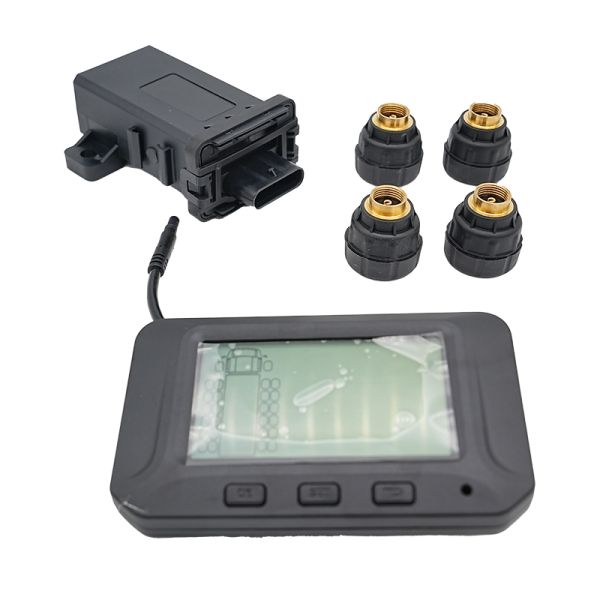

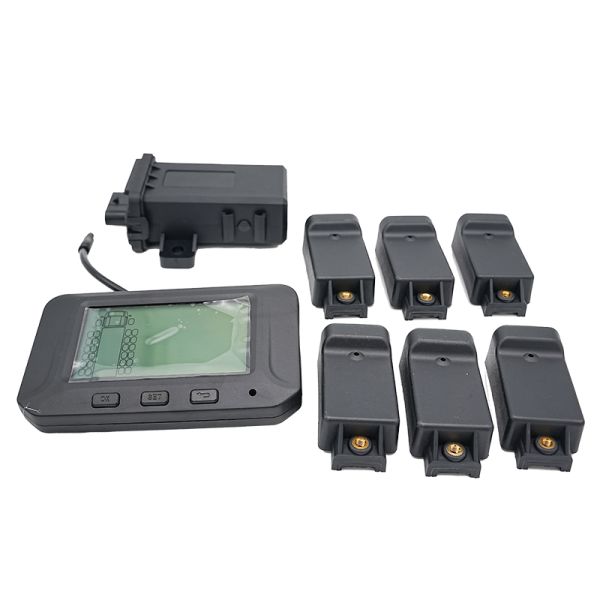

6-26 Wheels Tire Pressure Monitoring System Truck Inerntal TPMS System

This system is for truck, trailer and commercial vehicles. There are 6 tire to 26 tires available. Customers can choose the actual
sensor according to your tires you need.

The operation frequency is 433.92MHz ±68KHz. The LCD is 2.8 inch. Battery can be used more than 5 years.

Features
1) Internal TPMS,6 tires to 26 tires
2) TRUCK's power DC9V-DC30v
3) With rs232 port, can be connected to orther device, for example GPS module, Navigation ect.
4) The monitor can be installed in the truck and not fixed on the dashboard, we named embedded
5) Operating frequency: 433.92MHz ±68KHz
6) Low pressure alarm threshold default: 10Bar
7) High pressure alarm threshold default: 12Bar and you can setting it by yourself
8) It requires professional installation tire removal tool
9) High-definition 2.8-inch black/white LCD display
10) Reapter included for trailers.
11) Battery life: >5 years. 16 hours/day
12) Warranty: 1 year.

Specifications

Display

Operating frequency 433.92MHz ±68KHz
Operating voltage DC9V-DC30V
Operating current ≤60mA
Static current ≤10mA

Default warning value

Low pressure alarm threshold default 10Bar
High pressure alarm threshold default 12Bar and you can setting it by yourself
High temperature 80°C

Sensor

Operating frequency 433.92MHz ± 28KHz
Operating voltage 2.0~3.3V
Operating current ≤10mA
Static current ≤1uA
Operating temperature -30~+85°C
Storage temperature -30°C~+85°C
Battery Maxell 2450 550MHA
Battery lifespan ≥ 5 years
Pressure range 0-14Bar/0-203Psi

Receiver

Operating frequency 433.92MHz ±68KHz
Operating voltage DC9V-DC30V
Operating current ≤50mA
Static current ≤10mA
Operating temperature -30°C ~ +85°C

Repeater

Operating frequency 433.92MHz ± 68KHz
Operating voltage DC9V-DC30V
Operating current ≤50mA
Static current ≤10mA
Operating temperature -40~+125°C
Storage temperature -40°C~+125°C
Power supply Trunk power
RF Transmitter power <10dbm
RF receiver sensitivity >-105dbm
