High-performance 3.2-inch IPS LCD display designed for industrial control applications, featuring excellent viewing angles and high brightness for demanding environments.

• High-quality IPS panel technology for superior viewing angles
• Excellent brightness (600cd/m²) for industrial environments
• Multiple interface options (MCU/SPI/RGB) for flexible integration
• Wide operating temperature range (-20~+70℃)
• Compact module size with 4:3 aspect ratio

3.2-Inch SPI/RGB/MCU TFT LCD Display, 240×320 Pixels, FPC, ST7789 Driver IC

3.2-Inch SPI/RGB/MCU TFT LCD Display, TFT LCD Display, 240×320 Pixels TFT LCD Display

Product Introduction

The 3.2-inch SPI/RGB/MCU TFT display is a full-color TFT LCD module featuring a 240 × 320 dot matrix and supports multiple interfaces, SPI, MCU and RGB. It delivers rich color reproduction and high resolution, offering users a clear and vivid visual experience. This display is suitable for a wide range of applications, including industrial equipment, handheld detection instruments, beauty devices, smart home systems, and consumer electronics.

The 3.2-inch SPI/MCU/RGB TFT model JT-3.2IPS integrates an ST7789 driver IC, supports multiple interfaces, and operates at a supply voltage (VDD) ranging from 2.8V to 3.3V. It can function in temperatures from -20℃ to +70℃ and be stored in temperatures from -30℃ to +80℃.

In addition to the standard product, Jingtai Liquid Crystal Display Technology offers differentiated customization solutions for this 3.2-inch TFT display, including but not limited to:

1. Backlight Customization: Adjust backlight type and brightness according to product requirements.

2. Interface Customization: Modify the structure and interface of the LCD cable to fit specific hardware platforms.

3. Touch Screen Integration: Capacitive touch panel is available to enhance user interaction.

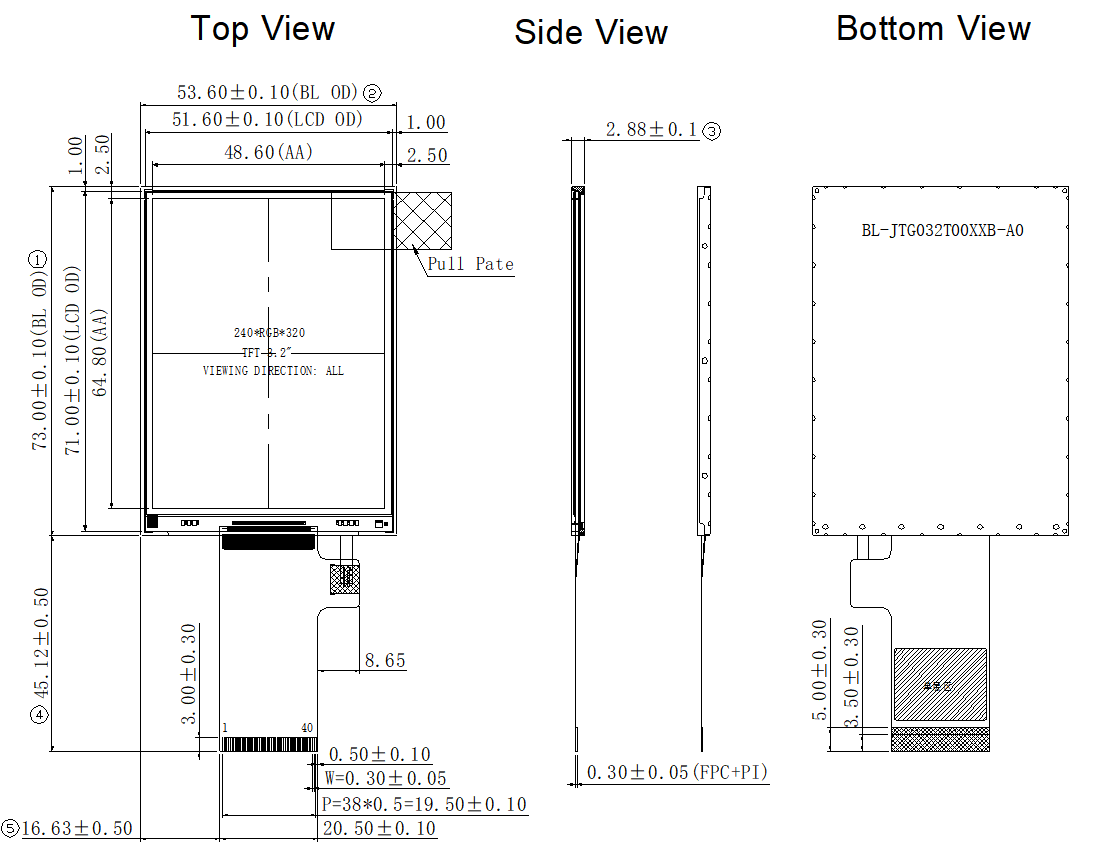

3.2 inch IPS 240*320 TFT Touch Display Module Drawing

Electrical Maximum Ratings
