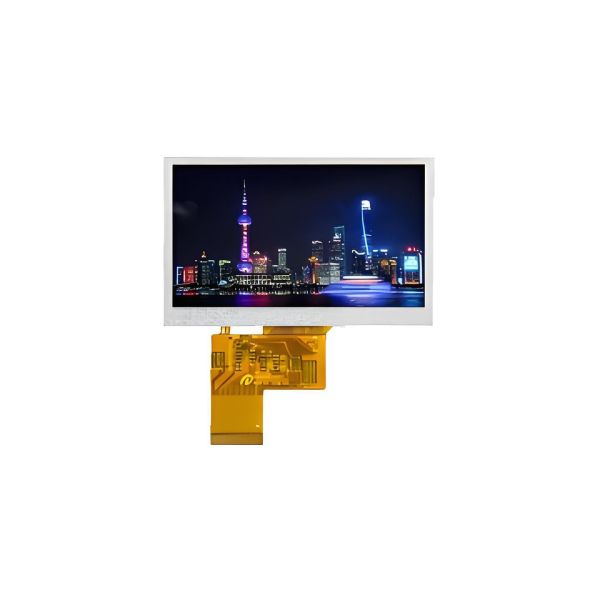

High Brightness TN TFT Industrial LCD Display 4.3 Inch 480x272 Pixels Resolution
High Brightness TN TFT Industrial LCD Display 4.3 Inch 480x272 Pixels Resolution
High Brightness TN TFT Industrial LCD Display 4.3 Inch 480x272 Pixels Resolution
High Brightness TN TFT Industrial LCD Display 4.3 Inch 480x272 Pixels Resolution
High Brightness TN TFT Industrial LCD Display 4.3 Inch 480x272 Pixels Resolution
High Brightness TN TFT Industrial LCD Display 4.3 Inch 480x272 Pixels Resolution
Specifications
Brand Name :
Jingtai
Model Number :
JT-4.3TN
Place of Origin :
Shenzhen/China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Delivery Time :
1-5 weeks
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
1-20
Key Words :
4.3 Inch TN TFT
Resolution :
480*272
Viewing Angle :
60/65/70/70
Luminance :
250cd/m²(Typ) 500cd/m²(Typ)
Interface Definition :
MCU/RGB
Touch Screen :
CTP
CTP Interface :
12C
CTP Structure :
GF/GFF
Description
4.3 Inch TN TFT Display Screen
High-performance TFT display designed for industrial control applications, featuring excellent visibility and durability.
Application Industrial Control
Number of pixels 480*272pixels
Active Area 53.86*95.04mm
Module Outline 67.1*105.4*3.0mm
Aspect Ratio 18:9
Display Mode Normally White
Viewing Angle (CR>10) 60/65/70/70(Typ)
Contrast Ratio 600MIN, 700(Typ)
NTSC 50%(Typ)
LCM Brightness 250cd/m²(Typ) 500cd/m²(Typ)
Interface MCU/RGB
Operating Temperature -20~+70℃
Storage Temperature -30~+80℃

500-nits TFT LCD Module, Capacitive Touch Screen TFT LCD Module, 4.3-Inch TN TFT LCD Module

About this item: JT-4.3TN

Meet your demanding display requirements with our 4.3-inch high-brightness TFT LCD module, delivering 500 nits of brightness and a capacitive touch screen. With a sharp 480 × 272 resolution, this module ensures excellent visibility under various lighting conditions, making it ideal for industrial applications.

Key Features:

High Brightness: 500 nits for clear readability even in direct sunlight

Resolution: 480 × 272 pixels for sharp, detailed imagery

Touch Options: Capacitive Touch Screens

Wide Temperature Range: Operating temperature of -20℃ to +70℃, suitable for industrial use

Interface: RGB interface or MCU interface for easy system integration

Customization: Flexible FPC and touch screen customization to meet specific needs

Specifications:

Screen Size: 4.3-inch

Resolution: 480 × 272 pixels

Brightness: 500 nits

Viewing Angle: 60°/65°/70°/70° (IPS)

Touch Screen Options: Capacitive Touch Screen (CTP)

Interface: RGB or MCU

Operating Temperature: -20℃ to +70℃

Storage Temperature: -30℃ to +80℃

Aspect Ratio: 18:9

Supply Voltage (Vdd): 3.0V to 3.6V

Applications:

Industrial equipment: control panels, monitoring systems

Home automation: smart device interfaces

Point of Sale (POS): customer interaction terminals

Security systems: surveillance monitoring displays

Product Advantages:

Excellent Visibility: 500 nits brightness ensures clarity in all lighting conditions

Wide Viewing Angles: IPS technology maintains image integrity from any viewing position

Durability: Wide temperature tolerance and robust construction for harsh environments

Customization: Flexible touch screen and FPC options for tailored solutions

Cost-Effective: Competitive pricing without quality compromise

Easy Integration: Standard RGB interface and optional touch screen simplify system integration

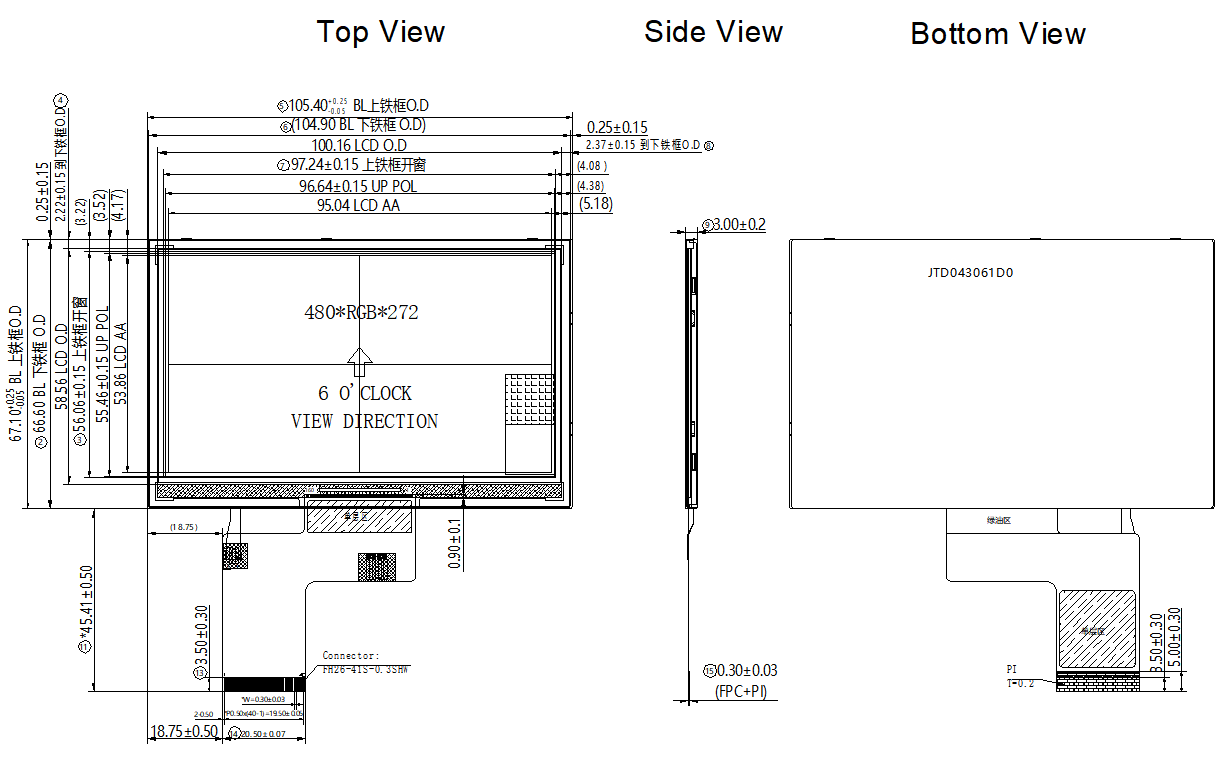

4.3 inch TN 480*272 TFT Touch Display Module Drawing

High Brightness TN TFT Industrial LCD Display 4.3 Inch 480x272 Pixels Resolution

High Brightness TN TFT Industrial LCD Display 4.3 Inch 480x272 Pixels Resolution

High Brightness TN TFT Industrial LCD Display 4.3 Inch 480x272 Pixels Resolution

Conclusion:

The 4.3-inch high-brightness 500-nits TFT LCD module with 480 × 272 resolution and capacitive touch screen provides an optimal display solution for applications requiring superior visibility and reliability. Whether deployed in industrial control systems, or smart home devices, this module delivers vibrant, consistent performance. Enhance your display capabilities with this advanced TFT technology.
