OEM 3.53 Inch IPS TFT LCD Display 480×800 Dots Industrial TFT Display 250cd/M2
OEM 3.53 Inch IPS TFT LCD Display 480×800 Dots Industrial TFT Display 250cd/M2
OEM 3.53 Inch IPS TFT LCD Display 480×800 Dots Industrial TFT Display 250cd/M2
OEM 3.53 Inch IPS TFT LCD Display 480×800 Dots Industrial TFT Display 250cd/M2
OEM 3.53 Inch IPS TFT LCD Display 480×800 Dots Industrial TFT Display 250cd/M2
OEM 3.53 Inch IPS TFT LCD Display 480×800 Dots Industrial TFT Display 250cd/M2
Specifications
Brand Name :
Jingtai
Model Number :
JT-3.53IPS
Place of Origin :
Shenzhen/China
MOQ :
5pcs
Payment Terms :
T/T,MoneyGram,Western Union,L/C,D/P,D/A
Delivery Time :
1-5 weeks
Certification :
ISO9001 / ISO14000
Supply Ability :
3000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
1-20
Key Words :
3.53 Inch IPS TFT
Resolution :
480*800
Display Mode :
IPS Full Viewing Angle
Luminance :
250cd/m²(Typ) 500cd/m²(Typ)
Interface Definition :
SPI+RGB/MIPI
Touch Screen :
CTP
CTP Interface :
12C
CTP Structure :
GF/GFF
Description
3.53 Inch IPS TFT LCD Display Screen
High-performance industrial-grade IPS TFT LCD display with excellent viewing angles and contrast ratio, designed for industrial control applications.
Application Industrial Control
Number of pixels 480*800 pixels
Active Area 45.36*75.6mm
Module Outline 51.32*86.61*3.56mm
Aspect Ratio 5:3
Display Mode Normally Black
Viewing Angle (CR>10) 85/85/85/85 (Typ)
Contrast Ratio 800MIN, 1000 (Typ)
NTSC 69% (Typ)
LCM Brightness 250cd/m² (Typ) 500cd/m² (Typ)
Interface SPI+RGB/MIPI
Operating Temperature -20~+70℃
Storage Temperature -30~+80℃

3.53-Inch TFT IPS LCD Display, SPI+RGB/MIPI Interface TFT LCD Display, 480×800 Dots TFT LCD Display

3.5-Inch TFT IPS LCD Display 480×800 SPI+RGB/MIPI Interface – Product Introduction

Product Quick Review

Model No.: JT-3.53IPS

Resolution: 480 × 800 dots

View Direction: 12H

Controller IC: ST7701SN

Brightness: 250 cd/m²

Touch Panel: Capacitive Touch Panel

Description

The JT-3.53IPS is a 3.53-inch TFT-LCD display module with a resolution of 480 × 800 pixels and a brightness of 250 cd/m². It incorporates the ST7701SN controller IC and supports SPI+RGB and MIPI interfaces. The module dimensions are 51.32 × 86.61 × 3.56 mm, with an active display area of 45.36 × 75.6 mm. It operates at an analog supply voltage ranging from 2.5V to 3.3V, with a typical value of 2.8V.

This display module utilizes a IPS-type screen with a 12H viewing direction. The JT-3.53IPS can operate within a temperature range of -20°C to +70°C and can be stored in temperatures ranging from -30°C to +80°C.

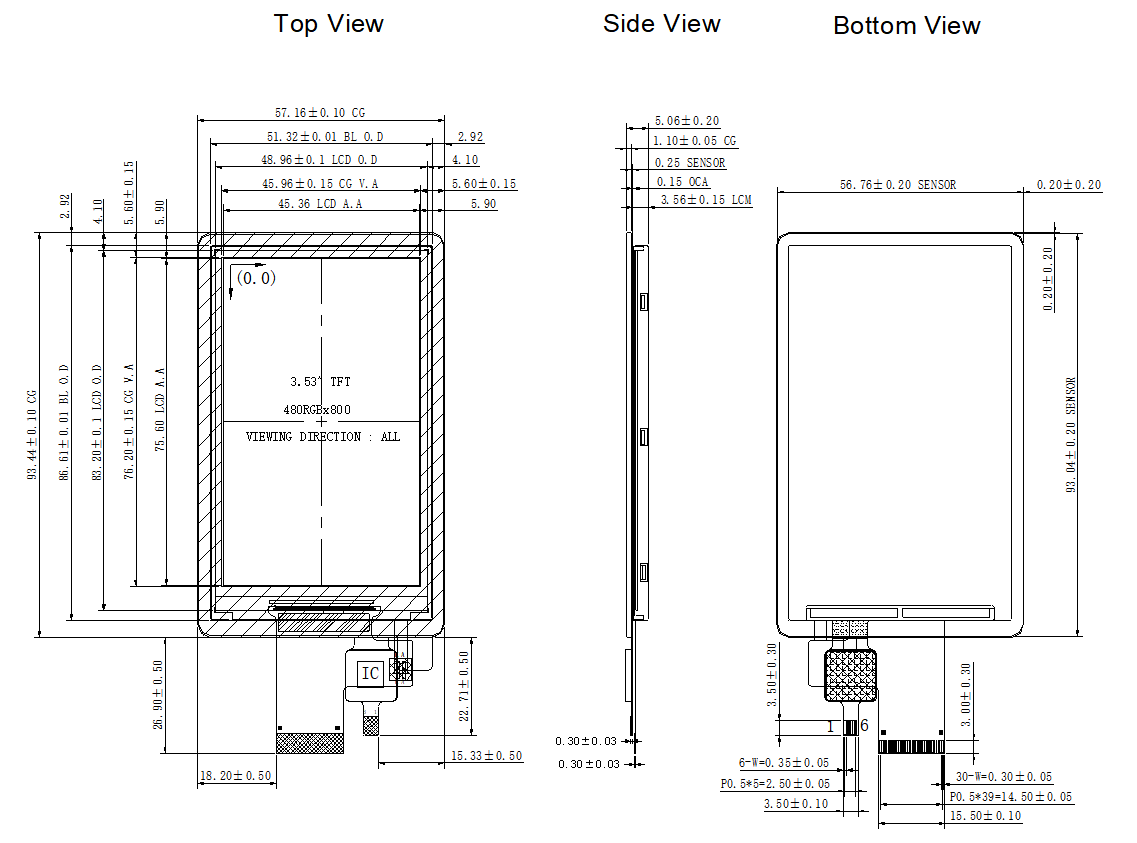

3.53 inch IPS 480*800 TFT Touch Display Module Drawing

OEM 3.53 Inch IPS TFT LCD Display 480×800 Dots Industrial TFT Display 250cd/M2

OEM 3.53 Inch IPS TFT LCD Display 480×800 Dots Industrial TFT Display 250cd/M2

OEM 3.53 Inch IPS TFT LCD Display 480×800 Dots Industrial TFT Display 250cd/M2

Absolute Maximum Limit

Item Symbol Value Unit
Power supply voltage for logic VDD 1.6~3.3 V
Input voltage Vin VDD+0.3 V
Operating temperature Topr -20 to 70 °C
Storage temperature Tstg -30 to 80 °C
