800*480 LCD TFT 4.3-Inch IPS, LCD TFT 4.3-Inch, RGB/LVDS 800*480 LCD

4.3-Inch IPS RGB/LVDS TFT LCD, TFT 800*480 IPS Display

Description

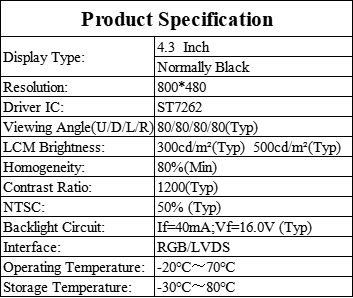

The JT-4.3IPSL is a 4.3-inch diagonal IPS TFT LCD module with full viewing angles and a resolution of 800*480 pixels. This module integrates the ST7262 controller and driver IC, supports an RGB or LVDS interface, and operates at a supply voltage (Vdd) ranging from 3.0V to 3.6V. It features IPS technology with wide viewing angles of 80°/80°/80°/80° (left/right/up/down) and a 18:9 aspect ratio.

The JT-4.3IPSL is a landscape-mode TFT LCD module with a brightness of 250 nits. It is available with capacitive touch screens. The module operates in temperatures from -20℃ to +70℃ and can be stored in temperatures from -30℃ to +80℃.

Applications

Widely used in industrial control, coffee machines, microwave ovens, scanners, home automation systems, access control systems, monitoring equipment, analyzers, security systems, garden irrigation systems, POS terminals, cash readers, and more.

Product Advantages

1. Full IPS viewing angles (80°/80°/80°/80°) ensure excellent visibility from any position—whether mounted overhead, placed on a table, or used handheld.

2. Superior display performance in background color, luminance, viewing angle, and intensity.

3. Wide operating temperature range (-20℃ to +70℃) for industrial applications.

4. Flexible configuration with or without resistive touch screen; customized capacitive touch panels (CTP) and FPC designs available.

5. Cost-effective solution within the LCD industry.

6. Easy to install and maintain.

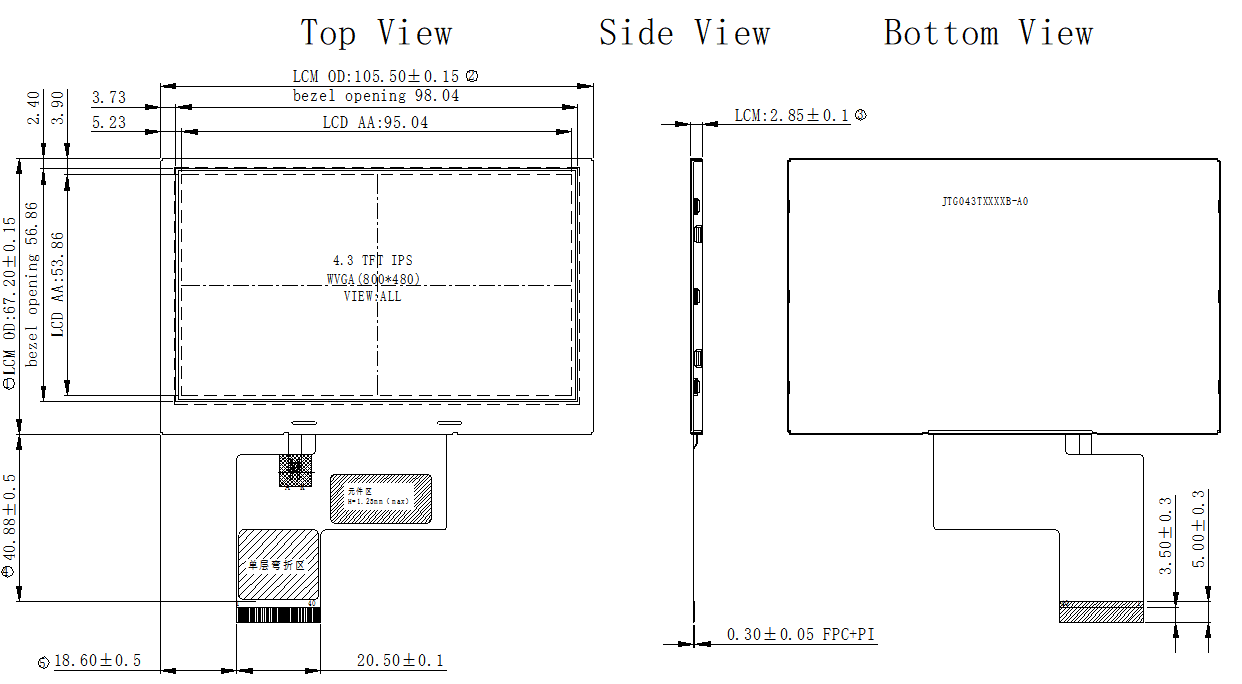

4.3 inch IPS 800*480 Landscape TFT Touch Display Module Drawing

Customer Service

1. We provide professional analysis and optimized solutions based on your project requirements before formal agreement.

2. All inquiries regarding products or pricing will be responded to within 24 hours.

3. We keep customers informed throughout the production process and facilitate factory quality checks when needed.

4. One-year warranty on all LCD displays; defective products will be returned or replaced during the warranty period.

5. Free technical training at our factory for customers before delivery.

6. We focus on creating customer value through conference calls, online technical support, or on-site assistance as required.

FAQ

1. How can I place an order?

JINGTAI: Provide detailed requirements for a prompt quotation. For design discussions or customized solutions, contact us via email or phone.

2. What types of displays do you provide?

JINGTAI: We supply TFT color LCD modules, monochrome LCDs, OLEDs, digital frame modules, Android tablets, and more, supporting indoor/outdoor, industrial, and commercial applications with standard or customized solutions.

3. What is the warranty policy?

JINGTAI: We offer a 1-year warranty with return and replacement services for defective products.

4. What are your delivery terms?

JINGTAI: We accept EXW, FOB, FCA, and other terms to suit your convenience and cost requirements.
