CTP Capacitive 3.5 Inch TN Industrial LCD Display IPS LCD Screen 320x480 Resolution
CTP Capacitive 3.5 Inch TN Industrial LCD Display IPS LCD Screen 320x480 Resolution
CTP Capacitive 3.5 Inch TN Industrial LCD Display IPS LCD Screen 320x480 Resolution
CTP Capacitive 3.5 Inch TN Industrial LCD Display IPS LCD Screen 320x480 Resolution
CTP Capacitive 3.5 Inch TN Industrial LCD Display IPS LCD Screen 320x480 Resolution
CTP Capacitive 3.5 Inch TN Industrial LCD Display IPS LCD Screen 320x480 Resolution
Specifications
Brand Name :
Jingtai
Model Number :
JT-3.5TN
Place of Origin :
Shenzhen/China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,MoneyGram,L/C,D/A,D/P
Delivery Time :
1-5 weeks
Certification :
ISO9001 / ISO1400
Supply Ability :
4000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
1-20
Key Words :
3.5 Inch TN
Resolution :
320*480
Viewing Angle :
60/60/70/70
Luminance :
250cd/m²(Typ) 500cd/m²(Typ)
Interface Definition :
MCU/SPI/RGB/MIPI
Touch Screen :
CTP
CTP Interface :
12C
CTP Structure :
GF/GFF
Description
3.5 Inch TN LCD Display Screen
High-performance TN LCD display designed for industrial control applications, offering excellent visibility and reliability in demanding environments.
Specification Value
Application Industrial Control
Number of pixels 320*480 pixels
Active Area 48.96*73.44mm
Module Outline 54.94*85.5*2.40mm
Aspect Ratio 3:2
Display Mode Normally White
Viewing Angle (CR>10) 60/60/70/70 (Typ)
Contrast Ratio 500 (Typ)
NTSC 85% (Typ)
LCM Brightness 250cd/m² (Typ) 500cd/m² (Typ)
Interface MCU/SPI/RGB/MIPI
Operating Temperature -20~+70℃
Storage Temperature -30~+80℃

CTP TFT Display, 3.5-Inch TN TFT Display 320×480, 3.5-Inch TFT Display

3.5-Inch TN 320×480 Portrait RGB/MCU/SPI/MIPI LCD with CTP Capacitive Touch Screen, ST7796P Driver IC

Product Overview

The Jingtai Liquid Crystal Display Technology JT-3.5TN is a 3.5-inch TFT LCD module utilizing thin-film transistors as active elements within its pixel array. It consists of a single transmissive TN-LCD panel with a 3:2 aspect ratio, offering a resolution of 320 (RGB) × 480 pixels and capable of displaying.

The JT-3.5TN features a CTP (Capacitive Touch) screen with OCA lamination, constructed with a G+G (Glass + Glass) structure. This module supports multiple interfaces such as RGB, MCU, SPI and MIPI for display signals and an I²C interface for touch functionality.

The JT-3.5TN TFT LCD module is widely used in various applications, including industrial control system, smart devices, mobile POS systems, cash readers, GPS handheld phones, handheld food ordering machines, security systems, home automation, mini audio players, baby monitors, and other handheld devices.

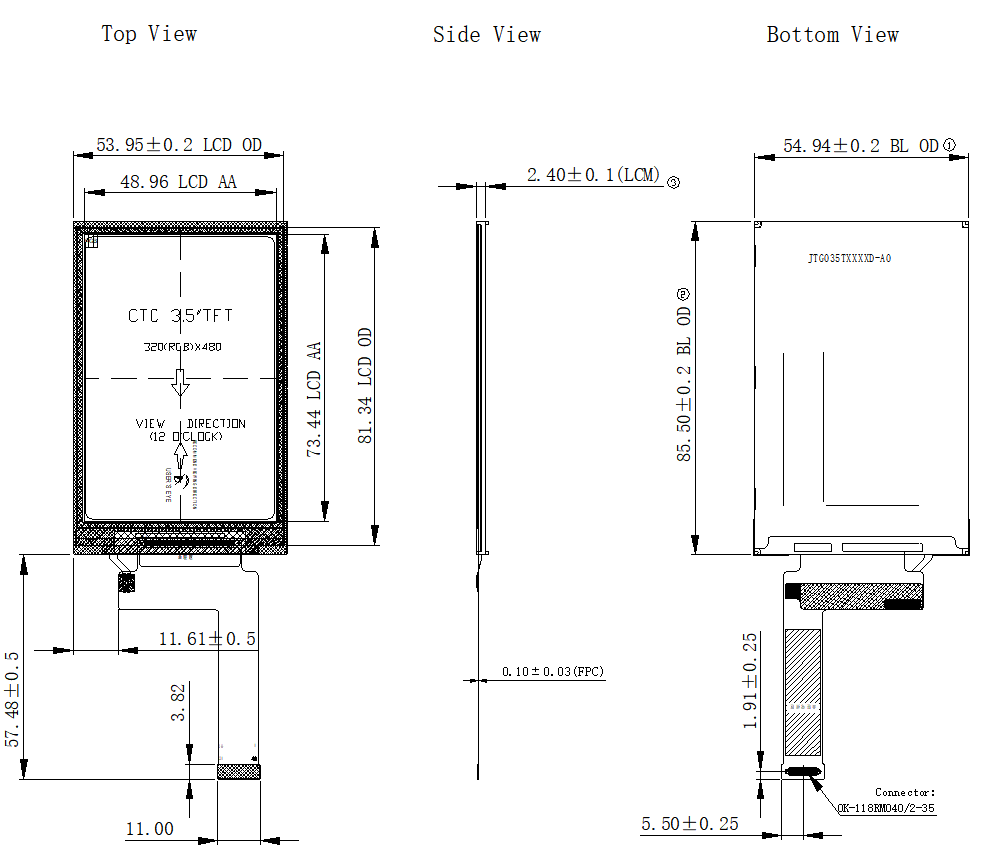

3.5 inch TN 320*480 TFT Touch Display Module Drawing

CTP Capacitive 3.5 Inch TN Industrial LCD Display IPS LCD Screen 320x480 Resolution

CTP Capacitive 3.5 Inch TN Industrial LCD Display IPS LCD Screen 320x480 Resolution

CTP Capacitive 3.5 Inch TN Industrial LCD Display IPS LCD Screen 320x480 Resolution

Maximum Absolute Limit

Item Symbol Value Unit
Power supply voltage for logic VDD 1.6~3.3 V
Input voltage Vin VDD+0.3 V
Operating temperature Topr -20 to 70 °C
Storage temperature Tstg -30 to 80 °C
