3.97 Inch IPS TFT LCD Touch Screen Panel 480x800 Support SPI RGB MIPI Interfaces
3.97 Inch IPS TFT LCD Touch Screen Panel 480x800 Support SPI RGB MIPI Interfaces
3.97 Inch IPS TFT LCD Touch Screen Panel 480x800 Support SPI RGB MIPI Interfaces
3.97 Inch IPS TFT LCD Touch Screen Panel 480x800 Support SPI RGB MIPI Interfaces
3.97 Inch IPS TFT LCD Touch Screen Panel 480x800 Support SPI RGB MIPI Interfaces
3.97 Inch IPS TFT LCD Touch Screen Panel 480x800 Support SPI RGB MIPI Interfaces

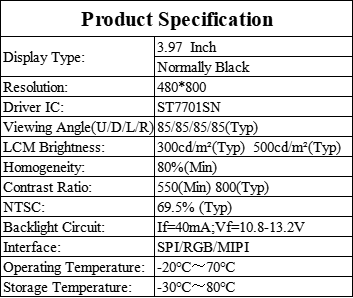

Specifications
Brand Name :
Jingtai
Model Number :
JT-3.97IPS
Place of Origin :
Shenzhen/China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/P,D/A
Delivery Time :
1-5 weeks
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
The most competitive price and the price is negotiable based on order quantity
Key Words :
3.97 Inch IPS TFT
Resolution :
480*800
Display Mode :
IPS Full Viewing Angle
Luminance :
250cd/m²(Typ) 500cd/m²(Typ)
Interface Definition :
SPI/RGB/MIPI
Touch Screen :
CTP
CTP Interface :
12C
CTP Structure :
GF/GFF
Description
Application Industrial Control
Number of pixels 480*800pixels
Active Area 51.84*86.4mm

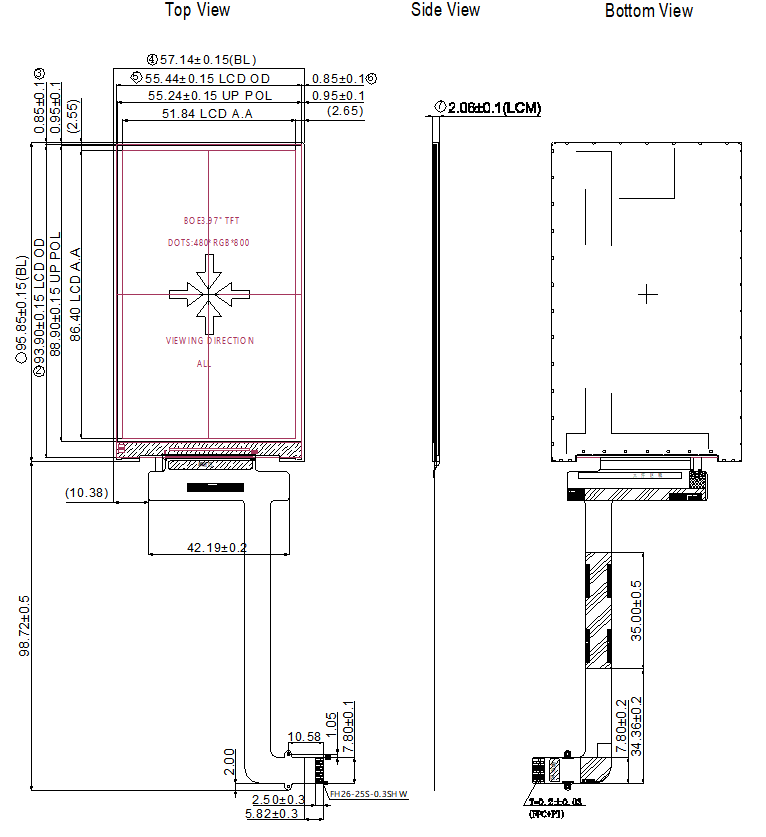

Module Outline 57.14*95.85*2.06mm
Aspect Ratio 16:10
Display Mode Normally Black
Viewing Angle(CR>10) 85/85/85/85(Typ)
Contrast Ratio 500MIN, 800(Typ)
NTSC 69.5%(Typ)
LCM Brightness 250cd/m²(Typ) 500cd/m²(Typ)
Interface SPI/RGB/MIPI
Operating Temperature -20~+70℃
Storage Temperature -30~+80℃
