10.1 Inch Industrial LCD Panel IPS WS LCD Display Screen With 1024x600 Resolution
10.1 Inch Industrial LCD Panel IPS WS LCD Display Screen With 1024x600 Resolution
10.1 Inch Industrial LCD Panel IPS WS LCD Display Screen With 1024x600 Resolution
10.1 Inch Industrial LCD Panel IPS WS LCD Display Screen With 1024x600 Resolution
Specifications
Brand Name :
Jingtai
Model Number :
JT-10.1IPSWS
Place of Origin :
Shenzhen/China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Delivery Time :
1-5 weeks
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
1-20
Key Words :
10.1 Inch IPS WS
Resolution :
1024*600
Display Mode :
IPS Full Viewing Angle
Luminance :
250cd/m²(Typ) 500cd/m²(Typ) 800cd/m²(Typ) 1000cd/m²(Typ)
Interface Definition :
MIPI/RGB
Touch Screen :
CTP
CTP Interface :
12C/RGB
CTP Structure :
GFF/GG
Description
10.1 Inch IPS WS LCD Display Screen Middle Size
High-performance industrial LCD display with excellent viewing angles and multiple brightness options.
Specification Details
Application Industrial Control
Number of pixels 1024×600 pixels
Active Area 222.72×125.28mm
Module Outline 235×143×2.9mm
Aspect Ratio 16:9
Display Mode Normally Black
Viewing Angle (CR>10) 85/85/85/85 (Typ)
Contrast Ratio 800MIN (Typ)
NTSC 50% (Typ)
LCM Brightness 250cd/m² (Typ)
500cd/m² (Typ)
800cd/m² (Typ)
1000cd/m² (Typ)
Interface MIPI/RGB
Operating Temperature -20~+70℃
Storage Temperature -30~+80℃

10.1-Inch PCAP TFT Display | 1024×600 IPS | RGB/MIPI Interface & LED Backlight

Model: JT-10.1IPSWS

Product Description

The JT-10.1IPSWS is a 10.1-inch high-brightness TFT-LCD module featuring a 1024×600 IPS panel with RGB and MIPI interface and integrated capacitive touch panel (CTP). Utilizing IPS technology, this display offers wide viewing angles of 85°/85°/85°/85° (Left/Right/Up/Down, typical) and delivers a typical brightness of 250 nits. For applications requiring enhanced visibility, the brightness can be customized up to 1000 nits upon request.

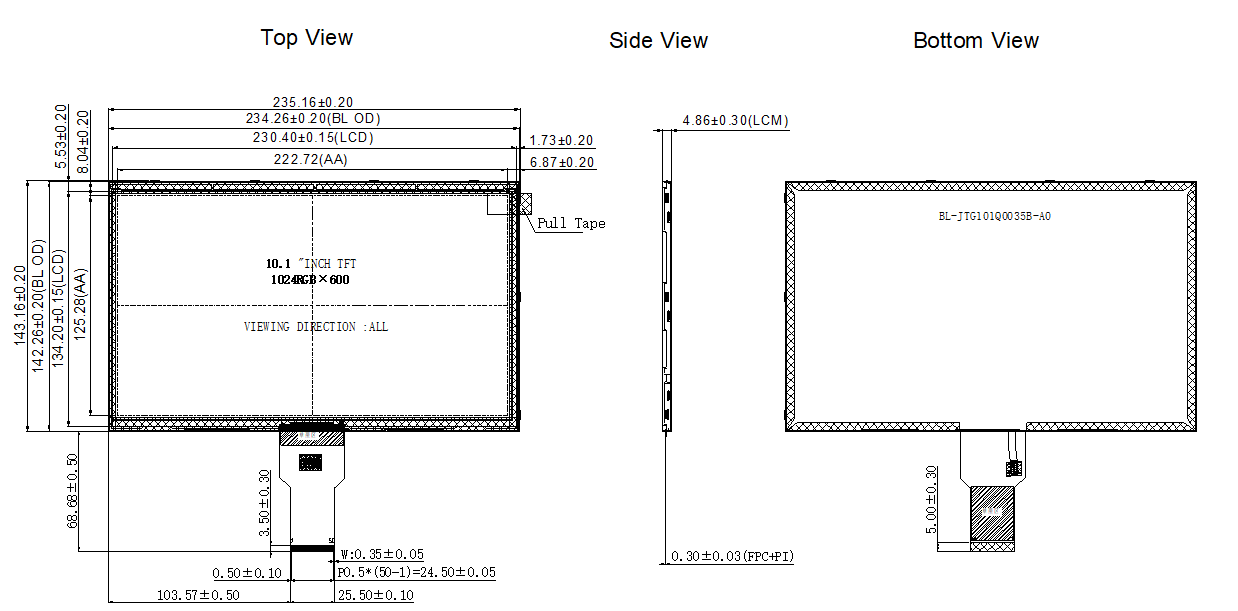

10.1 inch IPS WS TFT 1024*600 LCD Display Product Drawing

10.1 Inch Industrial LCD Panel IPS WS LCD Display Screen With 1024x600 Resolution

10.1 Inch Industrial LCD Panel IPS WS LCD Display Screen With 1024x600 Resolution

10.1 Inch Industrial LCD Panel IPS WS LCD Display Screen With 1024x600 Resolution
