IPS Technology Industrial TFT LCD Screen 2.83 Inch 480x640 Pixels LCD Display Panel
IPS Technology Industrial TFT LCD Screen 2.83 Inch 480x640 Pixels LCD Display Panel
IPS Technology Industrial TFT LCD Screen 2.83 Inch 480x640 Pixels LCD Display Panel
IPS Technology Industrial TFT LCD Screen 2.83 Inch 480x640 Pixels LCD Display Panel
Specifications
Brand Name :
Jingtai
Model Number :
JT-2.83IPS
Place of Origin :
Shenzhen/China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Delivery Time :
1-5 weeks
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
1-20
Key Words :
2.83 Inch IPS
Resolution :
480*640
Display Mode :
IPS Full Viewing Angle
Luminance :
250cd/m²(Typ) 500cd/m²(Typ) 700cd/m²(Typ)
Interface Definition :
MIPI/SPI+RGB
Touch Screen :
CTP
CTP Interface :
12C
CTP Structure :
GF/GFF
Description
2.83 Inch IPS TFT LCD Display Screen
Product Overview

High-performance 2.83" IPS TFT LCD display designed for industrial control applications, featuring excellent viewing angles and multiple brightness options.

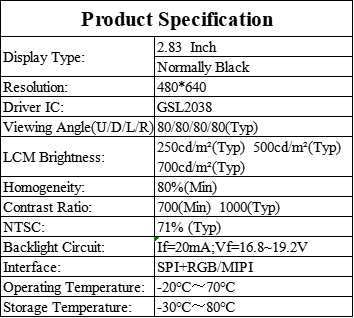

Technical Specifications
Parameter Specification
Application Industrial Control
Number of pixels 480×640 pixels
Active Area 43.2×57.6mm
Module Outline 45.9×65.2×1.56mm
Aspect Ratio 4:3
Display Mode Normally Black
Viewing Angle (CR>10) 80/80/80/80 (Typ)
Contrast Ratio 700MIN, 1000 (Typ)
NTSC 71% (Typ)
LCM Brightness 250cd/m² (Typ)
500cd/m² (Typ)
700cd/m² (Typ)
Interface MIPI/SPI+RGB
Operating Temperature -20~+70℃
Storage Temperature -30~+80℃
Key Features
IPS Technology: Wide viewing angles with consistent color reproduction
Multiple Brightness Options: Available in 250cd/m², 500cd/m², and 700cd/m² variants
Robust Construction: Designed for industrial environments with wide temperature tolerance
Flexible Interface: Supports both MIPI and SPI+RGB interfaces

Industrial TFT Display Module ISO14000, 2.83-Inch Industrial TFT Display, IPS TFT Display Module

The JT-2.83IPS is a 2.83-inch portrait-mode IPS TFT LCD display module with wide viewing angles.

Product Description

1. Resolution: 480 × 640 pixels

2. Integrated ST77015 driver IC

3. Interface: Supports SPI + RGB OR MIPI

4. Operating voltage (Vdd): 1.6V to 3.3V (typical: 2.8V)

5. Brightness: 250 nits (typical)

6. Viewing mode: Portrait (landscape orientation and brightness customization available upon request)

7. Operating temperature: -20°C to +70°C

8. Storage temperature: -30°C to +80°C

This display is ideal for applications including industrial control, benchtop laboratory equipment, security systems, home automation, mini audio players, baby monitors, and other handheld devices.

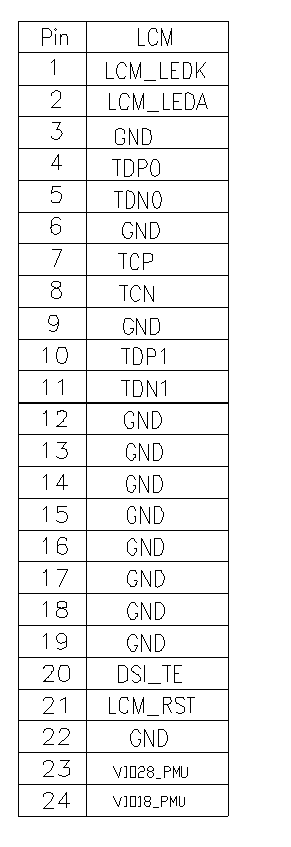

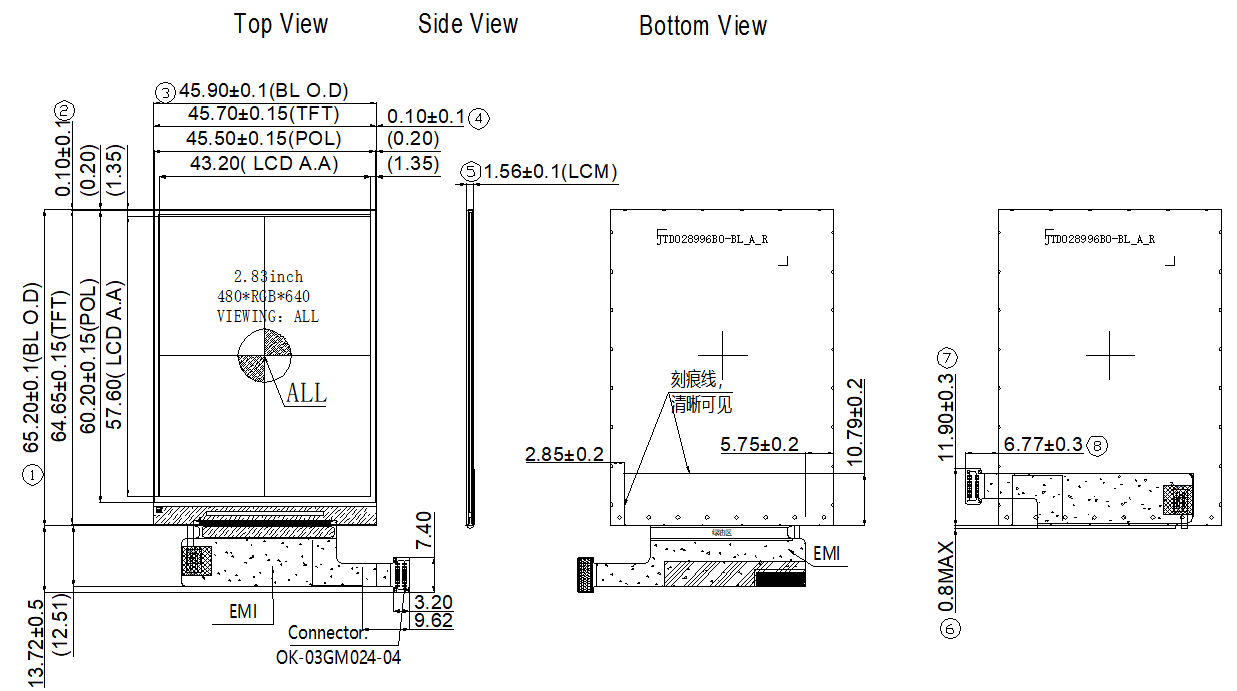

2.83 inch TFT 480*640 Touch Display Module Drawing

IPS Technology Industrial TFT LCD Screen 2.83 Inch 480x640 Pixels LCD Display Panel

IPS Technology Industrial TFT LCD Screen 2.83 Inch 480x640 Pixels LCD Display Panel

IPS Technology Industrial TFT LCD Screen 2.83 Inch 480x640 Pixels LCD Display Panel

Quality Assurance

We implement a rigorous 3-step 100% testing process for each unit to ensure high product quality. Our QA manager brings over 14 years of experience in the LCD industry, while key manufacturing and quality operators each possess 7–8 years of specialized experience. Our team’s extensive expertise in the LCD field guarantees reliable quality for all customers.

All defective products are eligible for return and replacement, and all items are ROHS compliant.

FAQ

1. How can I place an order?

Jingtai: Please provide your detailed requirements for a prompt quotation. For design discussions or customized solutions, contact us via email, WhatsApp, or phone for a tailored LCD proposal.

2. What types of displays do you provide?

Jingtai: We supply TFT color LCD modules, monochrome LCDs, OLED displays, digital frame modules, Android tablets, and more. We support indoor/outdoor, industrial, and commercial applications, offering both standard and fully customized solutions with off-the-shelf or design-in services.

3. What is the warranty policy?

Jingtai: We offer a 1-year warranty. All defective products can be returned and replaced.

4. What are your delivery terms?

Jingtai: We accept EXW, FOB, FCA, and other terms. You may select the most convenient or cost-effective option.
