3.3 Inch IPS LCD Touch Display Module 300cd/M2 Luminance For Industrial Control
3.3 Inch IPS LCD Touch Display Module 300cd/M2 Luminance For Industrial Control
Specifications
Brand Name :
Jingtai
Model Number :
JT-3.3IPS
Place of Origin :
Shenzhen/China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Delivery Time :
1-5 weeks
Certification :
ISO9001 / ISO14000
Supply Ability :
4000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
The most competitive price and the price is negotiable based on order quantity
Key Words :
3.3 Inch IPS TFT
Resolution :
320*480
Display Mode :
IPS Full Viewing Angle
Luminance :
300cd/m²(Typ) 600cd/m²(Typ)
Interface Definition :
SPI/RGB
Touch Screen :
CTP
CTP Interface :
12C
CTP Structure :
GF/GFF

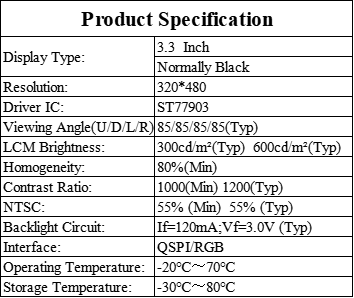

Description
Application Industrial Control
Number of pixels 320*480pixels
Active Area 46.46*69.7mm

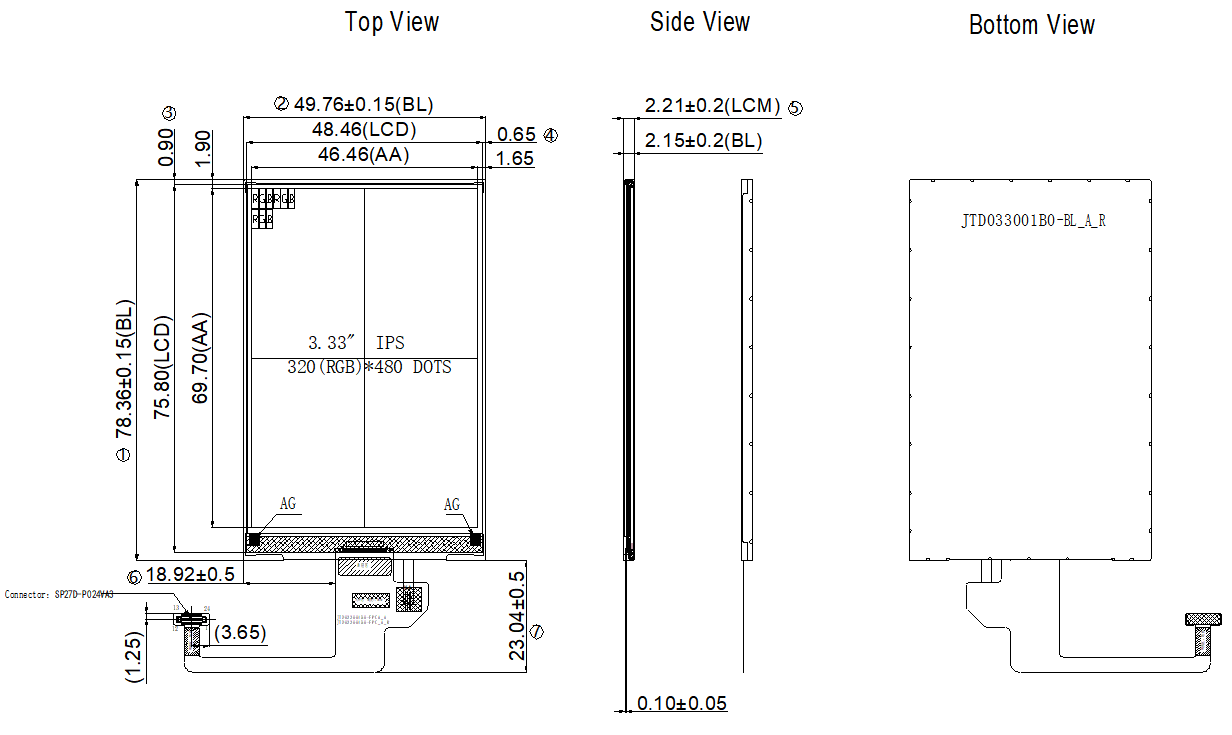

Module Outline 49.76*78.36*2.21mm
Aspect Ratio 3:2
Display Mode Normally Black
Viewing Angle(CR>10) 85/85/85/85(Typ)
Contrast Ratio 1000MIN, 1200(Typ)
NTSC 60%(Typ)
LCM Brightness 300cd/m²(Typ) 600cd/m²(Typ)
Interface SPI/RGB
Operating Temperature -20~+70℃
Storage Temperature -30~+80℃
