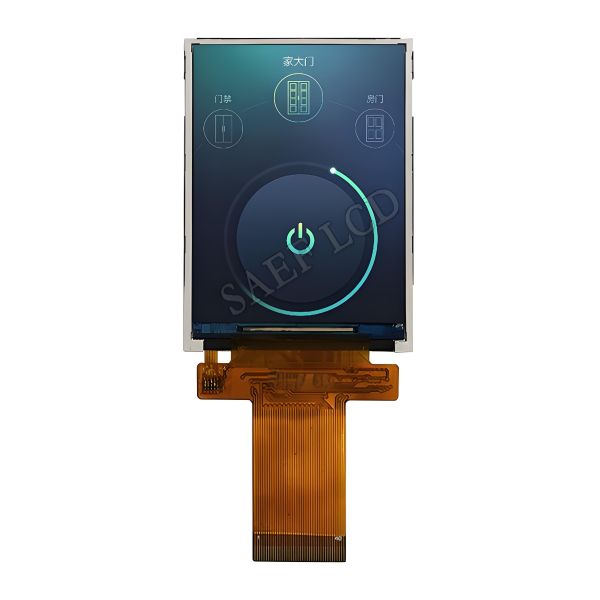

Capacitive Touch Panel 2.8 Inch IPS TFT LCD Display 240x320 For Industrial Control
Capacitive Touch Panel 2.8 Inch IPS TFT LCD Display 240x320 For Industrial Control
Capacitive Touch Panel 2.8 Inch IPS TFT LCD Display 240x320 For Industrial Control
Capacitive Touch Panel 2.8 Inch IPS TFT LCD Display 240x320 For Industrial Control
Specifications
Brand Name :
Jingtai
Model Number :
JT-2.8IPS
Certification :
ISO9001 / ISO14000
Place of Origin :
ShenZhen / China
MOQ :
5pcs
Price :
The most competitive price and the price is negotiable based on order quantity
Payment Terms :
T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability :
2000K pcs per month
Delivery Time :
1-5 weeks
Packaging Details :
Standard Exportation Package
Key Words :
2.8 Inch IPS
Resolution :
240*320
Display Mode :
IPS Full Viewing Angle
Luminance :
250cd/m²(Typ) 500cd/m²(Typ) 800cd/m²(Typ) 1000cd/m² (Typ)
Interface Definition :
MCU/SPI/RGB
Touch Screen :
CTP
CTP Interface :
12C
CTP Structure :
GF/GFF
Description
2.8 Inch TFT IPS LCD Display Screen
High-performance 2.8" IPS LCD display with excellent visibility and wide temperature range operation.
Key Features
  • High-quality IPS panel with full viewing angle
  • Multiple brightness options: 250cd/m², 500cd/m², 700cd/m²
  • Versatile interface support: MCU, SPI, RGB
  • Capacitive touch panel (CTP) with I2C interface
  • Compact module size: 48.7*68.85*2.07mm
Technical Specifications
Attribute Value
Resolution 240*320 pixels
Display Mode IPS Full Viewing Angle
Luminance 250cd/m² (Typ), 500cd/m² (Typ), 700cd/m² (Typ)
Interface MCU/SPI/RGB
Touch Screen CTP (Capacitive Touch Panel)
CTP Interface I2C
CTP Structure GF/GFF
Detailed Specifications
Application Industrial Control
Active Area 43.2*57.6mm
Aspect Ratio 4:3
Display Mode Normally Black
Viewing Angle (CR>10) 80/80/80/80 (Typ)
Contrast Ratio 1000 (MIN), 1200 (Typ)
NTSC 70% (Typ)
Operating Temperature -30℃ to +80℃
Storage Temperature -30℃ to +85℃
Industrial Applications
This high-performance 2.8" IPS LCD display is ideal for industrial control systems, offering excellent visibility, wide temperature range operation, and multiple interface options for seamless integration into various industrial applications.

2.8-Inch TFT LCD Screen, 240×320 IPS Type, SPI/RGB/MCU Serial Interface LCD Module

2.8-Inch TFT Screen

DESCRIPTION

The JT-2.8IPS is a 2.8-inch TFT-LCD module designed for portrait mode operation, featuring a resolution of 240 × 320 pixels. This LCD module incorporates the ST7789 driver IC and supports an SPI/MIPI/RGB/MCU interface. Its operating voltage (Vdd) ranges from 2.6V to 3.3V, with a typical value of 2.8V. The module has a 12 o’clock viewing direction and a contrast ratio 1000MIN, 1200 (Typ).

With a typical brightness of 250 nits, the JT-2.8IPSTW is a portrait-mode TFT-LCD suited for various applications. It can operate at temperatures from -20 °C to +70 °C, while its storage temperature range is from -30 °C to +80 °C.

2.8 inch IPS TFT Touch Display Module Drawing
