2.4 Inch TFT TN Industrial LCD Display Screen 240X320 Resolution SPI MCU RGB Interface
2.4 Inch TFT TN Industrial LCD Display Screen 240X320 Resolution SPI MCU RGB Interface
2.4 Inch TFT TN Industrial LCD Display Screen 240X320 Resolution SPI MCU RGB Interface
2.4 Inch TFT TN Industrial LCD Display Screen 240X320 Resolution SPI MCU RGB Interface
Specifications
Brand Name :
Jingtai
Model Number :
JT-2.4TN
Place of Origin :
Shenzhen/China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Delivery Time :
1-5 weeks
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
1-20
Key Words :
2.4 Inch TFT TN
Resolution :
240*320
Viewing Angle :
60/60/55/55
Luminance :
250cd/m²(Typ) 500cd/m²(Typ) 700cd/m²(Typ)
Interface Definition :
MCU/SPI/RGB
Touch Screen :
CTP
CTP Interface :
12C
CTP Structure :
GF/GFF
Description
2.4 Inch TFT TN Display Screen
High-performance TFT display designed for industrial control applications, featuring excellent visibility and multiple interface options.
Application Industrial Control
Number of pixels 240*320pixels
Active Area 36.72*48.96mm
Module Outline 42.72*59.46*2.56mm
Aspect Ratio 4:3
Display Mode Normally White
Viewing Angle(CR>10) 60/60/55/55(Typ)
Contrast Ratio 15(Typ)
NTSC 50%(Typ)
LCM Brightness 250cd/m²(Typ) 500cd/m²(Typ) 700cd/m²(Typ)
Interface MCU/SPI/RGB
Operating Temperature -20~+70℃
Storage Temperature -30~+80℃

2.4-Inch TFT TN LCD Display, 240×320 Pixels TFT LCD Display, SPI/MCU/RGB Interface TFT LCD Display

Low-Cost 2.4-Inch TN TFT LCD

Product Introduction

This 2.4-inch TFT TN display delivers clear image quality with a resolution of 240 × 320 pixels. Driven by the ST7789H2 controller IC, it supports multiple interfaces such as MCU, RGB and SPI. The model JT-2.4TN features multiple interfaces and achieves a brightness of 250 cd/m² (up to 700 cd/m²), enabling adaptability to various lighting environments. With an operating temperature range of -20 ℃ to +70 ℃ and a storage temperature range of -30 ℃ to +80 ℃, this display maintains reliable performance across diverse conditions and long-term storage.

The 2.4-inch TN TFT display is widely used in medical equipment, industrial control systems, smart home devices, and car navigation systems. Its high brightness (up to 700 nits) and strong contrast ensure clear visibility even in outdoor or direct sunlight environments. Low cost is a key advantage of the JT-2.4TN, making it an ideal choice for budget-conscious projects that require reliable display performance.

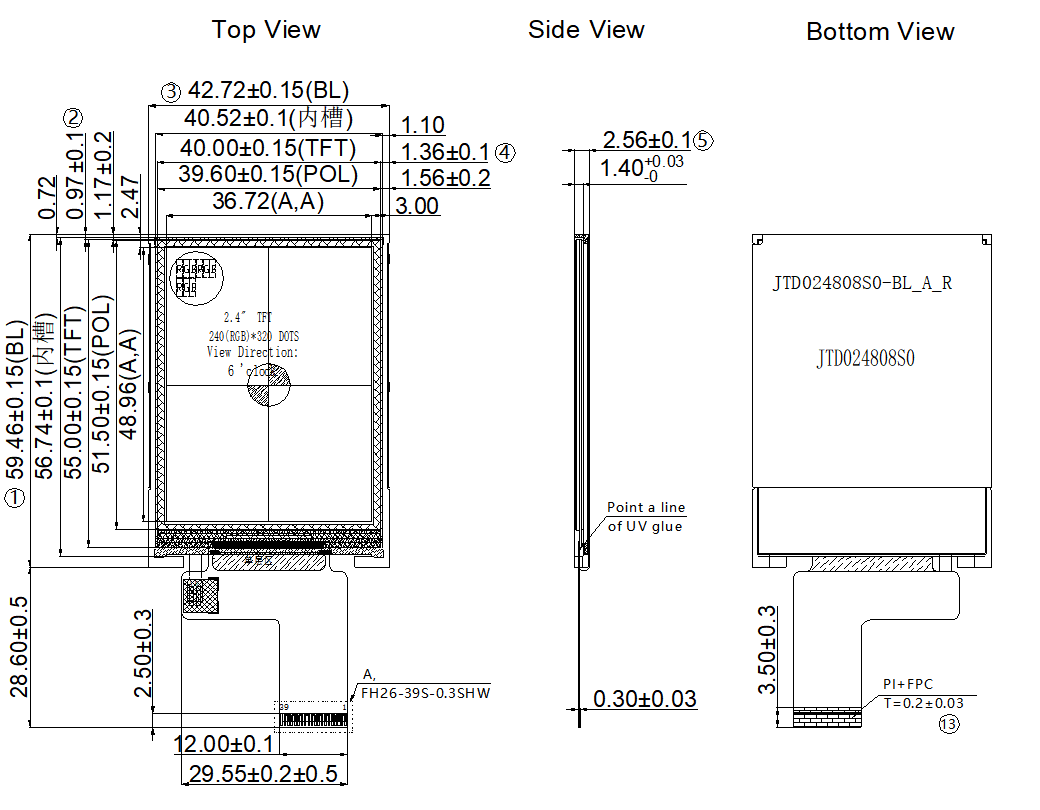

2.4 inch TN TFT 240*320 Touch Display Module Drawing

2.4 Inch TFT TN Industrial LCD Display Screen 240X320 Resolution SPI MCU RGB Interface

2.4 Inch TFT TN Industrial LCD Display Screen 240X320 Resolution SPI MCU RGB Interface

2.4 Inch TFT TN Industrial LCD Display Screen 240X320 Resolution SPI MCU RGB Interface
