Specifications
Brand Name :
Jingtai
Model Number :
JT-4.3IPSP
Place of Origin :
Shenzhen/China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/P,D/A
Delivery Time :
1-5 weeks
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
1-20
Key Words :
4.3 Inch IPS Portrait Vertical Screen
Resolution :
480*800
Display Mode :
IPS Full Viewing Angle
Luminance :
250cd/m²(Typ) 500cd/m²(Typ)
Interface Definition :
SPI+RGB/MIPI
Touch Screen :
CTP
CTP Interface :
12C
CTP Structure :
GF/GFF
Description
4.3 Inch IPS TFT Display Screen Vertical Screen
Product Overview

High-performance 4.3-inch IPS TFT display screen designed for industrial control applications, featuring vertical orientation and superior viewing characteristics.

Technical Specifications
Parameter Specification
Application Industrial Control
Number of pixels 480*800 pixels
Active Area 56.16*93.6mm
Module Outline 60.36*102.5*1.47mm
Aspect Ratio 16:9
Display Mode Normally Black
Viewing Angle (CR>10) 80/80/80/80 (Typ)
Contrast Ratio 1000 MIN, 1500 (Typ)
NTSC 70% (Typ)
LCM Brightness 250cd/m² (Typ) 500cd/m² (Typ)
Interface SPI+RGB/MIPI
Operating Temperature -20~+70℃
Storage Temperature -30~+80℃
Key Features
  • High-resolution 480×800 pixel IPS display
  • Wide 80° viewing angle from all directions
  • High contrast ratio up to 1500:1
  • Dual brightness options: 250cd/m² or 500cd/m²
  • Robust industrial temperature range operation
  • Flexible SPI+RGB/MIPI interface options

ST7701SN TFT LCD Display Module, 4.3-Inch TFT LCD Display Module, IPS TFT LCD Portrait Display Module

Capacitive Touchscreen TFT LCD Display Module, 4.3-Inch MIPI/SPI+RGB Interface

Product Quick Review

Model No.: JT-4.3IPSP

Resolution: 480 × 800 dots

Technology: IPS, wide viewing angles

Surface Brightness: 250 cd/m²

Driver IC: ST7701SN

Interface: SPI+RGB/MIPI

Touchscreen Type: Capacitive

Description

The JT-4.3IPSP is a 4.3-inch Portrait TFT-LCD display module with a resolution of 480 × 800 pixels and a brightness of 250 cd/m². It incorporates the ST7701SN controller IC and supports MIPI and SPI+RGB interfaces. The physical dimensions of the module are 60.36 mm (W) × 102.5 mm (H) × 1.47 mm (T), with an active display area measuring 56.16 mm (W) × 93.6 mm (H). The analog supply voltage range is 2.6V to 3.3V, with a typical operating voltage of 2.8V.

Featuring IPS technology, this display ensures clear and consistent visibility from wide viewing angles. The JT-4.3IPSP module supports an operating temperature range of -20°C to +70°C and can be stored within temperatures ranging from -30°C to +80°C.

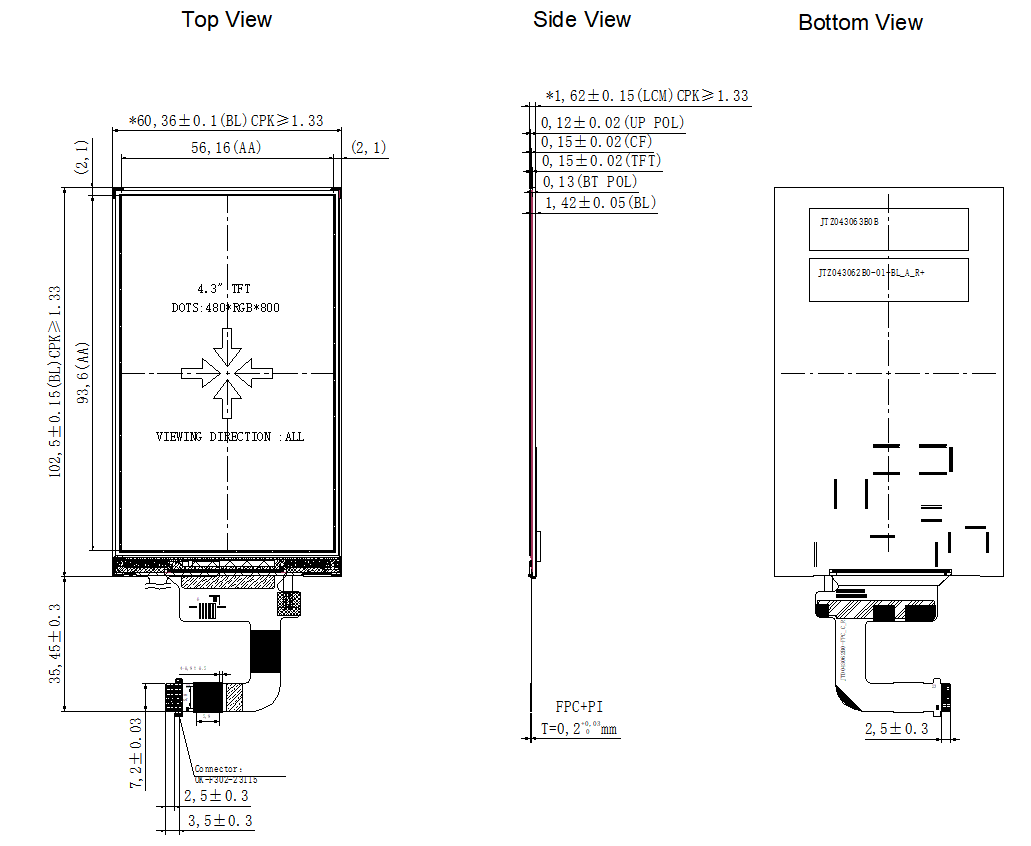

4.3 inch IPS 480*800 Portrait TFT Touch Display Module Drawing

Industrial Use 4.3 Inch IPS TFT Display Screen 480x800 Resolution 250cd/M2 Luminance

Industrial Use 4.3 Inch IPS TFT Display Screen 480x800 Resolution 250cd/M2 Luminance

Industrial Use 4.3 Inch IPS TFT Display Screen 480x800 Resolution 250cd/M2 Luminance

Maximum Absolute Limite

Item

 Symbol Value Unit
Power supply voltage for logic VDD 1.6~3.3 V
Input voltage Vin VDD+0.3 V
Operating temperature Topr -20 to 70 °C
Storage temperature Tstg -30 to 80 °C

Backlight Electrical-optical Characteristics

Item Symbol MIN TYP MAX UNIT

Test Condition

 Note
Supply Voltage Vf - 16 - V If=40 mA -
Supply Current If - 40 - mA - -
Reverse Voltage Vr - - 5 V -
Power dissipation Pd - - - mW -
Luminous Intensity for LCM

-

 250 - Cd/m2 If=40mA -
Uniformity for LCM - 80 - - ％ If=40 mA -
Backlight Color White
